Post29-09-2006, 7:15    Subject: Compressor Diagram 1.6L JR Turbo Quote
Hi,

Attached is the diagram of the standard Garrett blower.

Should also include a tuning stage for standard 1Z wastegates.


Best regards,
christian


 Description:

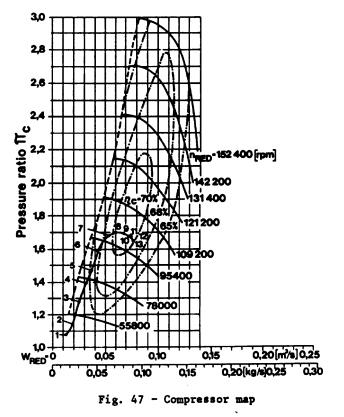

 Compressor Diagram 1.6L JR Turbo
 File size:  32.91 KB
 Viewed:  1462 times
