A4 B6 2,5 TDI 180 Ps BAU, Leistungsloch unter ca 2800 U/min | Posts 64+


Go to page: Previous  1, 2, 3, 4, 5
New Topic Reply 🔗 🖨 Dieselschrauber - Index » Diesel Engine Technology
Author Message
MrMcFly79
Blaumann
Blaumann


Joined: 06/19/2010
Posts: 145
Karma: +17 / -0   Thank you, like it!


Premium Support

Post03-06-2019, 15:46    Subject: Quote

Can I buy them individually? Do you have a link?
I thought it wouldn't be possible because they are vulcanized.
Back to top Profile PM
Rüdi
Profi-Schrauber
Profi-Schrauber


Joined: 03/05/2005
Posts: 1506
Karma: +641 / -0   Thank you, like it!
Location: Nord/Osthessen
2001 Audi A4 Avant
Premium Support

dieselschrauber likes this.
Post04-06-2019, 10:18    Subject: Quote

I don't have a link; I bought them in a small lot. I'll check if there's a part number on the packaging.
Sommer: A4 B5 Avant 2,5 TDI Quattro Facelift (AKN silber)

Wartet auf H Kennzeichen: A4 B5 Avant 1.9 TDI Quattro (AFN Schwarz)

Winter: A4 B5 Avant TDI Quattro (AFN rot)

Alltags Spardose: Audi A2 1.4 TDI (AMF Silber)
Back to top Profile PM Garage
dleds



Joined: 04/16/2014
Posts: 36
Karma: +11 / -1   Thank you, like it!


Premium Support

Post04-06-2019, 11:34    Subject: Quote

Okay, here's an idea from a different angle.

If the engine pulls "almost normally" or normally in the higher gears, I would initially rule out anything that is cylinder-specific. The compression, injectors, and camshaft have no idea that the engine is now in 6th gear. Therefore, it doesn't really make sense to look there, even though the engines are known to cause problems in that area.

What about the pressure side of the charger? Intercooler hose leaking, intercooler has a crack, etc.

That would explain it; there's a loss of charge air, which means there's less oxygen in the exhaust, and that, in turn, results in poorer throttle response.
Back to top Profile PM
MrMcFly79
Blaumann
Blaumann


Joined: 06/19/2010
Posts: 145
Karma: +17 / -0   Thank you, like it!


Premium Support

Post04-06-2019, 11:48    Subject: Quote

You're right, I could always try printing a test page.

"...however, the boost pressure and air mass are within the specified range, so a leak should be ruled out?"


Last edited on 04-06-2019, 11:51, edited 1 time in total.
Back to top Profile PM
dleds



Joined: 04/16/2014
Posts: 36
Karma: +11 / -1   Thank you, like it!


Premium Support

Post04-06-2019, 12:10    Subject: Quote

Does this problem also occur in the lower levels?

If the boost pressure is okay, what about the charge air temperatures?

Is it possible to detect "weather sensitivity"?
Back to top Profile PM
MrMcFly79
Blaumann
Blaumann


Joined: 06/19/2010
Posts: 145
Karma: +17 / -0   Thank you, like it!


Premium Support

Post04-06-2019, 12:21    Subject: Quote

Yes, the values are above the target values throughout the entire speed range. I haven't explicitly checked the temperature yet, but the problem is not weather-dependent.


Last edited on 04-06-2019, 12:25, edited 1 time in total.
Back to top Profile PM
dleds



Joined: 04/16/2014
Posts: 36
Karma: +11 / -1   Thank you, like it!


Premium Support

Post06-06-2019, 11:09    Subject: Quote

Then it would likely produce smoke or soot, and the exhaust would appear cloudy, if you accelerate in second gear while having air mass and boost pressure without generating power. Assuming, of course, that there are no errors in the system and that the injection start time, as you mentioned, is correct (which I assume is the case, since the problem only occurs in certain gears).
What are the fuel injection amounts at full acceleration in 2nd gear compared to 4th gear? They should be the same. If that is not the case, then it is necessary to determine which parameter is causing the reduction in the lower gears.
Back to top Profile PM
MrMcFly79
Blaumann
Blaumann


Joined: 06/19/2010
Posts: 145
Karma: +17 / -0   Thank you, like it!


Premium Support

dieselschrauber likes this.
Post28-06-2019, 0:18    Subject: Quote

Okay, so I've installed the new injectors. And sure enough, it now pulls much better from low RPMs and has more overall power. The acceleration from 2000 to 4000 RPM in 3rd gear has improved from 5.8 to 5.3 seconds.
Back to top Profile PM
MrMcFly79
Blaumann
Blaumann


Joined: 06/19/2010
Posts: 145
Karma: +17 / -0   Thank you, like it!


Premium Support

Post12-07-2019, 10:45    Subject: Quote

So, it seems the nozzles definitely have a higher flow rate.

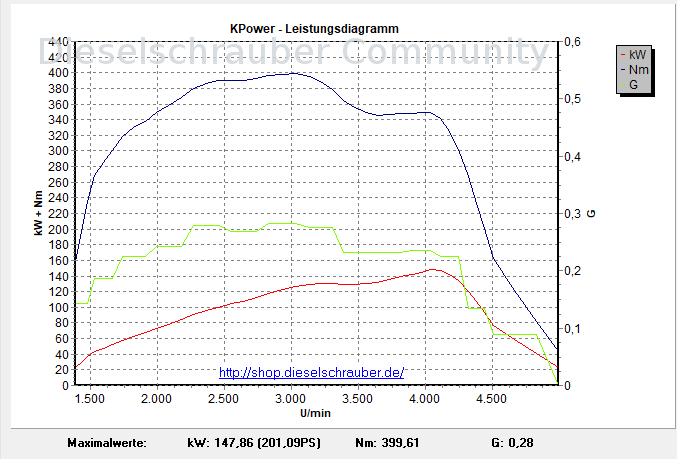

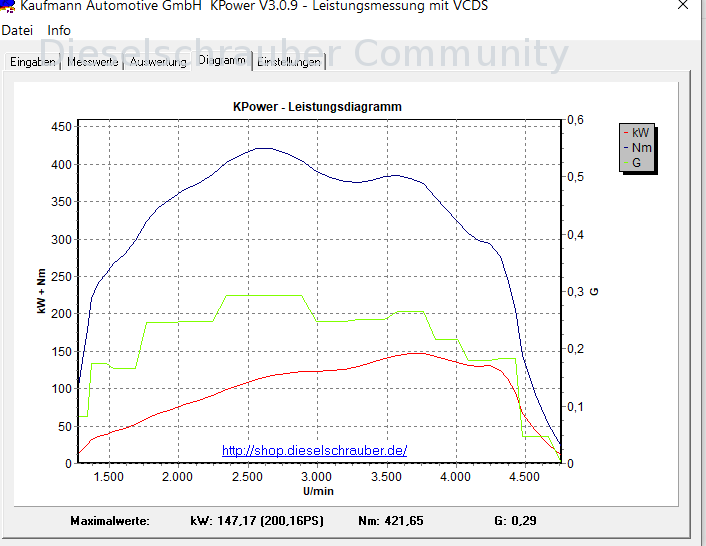

I also took some new K-Power measurements, covering the same route there and back.

The injectors installed are Firad DSLA142P1025, and according to Dieselsend and my research, these are the correct injectors for my engine.
Can someone shed some light on this?

Okay, I'm not upset about it. It accelerates really well. The slightest bit of smoke is only visible in the second gear at high RPMs under full load, and only in the rearview mirror.



 Description:

 File size:  18.47 KB
 Viewed:  240 times



 Description:

 File size:  22.14 KB
 Viewed:  203 times




Last edited on 12-07-2019, 10:49, edited 1 time in total.
Back to top Profile PM
