Dimensions GT17/BV43 Turbocharger Adapter

dieselschrauber

10-03-2013, 16:07

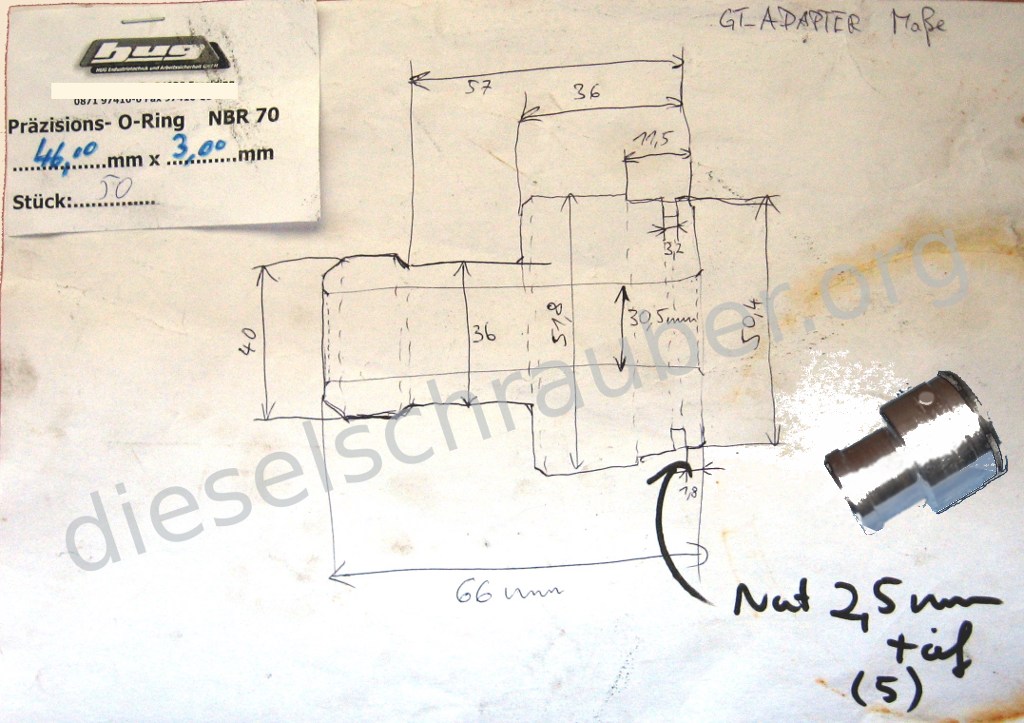

The following outline shows the dimensions for manufacturing an adapter for the common VAG TDI connection system for the intercooler hose, specifically for turbocharger types such as Garrett VNT15, GT17XX, and various KKK types such as the BV43 or BV39.


Description:

Adapter für Ladedruckschlauch an TDI Turbolader Stecksystem.

File size:

158.75 KB

Viewed:

10524 times

Dipl.-Ing. (FH) Rainer Kaufmann - dieselschrauber VCDS Shop

Last edited on 10-03-2013, 16:15, edited 2 times in total.
