Zero-tolerance for deviations in the steering angle of the G85 system in MQB vehicles. (Solution)

VCDS-Instruction: Calibration of Steering Angle Sensor (G85) for Vehicles on the MQB Platform

WARNING: Since safety-relevant parameters can be changed in this procedure, it should only be carried out by persons with the appropriate expertise or experience.

If the error code
[code]0295 - Steering Angle Sensor
B1168 54 [10001001] - No default setting
Warning light ON - confirmed - checked since last shutdown
"If the ESP/ABS system has been reset, a zero-calibration of the sensor is necessary."

Where can I find out if I have a MQB vehicle?
[code]Address 44: Steering Aid (J500) Label file DRV\5Q0-909-144.clb
Part Number SW: 3Q0 909 144 D HW: 3Q0 909 144 E
Part Number: EPS_MQB_ZFLS 502 5011
Data Record Number: 8V1909852A 0004
Encoding: 8103
Operating Number: WSC 06314 790 00021
ASAM Dataset: EV_SteerAssisMQB 009026
ROD: EV_SteerAssisMQB_009_VW37.rod


Procedure, Step 1: Sensor Calibration, Steering Angle Sensor
- Start the engine and let it run.
- Ensure the front wheels are precisely aligned in a straight direction.
- In VCDS control unit [44-Steering Assist] select
- [16-Access Right] with the code displayed in the VCDS tooltip
- Change to [Default setting - 04]
- [Display metrics] Select and mark the following metrics:

IDE02216-MAS03161 (Steering Angle Sensor: Initial Setting - Start)
IDE02216-IDE05795 (Steering Angle Sensor: Initial Setup - Stop Initial Setup)

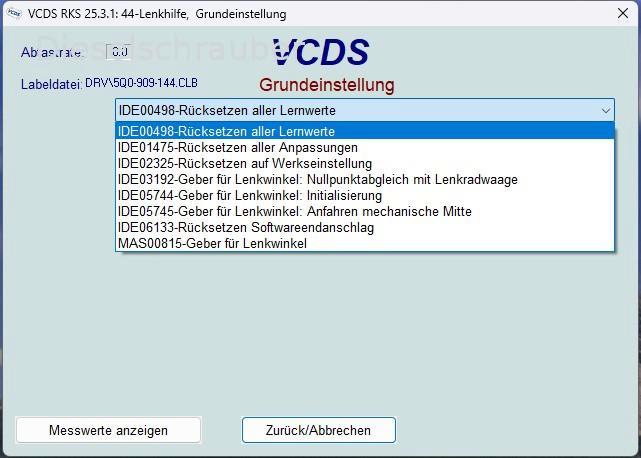

- Default setting [MAS00815] Select steering angle sensor and start with [Start!] → Display must show Running
- Steering wheel very slow (5-10°/s) until the rightmost end position is reached
- Turn the steering wheel very slowly until it reaches the leftmost end position
- Exactly return the steering wheel to the straight ahead position.
- Check the measurements:
- IDE02216-MAS03161 should display Allowed
- IDE02216-IDE05795 should display Completed
- Upon successful completion, Successfully completed will appear. Then press [Stop]


Possible Error Situations:
- The function is unknown or cannot be executed successfully: Security access failed or incorrect code
- Does the system appear to be ready: End-of-life detection not completed correctly
- No status changes allowed : In Progress / Completed: Steering movements too fast or not to the end stops.


Step 2: System Verification
- Turn the steering wheel to the rightmost end position.
- Turn the steering wheel to the left end stop.
- Return to straight ahead position exactly
- Check the yellow EPS warning light in the instrument cluster: MUST extinguish within 3 seconds!
- Turn off the engine
- Read and clear error codes from all relevant modules (especially 03 - Brakes and 44 - Power Steering)


Critical Success Factors:
- Battery voltage >12.5V throughout the entire procedure
- Precise alignment of the wheels at the beginning
- Max. Maintain steering wheel speed of 10°/s
- No interruption of the diagnostic connection


After successful calibration, the steering wheel center position should be achieved without warning lights and without any error messages.
