Post18-11-2016, 16:25    Subject: Broken sun visor clip for Audi, Seat, Skoda, VW Quote

The clip for the sun visor (sun visor clip, sun visor holder) in Audi, Seat, Skoda, and VW vehicles often breaks even without any external force.

Here's how to remove and replace the sun visor clip:
- Using a flathead screwdriver or a right-angle tool, alternately lift and remove the mounting frame of the clip from the front and back.
- The mounting bracket secures the actual sun visor clip using the two expansion pins. After removing the mounting bracket, the sun visor clip can be easily pulled out of the mounting holes.

The clips and frames are available in colors that match the interior design.

Example of a sun visor clip for Audi A3 8PA, part number 8E0 857 562 A.
The mounting bracket (which usually does not need to be replaced as it is reusable) has the part number 8E0 857 563 A.

P.S.: Attempts to repair it with super glue are not effective. "Clip copies" are available from East Asia, and they are very cheap compared to the original, but you need to be patient.

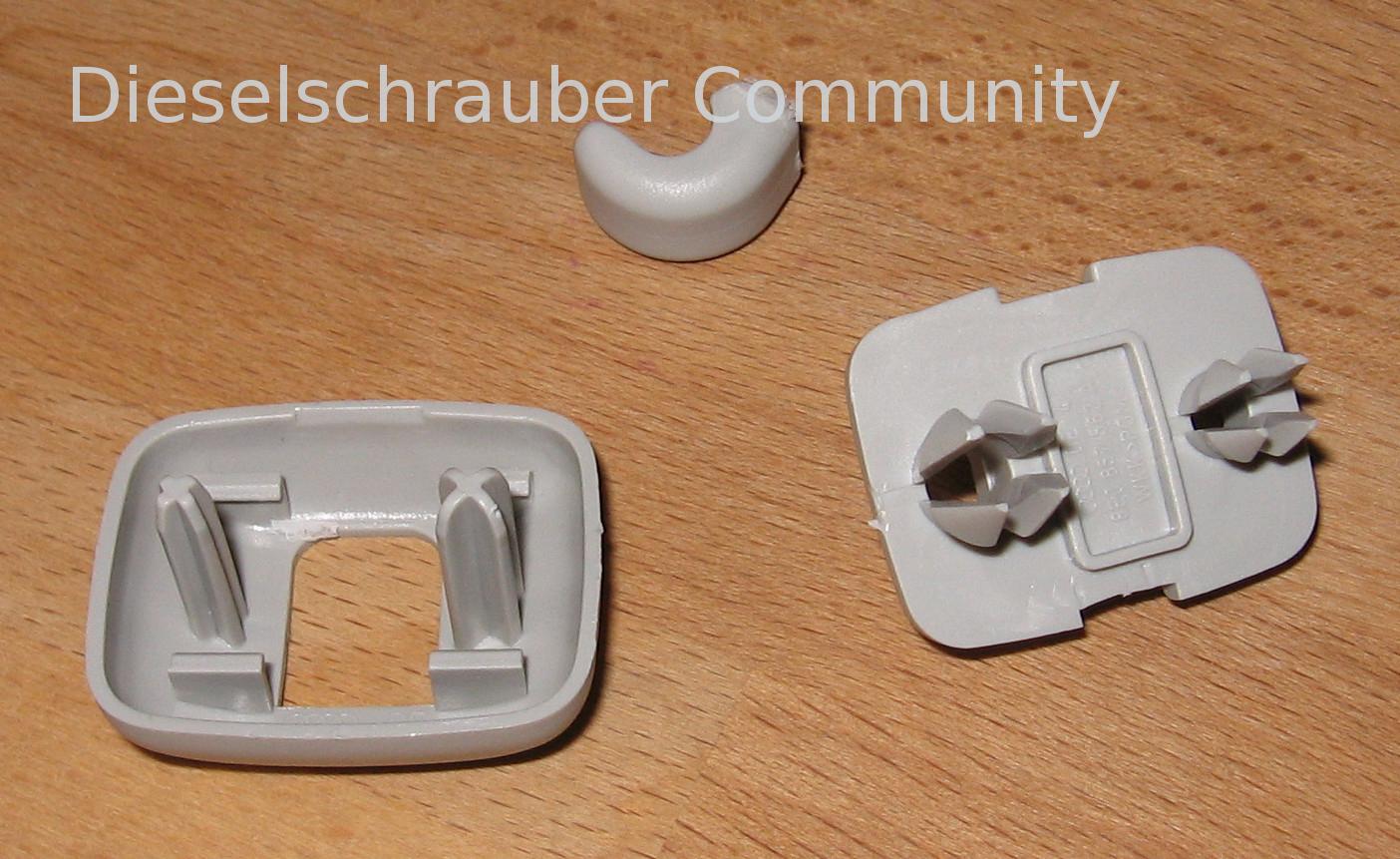

 Description:
 Broken sun visor clip for Audi, Seat, Skoda, VW
 File size:  355.77 KB
 Viewed:  835 times

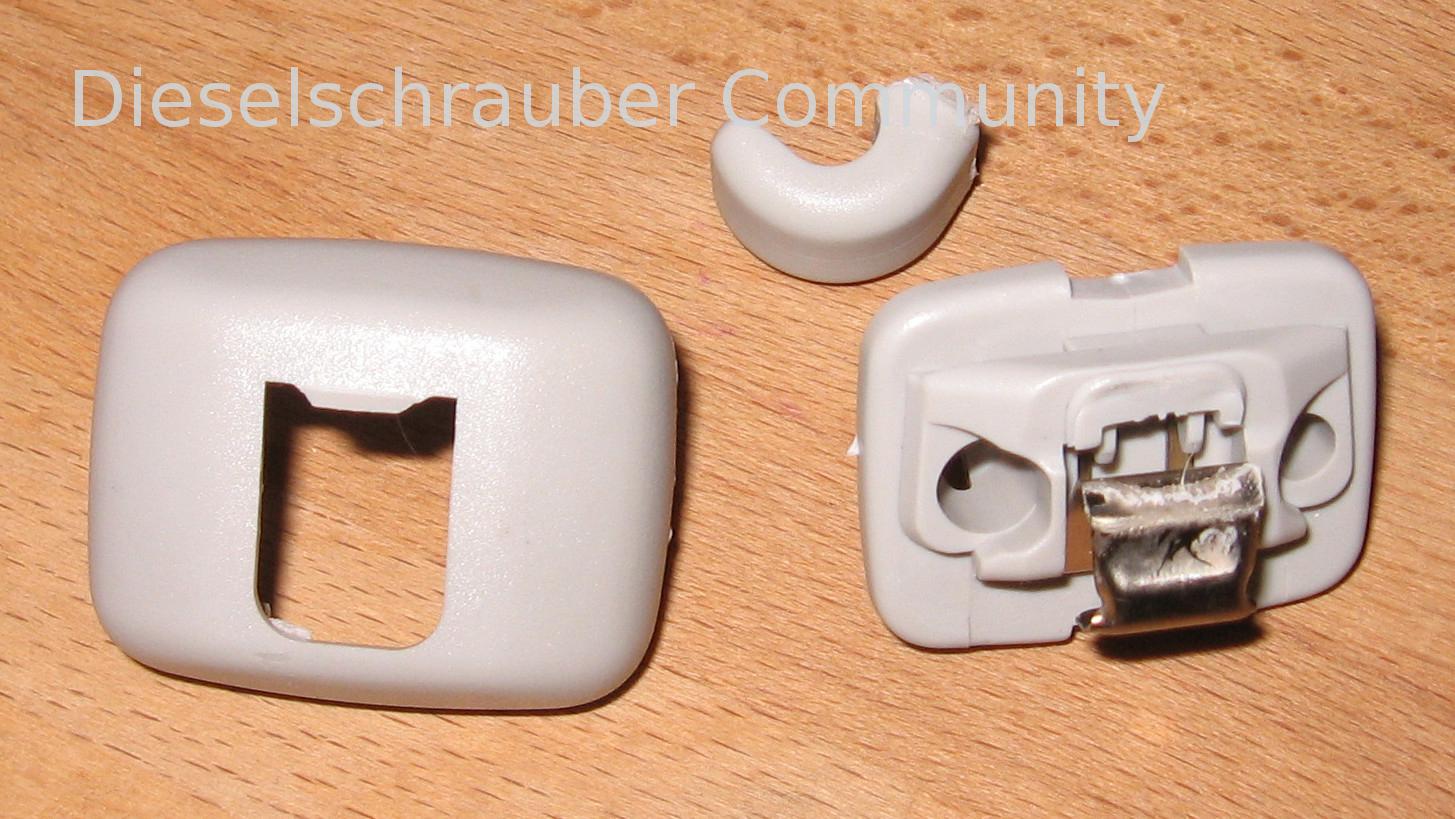

 Description:
 Broken sun visor clip for Audi, Seat, Skoda, VW
 File size:  343.52 KB
 Viewed:  1531 times
