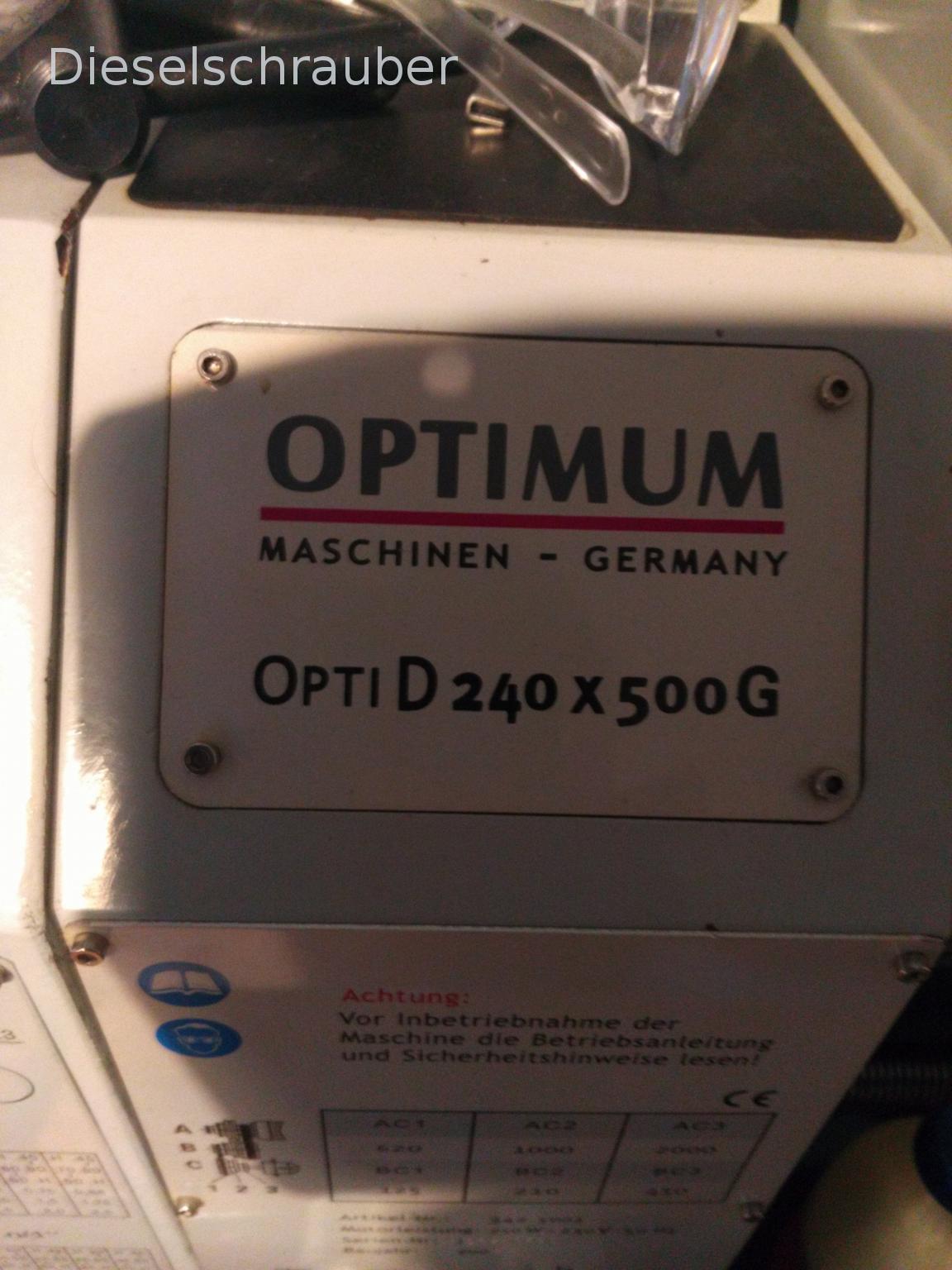

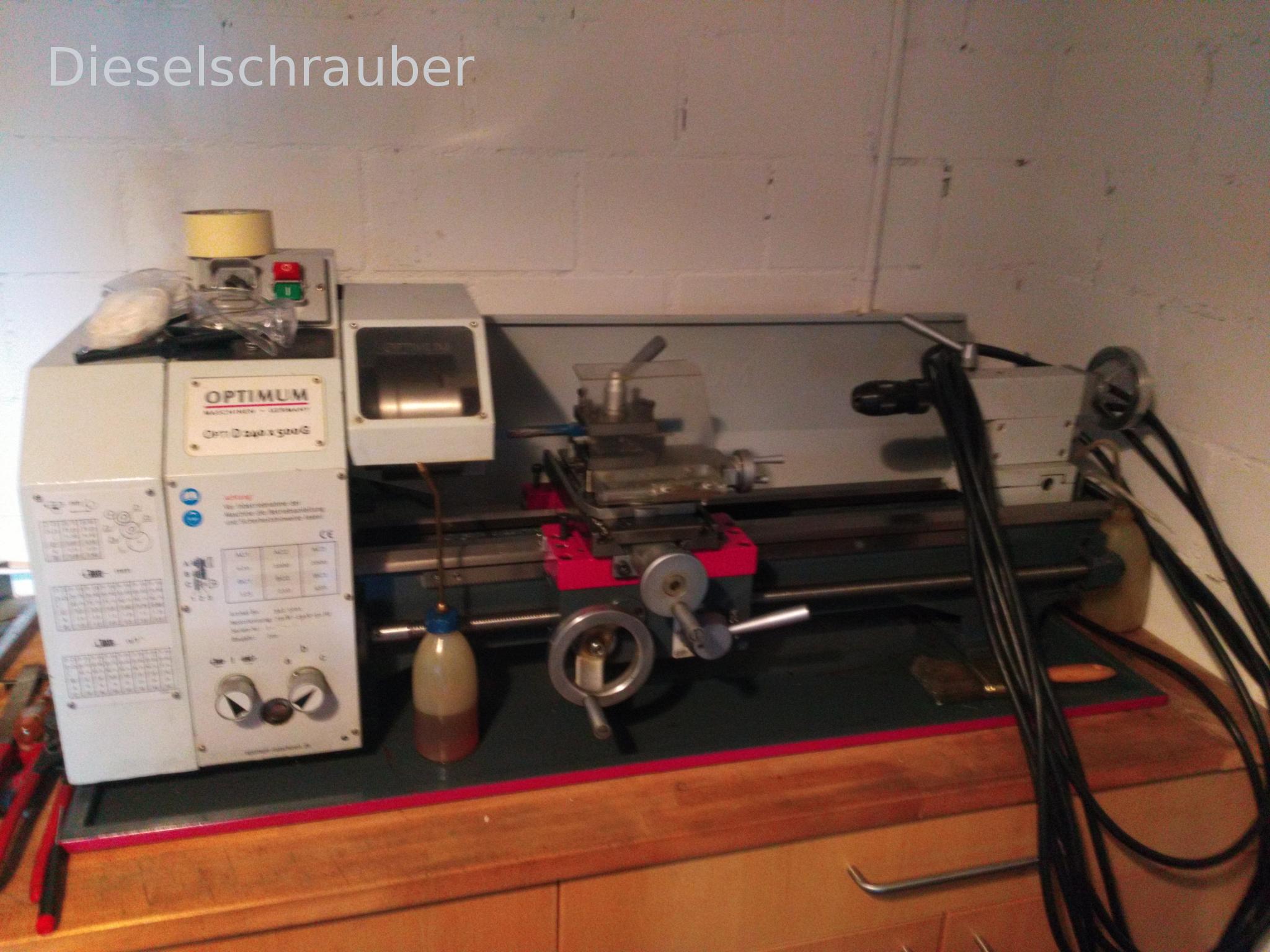

CNC lathe Optimum D240x500G for sale

For sale is an Optimum D 240x500G precision lathe, equipped with a powerful, continuously running 400V motor and
High-quality craftsmanship for professional demands.
The machine was used in Switzerland, connection via power plug for washing machine/dryer. So auch ohne dedizierten 400V Anschluss.
Of course, a standard 400V connection plug can be installed at any time.

Highlights:
- high-quality, powerful drive motor
- Robust, ribbed prism bed made of grey cast iron, induction-hardened and precision-ground for maximum stability
- Main spindle hardened and mounted in adjustable, precision tapered roller bearings (P5 quality)
- Guaranteed roundness accuracy < 0.009 mm
- Smooth-running gearbox with rounded gears, running smoothly in an oil bath
- Rolled Trapez Shafts and adjustable guides with chamfered edges
- Replacement cutting insert for a wide range of thread cutting
- Thread cutting spindle or automatic longitudinal turning
- Rapid changes in engine speed via a V-belt
- Direct control of forward/reverse motion directly from the control panel

Safety features: Emergency stop switch, Span protection on the upper carriage

Robust and precise construction – ideal for professional workshop or hobby use.

As requested, a sturdy, high-quality under-table with compartments will be provided as a stable base with many compartments and drawers.

Location: CH-9453 Eichberg

Inspection/Demonstration possible.

Negotiation Basis: 1500 CHF including VAT, which can be proven. The advantage of this lightly used machine is the truly high-quality 400V (1kW) three-phase motor.

Transport: A trailer is available. If you are not a leek, you can also carry the lathe with a partner (approximately 155kg).

Contact: PM or Email webmaster _AT_ dieselschrauber.org (_AT_ replace with the symbol and without spaces)
