16-10-2018, 20:21 Subject: Turbocharger Reconditioning 1.9 TDI ASZ

Hello everyone, and thank you for this great forum and the wonderful community.

Having had the opportunity to research and find valuable information here, I would like to share some of my knowledge and experiences in order to further enrich the forum.

The attached document (original creation) describes the repair of a turbocharger for the 1.9 TDI engine manufactured by the Volkswagen Group, featuring a pump-injector system and the engine code ASZ (96kW/130PS).

I would like to submit this document as a "technical article." Unfortunately, I am not familiar with the procedure for that.
I would be very grateful for a tip.

Best regards, toxic89.

18-10-2018, 20:23 Subject: Turbocharger Reconditioning 1.9 TDI ASZ

Hello,

nice. But how did you grow out of those running shoes?

Best regards, Rainer.

18-10-2018, 21:28 Subject: Turbocharger Reconditioning 1.9 TDI ASZ

Hello Rainer.
The supplied main body assembly consisted of a balanced unit comprising: a housing, a shaft with gears, and bearings. Balancing was not required.
Best regards, Kevin.

30-10-2018, 22:52 Subject: Turbocharger Reconditioning 1.9 TDI ASZ

Thank you very much! Is online: /viewtopic.php?t=30425

31-10-2018, 6:27 Subject: Turbocharger Reconditioning 1.9 TDI ASZ

Could you perhaps add something to illustrate that?
- an image of the integrated charger (hull assembly with both housings);
- how the hull assembly was disassembled;
hg
Herbert.

Last edited on 31-10-2018, 14:35, edited 1 time in total.

Hello Herbert.
Thank you for your suggestion.
Unfortunately, I didn't take many pictures of the repair process, and I also can't edit the post right now. This is likely only possible within 720 minutes of the topic's creation.

Regarding the image material:
- an image of the integrated charger (hull assembly with both housings):

You can find images of the complete turbocharger by using the search term "GT1749VA" in relevant search engines.

- how the hull assembly was disassembled.

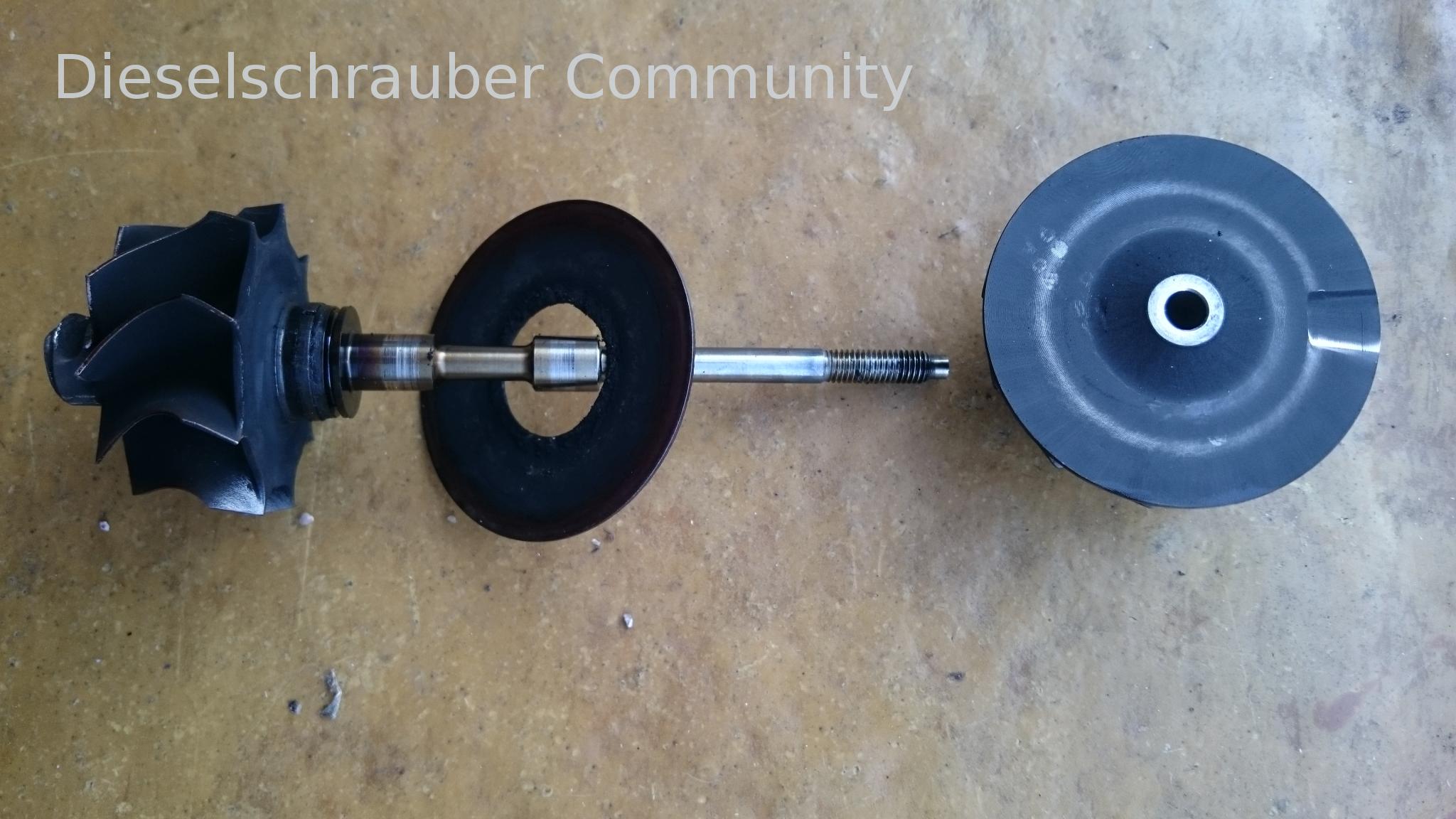

From the old hull assembly, I only removed the shaft to inspect the seal. The only noteworthy thing is that the shaft on the compressor side has a left-hand thread. After the motor has been removed, the shaft can be carefully extracted from the compressor wheel using gentle taps (with a rubber hammer).
The entire hull assembly was replaced for the repair. The new part was already fully assembled and balanced.

Best regards,
Kevin.

31-10-2018, 22:03 Subject: Turbocharger Reconditioning 1.9 TDI ASZ

No problem, go ahead and send the pictures over...

31-10-2018, 23:09 Subject: Turbocharger Reconditioning 1.9 TDI ASZ

Hello Rainer.

OK, thank you.

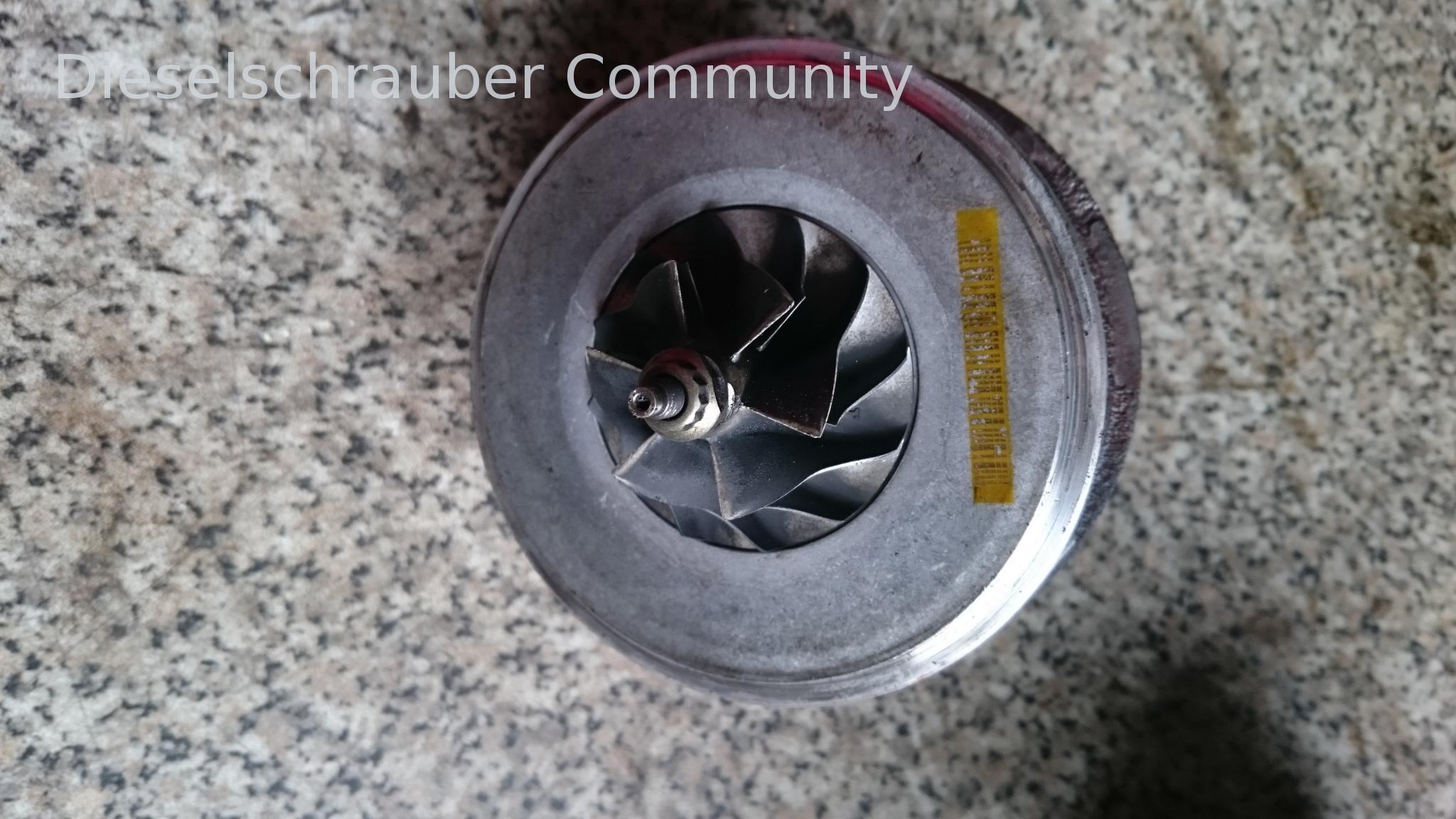

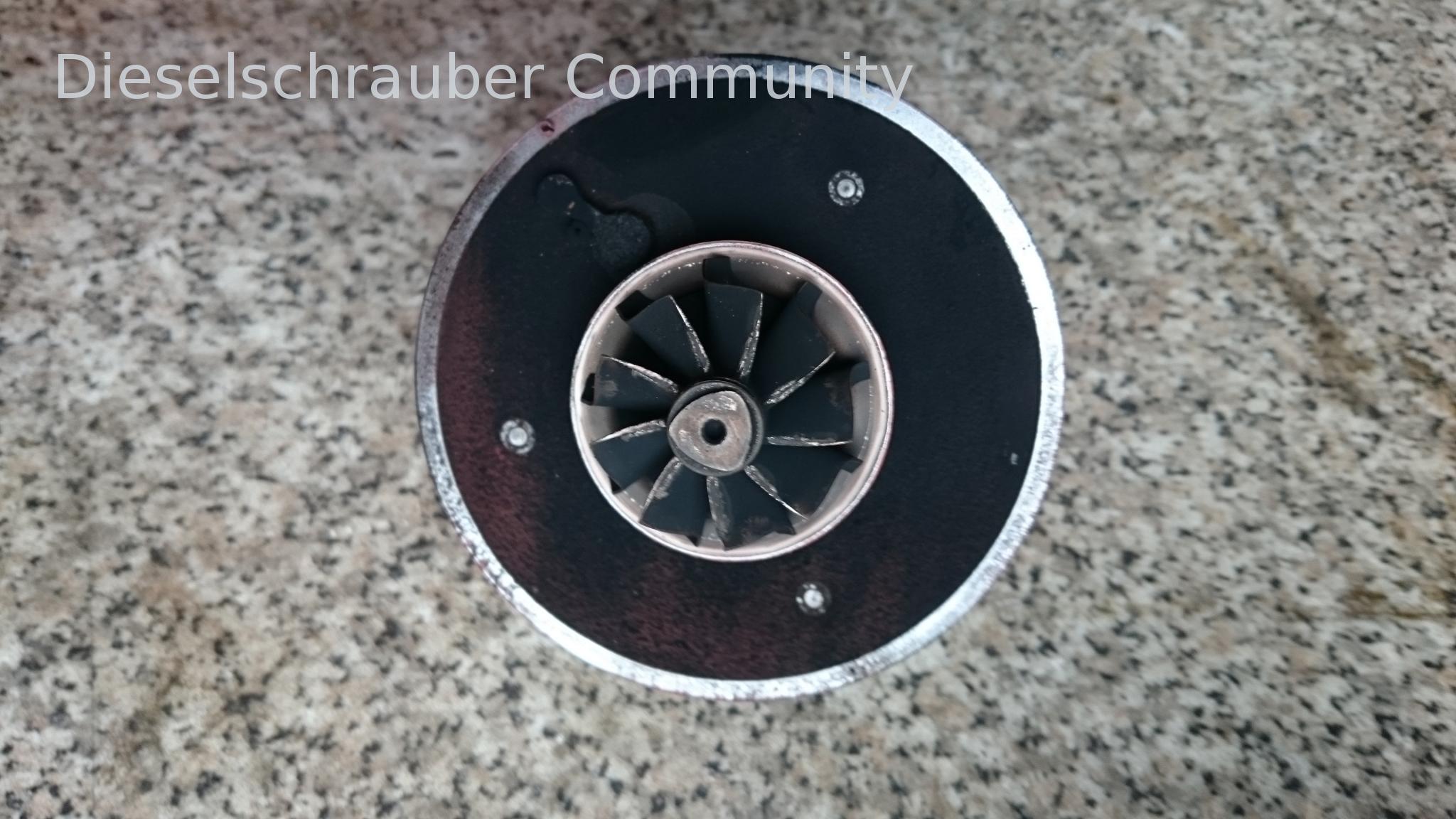

Attached are the pictures.

Best regards, Kevin.

01-11-2018, 11:07 Subject: Turbocharger Reconditioning 1.9 TDI ASZ

Thank you. Please respect the copyright. Are the remaining images really yours?

01-11-2018, 20:18 Subject: Turbocharger Reconditioning 1.9 TDI ASZ

Hello Rainer.
Thank you as well!
The last image (GT1749VA_mit_Detail_Rumpfgruppe.jpg) is not mine. I created one image from just two.
I had noted the source in square brackets...[Source: KS-Turbo, 10/2018]... or something similar.
However, in principle, you can also find these images online, even if they infringe on copyright.
Best regards,
Kevin.
