AFN läuft 5100 rpm bei 37% PWG wiso??? | Posts 16+


Go to page: Previous  1, 2, 3  Next
New Topic Reply 🔗 ⭐ 🖨 Dieselschrauber - Index » Diesel Engine Technology
Author Message
dieselmartin
Profi-Schrauber
Profi-Schrauber
Avatar-dieselmartin

Joined: 03/13/2003
Posts: 10121
Karma: +29 / -0   Thank you, like it!
Location: in der Werkstatt
2007 Volkswagen Passat
Premium Support

Post05-02-2004, 16:11    Subject: Quote

Okay.

I have a 1Z, but when I have the chance, I'll also log those values.

There should be a relatively flat section of road between M and RO, because if you only have to drive uphill, the readings will be quite distorted.

See you later.
m;


Translated on 27-10-2026, 1:10.
Back to top Profile PM Garage
ulf
Profi-Schrauber
Profi-Schrauber


Joined: 04/13/2002
Posts: 11058
Karma: +18 / -0   Thank you, like it!
Location: Saarland
2023 MG ZS
Premium Support

Post05-02-2004, 19:14    Subject: Quote

harix84 wrote:
I've noticed that too. I'll do a test run with the laptop this weekend and log the data, so you can get a better understanding of the problem.

Hi,

That's exactly the right approach.

The accelerator pedal map allows for high fuel injection rates even at low engine speeds with only slight pedal depression.
For example, at 37% throttle, the engine might already require 40 mg of fuel (~the maximum injection amount for an AFN engine) at 1500 rpm, but as the engine speed increases (above 3000 rpm), this amount is drastically reduced.

Pmax = 81 kW (which, approximately at 4000 rpm), is normally only reached at 100% gas.
If 37% were already sufficient, it's possible that adjustments were made to the driver's desired performance curve -> chip tuning icon_exclaim.gif.
Gruß Ulf
_________

MG4 Electric


Translated on 27-10-2026, 1:12.
Back to top Profile PM Garage
harix84
Blaumann
Blaumann


Joined: 11/03/2003
Posts: 20
Karma: +6 / -0   Thank you, like it!
Location: zwischen München & Rosenheim

Support

Post05-02-2004, 19:40    Subject: Quote

Hi,

To my knowledge, no chip tuning has been done on this vehicle, but that will be clarified during the test drive this weekend, hopefully icon_confused.gif.

Best regards, harix.


Translated on 27-10-2026, 1:13.
Back to top Profile PM
dieselmartin
Profi-Schrauber
Profi-Schrauber
Avatar-dieselmartin

Joined: 03/13/2003
Posts: 10121
Karma: +29 / -0   Thank you, like it!
Location: in der Werkstatt
2007 Volkswagen Passat
Premium Support

Post05-02-2004, 23:05    Subject: Quote

Now I understand.

G4 accelerator pedal with electronic module: 57 EUR.

G3 Throttle Position Sensor, 322 EUR.

Then I would also take the one from the G4, as long as it fits reasonably well!

m;


Translated on 27-10-2026, 1:14.
Back to top Profile PM Garage
dieselmartin
Profi-Schrauber
Profi-Schrauber
Avatar-dieselmartin

Joined: 03/13/2003
Posts: 10121
Karma: +29 / -0   Thank you, like it!
Location: in der Werkstatt
2007 Volkswagen Passat
Premium Support

Post06-02-2004, 0:42    Subject: Quote

Here's my log (as a graphic).

http://www.luxus-wg.de/~martin/auto_bilder/gas_emenge.gif

At first, I really pushed the car (up to the 5th gear) without giving it any gas.

As you can see, the EDC releases 27 mg/H to avoid being "swallowed" (meaning not running at full throttle, as Ulf mentioned - but perhaps his AFN is more aggressive icon_smile.gif).

m;


Translated on 27-10-2026, 1:14.
Back to top Profile PM Garage
dieter
Profi-Schrauber
Profi-Schrauber


Joined: 01/27/2003
Posts: 270
Karma: +13 / -0   Thank you, like it!
Location: LK Uelzen

Support

Post06-02-2004, 8:55    Subject: Quote

Hi there,

Quote:
G4 accelerator pedal with electronic module, 57 EUR.

G3 sensor, accelerator pedal position, 322 EUR


That's another great example of Volkswagen's transparent pricing.
How nice that I still have a spare one lying around.

@martin
If you're serious about finding a replacement JX, don't buy one that's working perfectly. It's best to get one that's already broken. You'll need quite a few parts from it for the conversion.

greetings
dieter


Translated on 27-10-2026, 1:16.
Back to top Profile PM
harix84
Blaumann
Blaumann


Joined: 11/03/2003
Posts: 20
Karma: +6 / -0   Thank you, like it!
Location: zwischen München & Rosenheim

Support

Post07-02-2004, 0:21    Subject: Quote

Hi,

I have completed the test drive, and the log file is now located in the "My Documents" folder on the following Yahoo account:

http://de.briefcase.yahoo.com
ID: harix84
PW: 123456

In the last few lines of the log file, you'll notice how the engine kept running, even after I turned off the ignition. I could only stop it by putting it in gear and engaging the clutch.
Der Motor ist schon seit einem Jahr in der Doka und bis jetzt ist mir sowas noch nie passiert, allerdings habe ich den Motor bis auf heute noch nie bis zur Abregeldrehzahl ausgefahren. Getestet wurde im 3. Full throttle.

The log file isn't very informative because the test track wasn't level, but despite that, it was enjoyable.
If possible, I will conduct another test on a flat surface, because I had the scaffolding removed and I still need to check if the engine is working properly.


Best regards, harix84.


Translated on 27-10-2026, 1:17.
Back to top Profile PM
dieselschrauber
Administrator
Administrator
Avatar-dieselschrauber

Joined: 04/12/2002
Posts: 18135
Karma: +804 / -0   Thank you, like it!
Location: St.Gallen
2018 Volkswagen T6 Consumption


Post08-02-2004, 18:43    Subject: Quote

What is your oil consumption?


Translated on 27-10-2026, 1:18.
Back to top Profile PM WWW Garage
harix84
Blaumann
Blaumann


Joined: 11/03/2003
Posts: 20
Karma: +6 / -0   Thank you, like it!
Location: zwischen München & Rosenheim

Support

Post09-02-2004, 20:51    Subject: Quote

Hi.

The oil consumption is 0.5 liters per 2000 kilometers.

But what does the oil consumption have to do with my problem? I don't understand the connection.

Best regards, harix84.


Translated on 27-10-2026, 1:18.
Back to top Profile PM
dieselmartin
Profi-Schrauber
Profi-Schrauber
Avatar-dieselmartin

Joined: 03/13/2003
Posts: 10121
Karma: +29 / -0   Thank you, like it!
Location: in der Werkstatt
2007 Volkswagen Passat
Premium Support

Post09-02-2004, 22:11    Subject: Quote

I don't know if that's what Rainer was trying to say, but:

A diesel engine runs using its own engine oil.

In the worst-case scenario, the car suddenly starts "running wild." If you then instinctively press the clutch pedal, the engine will rev up uncontrollably and essentially "explode" – resulting in serious engine damage. The only chance to save the engine in that situation is to stall it by using the brakes.
That's all there is to say about the "scare theory."

But it could also be less bad, and so much oil mist could accumulate in the intake manifold that the engine gets an extra "boost" as a result.

m;


Translated on 27-10-2026, 1:19.
Back to top Profile PM Garage
harix84
Blaumann
Blaumann


Joined: 11/03/2003
Posts: 20
Karma: +6 / -0   Thank you, like it!
Location: zwischen München & Rosenheim

Support

Post09-02-2004, 23:26    Subject: Quote

Hi.

Thank you for the tip!

It's quite possible that the oil accumulated in the intake manifold at 5000 RPM and was drawn in, because normally I drive at 3000 RPM, with a maximum of 3400 RPM. At those speeds, the oil accumulates but isn't carried away. Furthermore, the fact that the engine was getting weaker before I stalled it, as if it was running out of oil, also supports this theory.

The next day, the engine ran perfectly again, without any problems. However, I avoided driving it again, because I certainly didn't want it to happen a second time, especially since I didn't know what was causing it.
However, I believe the problem is solved by drawing in oil.

Thank you, one less worry icon_smile.gif.

Best regards, harix84.


Translated on 27-10-2026, 1:21.
Back to top Profile PM
dieter
Profi-Schrauber
Profi-Schrauber


Joined: 01/27/2003
Posts: 270
Karma: +13 / -0   Thank you, like it!
Location: LK Uelzen

Support

Post10-02-2004, 8:52    Subject: Quote

Hi there,

How much oil did you put in? If you used the original dipstick, there's too much in there. The maximum fill amount is 4.5 liters, just like in the JX model.

Greetings.
dieter
T3 syncro 16 AFN
- steckenbleiben, wo keiner hin kommt -


Translated on 27-10-2026, 1:22.
Back to top Profile PM
dieselschrauber
Administrator
Administrator
Avatar-dieselschrauber

Joined: 04/12/2002
Posts: 18135
Karma: +804 / -0   Thank you, like it!
Location: St.Gallen
2018 Volkswagen T6 Consumption


Post10-02-2004, 10:16    Subject: Quote

Quote:
A diesel engine also runs with its own engine oil!!

Yes, that's what I meant. Depending on how dense the oil mist is and how well it's mixed, it can already generate a few extra horsepower.
"However, it smokes quite a bit when that happens, so Harix should definitely be able to see it in his rearview mirror..."

Has there been any logging with the fuel injection amounts?
Edit: I just tried to open the Yahoo folder and log in, but the Yahoo server is currently undergoing maintenance...

Best regards, Rainer.


Translated on 27-10-2026, 1:23.
Back to top Profile PM WWW Garage
harix84
Blaumann
Blaumann


Joined: 11/03/2003
Posts: 20
Karma: +6 / -0   Thank you, like it!
Location: zwischen München & Rosenheim

Support

Post10-02-2004, 16:25    Subject: Quote

Hi.

@dieterViewing profile: dieter
The oil level is fine; I installed the original dipstick from JX.

@Rainer
The Yahoo server is working for me again (as of now), I just tested it.
I can't say for sure if it was smoking, as it was nighttime and I didn't happen to look in the rearview mirror at that moment. When I drive normally, it doesn't smoke.

Best regards, harix84.


Translated on 27-10-2026, 1:25.
Back to top Profile PM
dieter
Profi-Schrauber
Profi-Schrauber


Joined: 01/27/2003
Posts: 270
Karma: +13 / -0   Thank you, like it!
Location: LK Uelzen

Support

Post10-02-2004, 17:19    Subject: Quote

I just took a look at your logs.

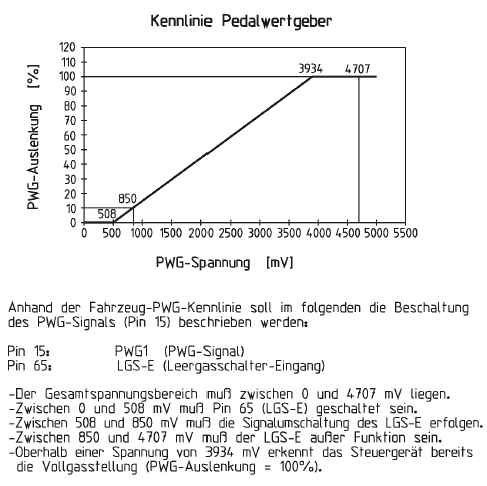

Have you ever floored it? The maximum is just over 60%, but the system recognizes 100% pedal input at 84% pedal travel, and that should be reflected in the log; otherwise, something is wrong.
Either you're not reaching the full range of motion mechanically, or there's something wrong with your electrical system.
To test this, the engine doesn't need to be running; just turning the ignition on is sufficient.

If everything seems mechanically okay, you can try measuring the voltages (at the sensor pins).
Pin 57: Sensor power supply: 4.7-5.2 V.
Pin 15: Pedal position sensor input, see characteristic curve.

greetings
dieter



 Description:
 PWG-Kennlinie
 File size:  28.68 KB
 Viewed:  758 times


T3 syncro 16 AFN
- steckenbleiben, wo keiner hin kommt -


Translated on 27-10-2026, 1:26.
Back to top Profile PM
harix84
Blaumann
Blaumann


Joined: 11/03/2003
Posts: 20
Karma: +6 / -0   Thank you, like it!
Location: zwischen München & Rosenheim

Support

Post10-02-2004, 18:21    Subject: Quote

Hi Dieter.

I'm reaching the full travel mechanically, and the control unit recognizes that the pedal is at 100% even when the ignition is on but the engine is off. So, everything should be fine with the accelerator pedal sensor (throttle position sensor). Therefore, the only remaining possibility is that the control unit is misinterpreting the data from the accelerator pedal sensor.
The 60% that the system recognizes is correct, as it corresponds to the mechanical pedal travel.

I'm going to try to get a second one and see if it behaves the same way.

PS: Can anyone tell me how to convert a *.csv file into a proper *.xls file, so that analyzing the log file isn't such a hassle?
Okay, here's the translation:

Thank you.

Best regards, harix84.


Translated on 27-10-2026, 1:28.
Back to top Profile PM
