PIN Assignment Comfort Control Unit

Hello,

I installed the 1C0 959 799F comfort control module. This module is integrated into the comfort CAN bus of the Passat and transmits data to the instrument cluster (IC) regarding open doors, etc.

Menem Leon is missing the wiring from connector 1C0 to connector KI (green connector, pins 8/9).
I would now like to implement this myself and try to feed the data about open doors, etc. via CAN bus.

Does anyone know where I can 'tap into' the lines on the 1C0?

Best regards,

T29/8 = CAN Comfort High.
T29/27 = CAN-KOmfort Low.

Thank you .

BUT I just found something else... so what's the right fit for me now?

'1C0 959 799F Comfort System Control Unit for a New Beetle 02-'.
J393

T23 pin 9 = CAN-High.
T23 pin 6 = CAN-Low.

Just check if you have a 23-pin or a 29-pin connector. Then you can answer the question yourself!

Regards,
Sure, here's the translation:

"Guste" is a German word that means "gust" or "gust of wind." It can also be used to describe a sudden burst of something, such as laughter or anger.

The central control units with 23 pins are for vehicles WITHOUT electric folding mirrors (eFH), while the comfort control units with 29 pins are for vehicles WITH electric folding mirrors (eFH).

So, if you read the SLP correctly, you can see that.

all clear, thank you... therefore, should I get a T29 ?

Yep, that was the reason why I posted that above.

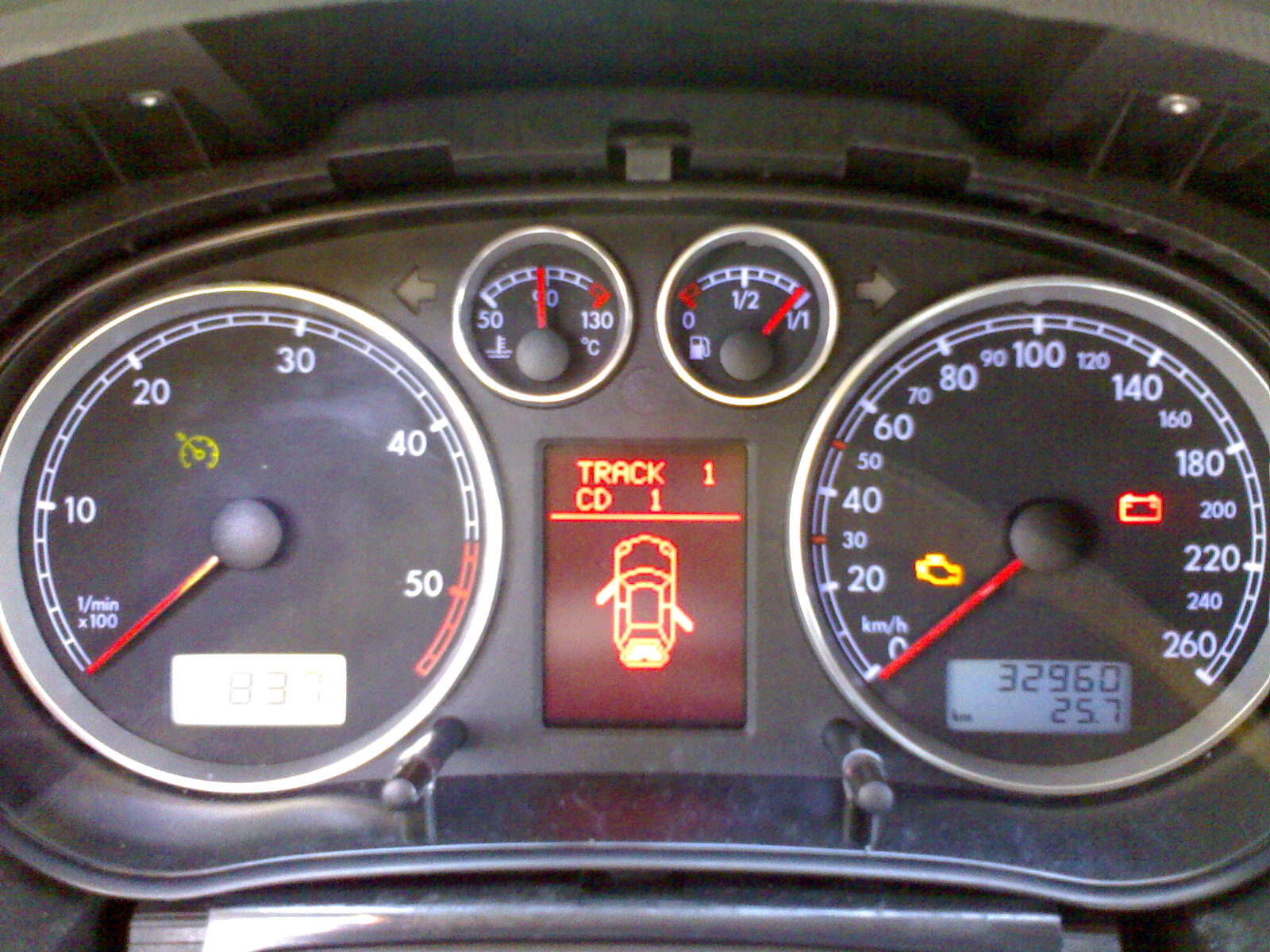

Okay, I've now connected it, and it's working great... but I only had the T23 connector .
