Post14-12-2010, 13:06    Subject: Resolution: "Crack in BKD cylinder head" Quote

As you can see in the pictures, cylinder heads from 16V TDI engines can also crack in a way that causes the exhaust side to become completely flooded with water.
That's why the diagnosis with a removed intake manifold is not always correct. I hope this helps other mechanics with troubleshooting and that this potential issue is also taken into consideration.



 Description:

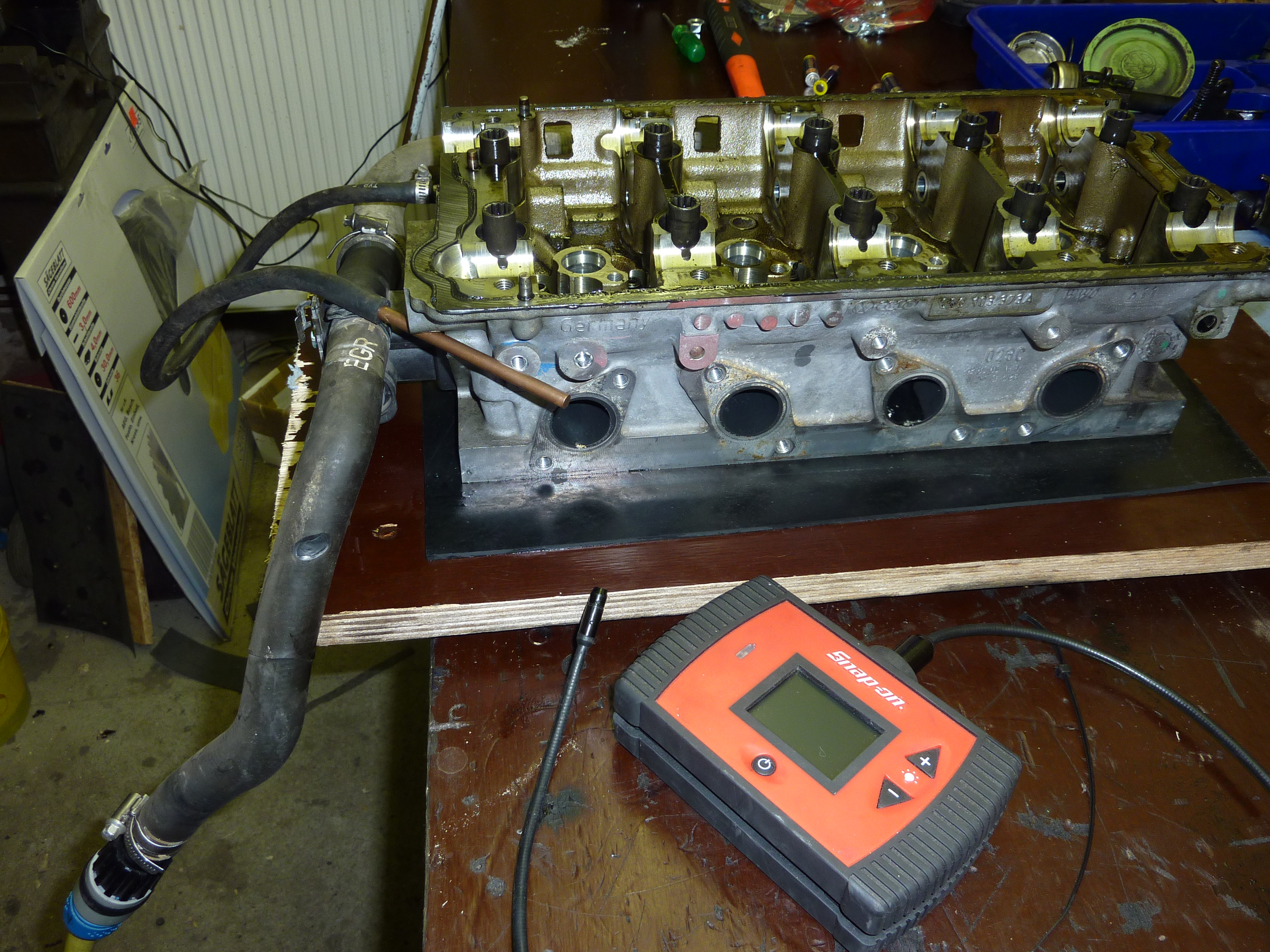

 Aufbau zum Abdrücken des Zylinderkopf (BKD, 16V TDI)
Aufbau zum Abdrücken des Zylinderkopf (BKD, 16V TDI)
Download
 File name:  P1000633.JPG
 File size:  5.65 MB
 Downloaded:  4939 times

 Description:

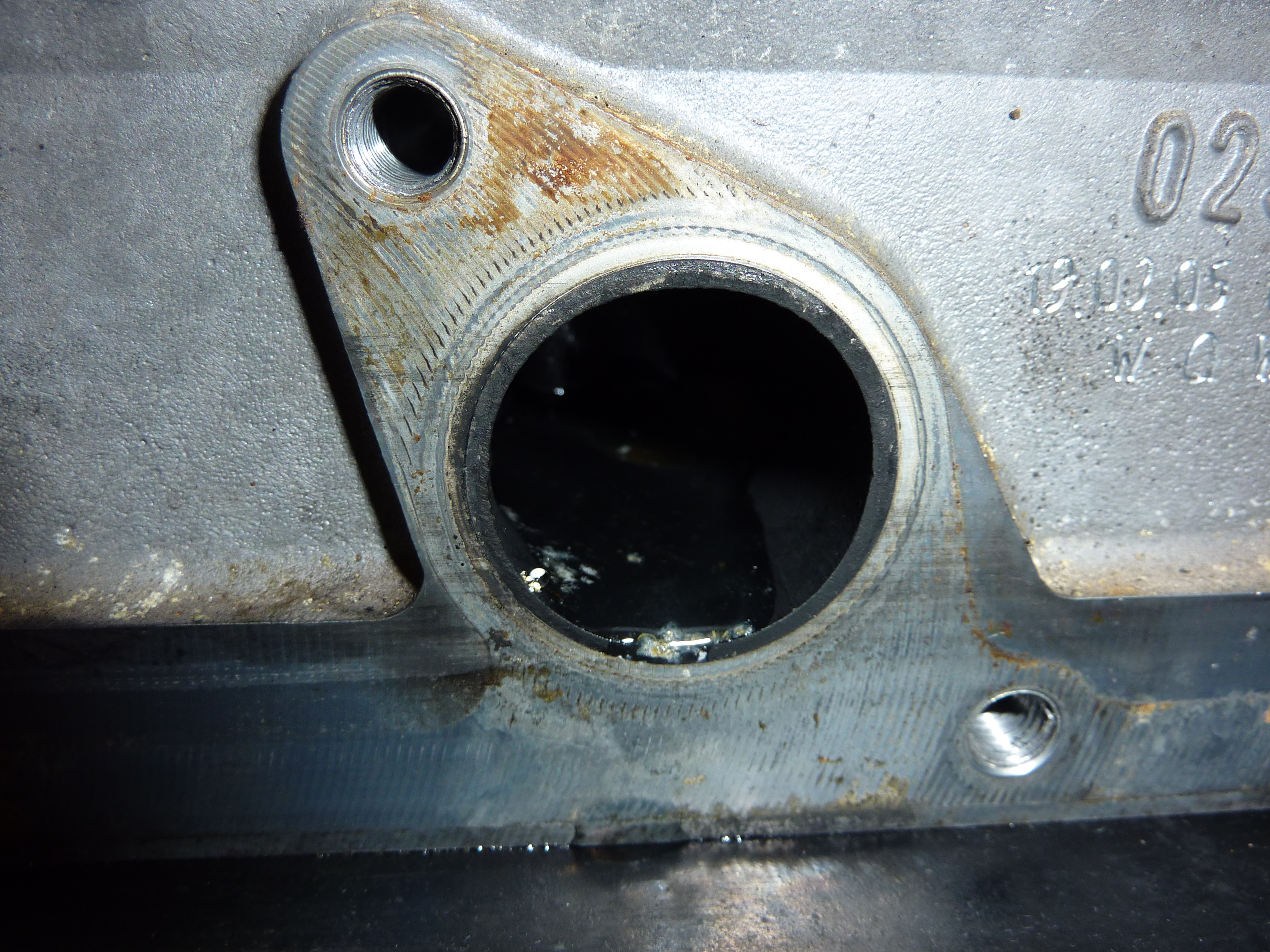

 2.Zylinder auslaßseitig undicht, Kühlmittelverlust im Zylinderkopf (BKD, 16V TDI)
2.Zylinder auslaßseitig undicht, Kühlmittelverlust im Zylinderkopf (BKD, 16V TDI)
Download
 File name:  P1000631.JPG
 File size:  5.54 MB
 Downloaded:  4122 times
