Audi A4 8k conversion to xenon headlights

Hello, I converted the headlights on my Audi A4 8K (year 2014) from halogen to xenon with adaptive lighting. Now I have two problems: The "Adaptive Light defective" message is displayed in the FIS (Multi-Function Display), and there are error codes stored in the diagnostic system.

Address 09: Central Electronics (J519)
Label file: .DRV8K0-907-063.clb
Part number SW: 8K0 907 063 DJ. Part number HW: 8K0 907 063 AJ.
Component: BCM1 1.0 H14 0103
Revision: 09014001 Serial Number: 00000004516901
Encoding: 260000108034AFC00081400300001D0D0C1C470826090301000008004401000200020024000000
Operating number: WSC 19728 136 00001
VCID: 7AAC00370CD57787D01-802E

Subsystem 1 - Part number SW: 8K1 955 119 B, HW: 8K1 955 119 B, Label file: DRV1KX-955-119.CLB.
Component: MITSUBA100414 H18 0461
Serial number: 1404070708925
Encoding: 004577

Subsystem 2 - Part number SW: 8U0 955 559 C, HW: 8U0 955 559 B, Label file: DRV8U0-955-559.CLB.
Component: G397_RLFS H06 0004
Serial number: 60893274
Encoding: 02005D

Subsystem 3 - Part number SW: 8K0 941 531 BC, HW: 8K0 941 531 BC.
Component: E1 - LDS H03 0031
Serial number: 00000000000512091037

Subsystem 4 - Part number SW: 8K5 941 329, HW: 8K5 941 329.
H01 0031

Subsystem 5 - Part number SW: 8K5 941 329, HW: 8K5 941 329.
H01 0031

Subsystem 6 - Part number SW: 4G0 907 658 A, HW: 4G0 907 658 A.
Component: Humidity Sensor H03 0002
Serial number: 78884927000000000001.

2 error codes found:
01312 - Data bus for drive system.
004 - No signal/communication.
Environmental conditions:
Error status: 01100100
Error priority: 3
Error frequency: 1
Lost Counter: 128
Mileage: 136,337 km
Time: 0
Date: 2018.11.04
Time: 12:49:23

Here are the parts I installed:

Headlights with adaptive cornering light 8K0941031C / 8K0941032C.

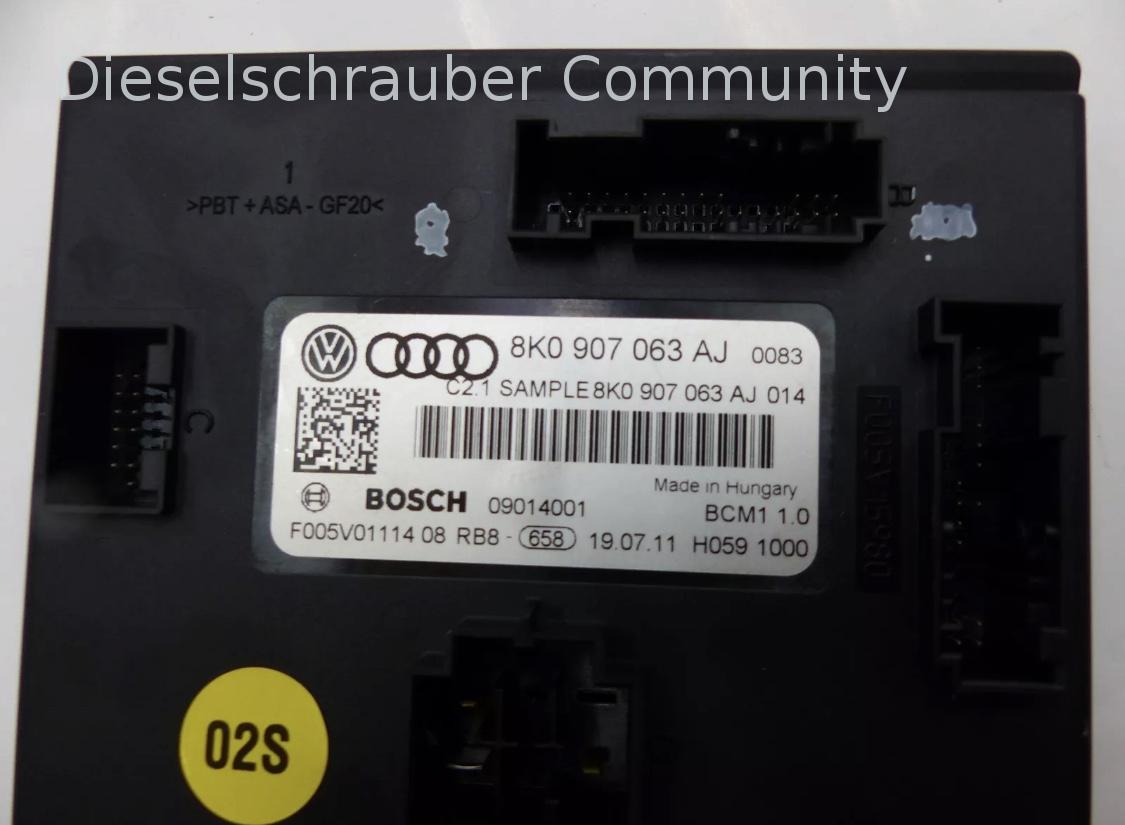

Body control module with xenon headlights and adaptive cornering lights, part number 8k0907063AJ.
Rear and front level sensor: 8k0941309F / 8k0941285P.
Cables and adapters from Kufatec.


"Light and everything else except for the two errors mentioned above – can anyone help me with that?"

Best regards and thank you.

First, I would make sure that the cable or adapter set:

- is okay.
- is wired exactly like the original ones

.

Your error message looks like it's related to an electrical problem. It wouldn't be the first time that wiring harnesses are faulty. This has even happened with genuine aftermarket kits.

Okay, I'll check everything tomorrow. The strange thing is that the error message related to the body control module still appears even when both headlights are disconnected and nothing is connected.

streetlife wrote:

Ok werde es morgen alles durchmessen nur das Komische ist, dass der Fehler im Bordnetzsteuergerät auch erscheint wenn ich beide Scheinwerfer ausbaue also nichts angeschlossen ist ?

Even with the Kufatec wiring harness disconnected?

No, just the headlight. I'll test everything tomorrow, but thanks for your help so far. I'll get back to you later.

Please perform a complete vehicle scan.

Okay.

Was your error memory clear before the modifications were made?

Yes, it only appeared after the body control module was replaced and programmed.

Has it been correctly encoded?

Yes, I assume that's the case, but I'm not entirely sure. I read out the coding from another Audi A4 that came with factory-installed Xenon headlights and cornering lights, and used that coding.

First, you should be absolutely certain that the encoding is correct. Otherwise, debugging will be pointless.

What was the encoding like before?

This is a scan showing the old body control module still installed and before any modifications were made.

streetlife wrote:

Yes, I assume that's the case, but I'm not entirely sure. I read out the coding from another Audi A4 that came from the factory with xenon headlights and cornering lights, and used that.

Was was from the same model year?
What other ECUs (Engine Control Units) have you remapped?
hg
Herbert.

Only the body control module (BCM).
According to the seller, it's from 2013.

What exactly did you install from Kufatec, and what information does Kufatec provide about the control units (ECUs) and the coding process?
The "new" TCU (Transmission Control Unit) seems to be used and was found online.
hg
Herbert.
