Hello. I'm new here and maybe someone can help me. I need to replace the timing belt on my A3 TDI 90 hp (ALH), manufactured in March 2001. Does anyone have the dimensions of the locking pin for the fuel injection pump or the setting gauge for the camshaft? Are there any tips for blocking the crankshaft? Thank you in advance. Best regards.

I consider the questions about the dimensions for the centering pin and the adjustment gauge as a good suggestion for a technical article, or what do you think?
How about listing the most important dimensions here, so that anyone can potentially have a specialized tool made?

I'm thinking about this further, for example, considering the dimensions for impact tools and similar items in the suspension area. What do you think about that?
I could, for example, contribute a small technical sketch of my adjustable gauge for the AGR engine, if desired.

Regards,
Alex.

"Fachartikel" sounds good.

Here's the information quickly.
The thorn has a diameter of 15.45 mm.

Ruler for your cam.
Height 14.8 (4.5)
Total depth: 15 (4.7)

The mass indicated in parentheses refers to the weight of the protruding part that fits into the cam.

Photos will be available tomorrow (I have the digital camera in the car and it's cold outside ).

m;

PS: I got the mass from the "Jetzt helf ich mir selbst" guide for the G2 diesel engine.
I had the parts made from aluminum (thank you, university workshop ).

The size of the alignment pin for the ESP (Electronic Stability Program) doesn't fit my 2001 TDI (ALH) engine. Sorry. Thank you anyway. Maybe someone else will be able to help. Best regards.

Hello,

The tool shown is used with the 2001 ALH engine.

The pen has a diameter of approximately 6mm.
Unfortunately, the gauge for "older" TDI models can no longer be used.

Please provide the text you would like me to translate from German to English.

Are there any differences between the 1998 ALH and the 2001 model?

"In the repair manual for my ALH engine, a different type of alignment tool is described. It has the VW part number 3418 and is shaped like a horizontal 'E'. The central rib then engages with the camshaft."

Approximately like this:
_ _
| | _ | |
| |__| |__| |__
|_________|


I have the measurements at home; I can send them to you this evening.

Oops.

Forget my ASCII sketch; it looks kind of weird after I posted it. The spacing seems to have changed.

Hello,

These tools are still used, for example, in "older" TDI models.
The marking pin is significantly larger here.

The measurements I provided were specifically for those tools (2064 and 2065(A)).

m;

Hello,

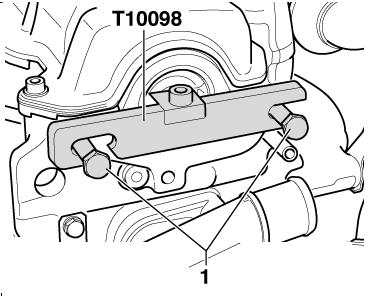

I've never seen a T10098 before, but it definitely seems to be something.
to eliminate the need to remove the valve cover.
This only works with the newer TDI models.

If we keep the purpose of the necessary tools in mind...
'...leads one to realize that these can also be done well and quickly.'
can build yourself. A corresponding, custom-made and tailored...
ground flat iron, also made by me from aluminum or brass.
Even plastic can be used as a straight edge for aligning the crankshaft.
It's only important that the top and bottom are roughly parallel.
are. Any possible angles or thickenings are merely secondary features.
to increase strength, but not if done carelessly.
absolutely necessary. As a possible solution, one could use a corresponding...
Use a drill bit or a round rod, as this is only intended to prevent...
that the injection pump might be twisted. It could be fixed in five minutes.
make something on the lathe.

'For PD-TDI engines, the necessary tools are now available (though not necessarily easy to obtain).'
to build - that's the system at VAG!) at www.hazet.de

The only thing you really need is the right tool (2-prong).
key) to rotate the tensioning mechanism. Many providers have something to offer in this area.
available in our product range. We also offer products for regular maintenance.
between timing belt changes, as the tensioner needs to be adjusted periodically.
must be done!
And of course, a diagnostic tester for dynamic injection timing testing!

Best regards,
Jürgen

Thank you for your contributions. One more question for Michael II. Your camshaft alignment tool is brilliant because it eliminates the need to remove the valve cover. My question is: If the crankshaft marking aligns and the fuel injection pump rotor can be locked with a locking pin, is cylinder number 1 at TDC (Top Dead Center)? Or does it need to be rotated another 180 degrees? Normally, you can tell this by the camshaft of the first cylinder. Is there a way to tell this even if the valve cover remains on? Best regards.

Take a look inside here: https://community.dieselschrauber.org/en/viewtopic.php?t=3432

CU Gremlin.

Here are some part numbers for various tools from the company Klann, specifically for TDI engines with VP37 injection pumps:

KL-0280-8 Fuel injection pump locking pin.
KL-0280-9: Camshaft alignment tool (alignment gauge).
KL-0129-11 Measuring dial adapter, 65 mm, for fuel injection pump.
KL-0284-9 Key for adjusting the tensioner.
KL-0282-3: Holding key for camshaft pulley.

Here are the pictures of my rulers (they were for a Golf 2 Diesel JP, but they should also fit a 1Z).

VW 2064 and 2065(A)

http://people.freenet.de/golf-schrauber/Nockenlineal1.jpg
http://people.freenet.de/golf-schrauber/Nockenlineal2.jpg
