2018 Volkswagen T6 Consumption


Post09-06-2015, 22:54    Subject: Recommendation and Source: Underbody Protection Quote

Recommendations for durable, effective, and also affordable underbody protection are welcome!

Currently, I am using a product from Landi, which is good for preservation, but is anything but winter-proof... therefore, a product based on wax would probably be a good idea. icon_question.gif

Best regards, Rainer
Dipl.-Ing. (FH) Rainer Kaufmann - dieselschrauber VCDS Shop


Last edited on 10-06-2015, 10:09, edited 3 times in total.
Back to top Profile PM WWW Garage
Steffen G
Profi-Schrauber
Profi-Schrauber


Joined: 10/26/2006
Posts: 2549
Karma: +575 / -0   Thank you, like it!
Location: bei Zwickau

Premium Support

Post09-06-2015, 23:20    Subject: Recommendation and Source: Underbody Protection Quote

Hi!

Check out Elaskon UBS 2. It's water and winter resistant. Lasts for many years.
Warning: When used in warm weather, especially when dispensing from 1-liter cans using a pressure gun, it will create a mist, and you can end up saturating your entire car, including the windows and roof. Proper coverage is very important there.

We seem to have discussed this topic already twice. I usually lightly oil the rusted spots beforehand, as a kind of bonding agent.
Grüße, Steffen!

Golf 4 TDI,
T4 Doka-Pritsche, paar Oldtimer
Back to top Profile PM
dieselschrauber
Administrator
Administrator
Avatar-dieselschrauber

Joined: 04/12/2002
Posts: 17988
Karma: +781 / -0   Thank you, like it!
Location: St.Gallen
2018 Volkswagen T6 Consumption


Post10-06-2015, 10:10    Subject: Recommendation and Source: Underbody Protection Quote

Thanks for the tip!
Dipl.-Ing. (FH) Rainer Kaufmann - dieselschrauber VCDS Shop
Back to top Profile PM WWW Garage
Tagessuppe
Profi-Schrauber
Profi-Schrauber


Joined: 11/13/2002
Posts: 1140
Karma: +36 / -0   Thank you, like it!
Location: Wien
2001 Audi A2 Consumption
Premium Support

Post10-06-2015, 10:21    Subject: Recommendation and Source: Underbody Protection Quote

I have had good experiences with the Innotec Hi-Temp Wax Spray.
http://www.innotec.at/web/produkte/produkt.php?id=176
It has excellent adhesion and is applied in a very thin layer.
Another advantage is that this product is available in brown and transparent.
The risk that rot would continue unnoticed under the underbody protection has thus been averted.
Unfortunately, it's not exactly cheap. The aerosol can costs approximately 14,-.
One or two for a complete treatment.
I always treat the underbody with Brunox spray at the rusty spots first. Apply it twice and then let it dry thoroughly. After that, spray on Hi-Temp Wax.
Another advantage is that the underbody or axle parts sprayed with it look very well-maintained afterwards.
The TÜV inspectors need to assess the overall condition of the vehicle, and they often look at the "big picture" to determine whether a car has been properly maintained and cared for. icon_wink.gif
Back to top Profile PM Garage
Autoservice
Profi-Schrauber
Profi-Schrauber
Avatar-Autoservice

Joined: 04/14/2012
Posts: 2130
Karma: +99 / -0   Thank you, like it!
Location: Nähe Düsseldorf

CAN Support

Post10-06-2015, 15:23    Subject: Recommendation and Source: Underbody Protection Quote

We've had something like this before icon_wink.gif:


/viewtopic.php?t=24639&highlight=mike+sanders

Dry, the valley looks like the cavity protection from the Golf 2 era.
LG, Onkel BM

*Nichts ist einfacher, als sich schwierig auszudrücken......*

**Technische Fragen bitte ins Forum und nicht in mein Postfach**


Last edited on 10-06-2015, 15:25, edited 1 time in total.
Back to top Profile PM
Steffen W
Profi-Schrauber
Profi-Schrauber


Joined: 07/05/2008
Posts: 1276
Karma: +104 / -0   Thank you, like it!
Location: Altenburg

Premium Support

Post11-06-2015, 20:19    Subject: Recommendation and Source: Underbody Protection Quote

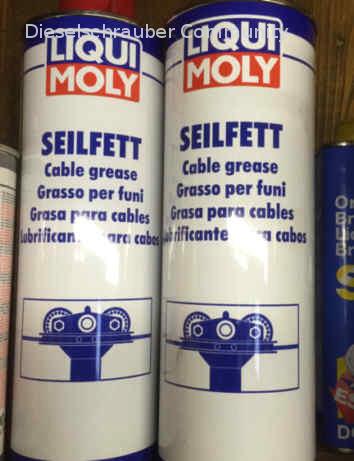

I use LM Cable Lubricant. It adheres very well, is thick and viscous. Is it available in 5-liter containers, in the usual 1-liter cans for the compressor, and as a spray? The latter is only mentioned for completeness. The spray cans tend to clog. This is also understandable for the contents icon_smile.gif. However, processing the liter bottles with compressed air works perfectly. However, one must also remember, especially in areas with splashing water. I do this for my own cars once a year. Sometimes I also apply graphite oil first and then the cable lubricant. I have no problems with rust. And the salt is also deposited neatly every winter.



 Description:
 Recommendation and Source: Underbody Protection
 File size:  26.76 KB
 Viewed:  644 times



 Description:
 Recommendation and Source: Underbody Protection
 File size:  21.26 KB
 Viewed:  1512 times


Passat Variant BGW 2005
2024 Dacia Duster blue dci 115
Back to top Profile PM
Steffen W
Profi-Schrauber
Profi-Schrauber


Joined: 07/05/2008
Posts: 1276
Karma: +104 / -0   Thank you, like it!
Location: Altenburg

Premium Support

Post11-06-2015, 20:21    Subject: Recommendation and Source: Underbody Protection Quote

TN 1 Liter Bottle LM 6173 and Spray LM 6135.
Passat Variant BGW 2005
2024 Dacia Duster blue dci 115
Back to top Profile PM
dieselschrauber
Administrator
Administrator
Avatar-dieselschrauber

Joined: 04/12/2002
Posts: 17988
Karma: +781 / -0   Thank you, like it!
Location: St.Gallen
2018 Volkswagen T6 Consumption


Post11-06-2015, 21:17    Subject: Recommendation and Source: Underbody Protection Quote

Thank you icon_smile.gif
Dipl.-Ing. (FH) Rainer Kaufmann - dieselschrauber VCDS Shop
Back to top Profile PM WWW Garage
