2018 Volkswagen T6 Consumption


Dagomanu likes this.
Post18-01-2022, 13:03    Subject: Backup encodings and adjustments with VCDS Quote
To back up the current coding and configurations of all control units, the following procedure is used with VCDS:
- Autoscan (includes all coding options)

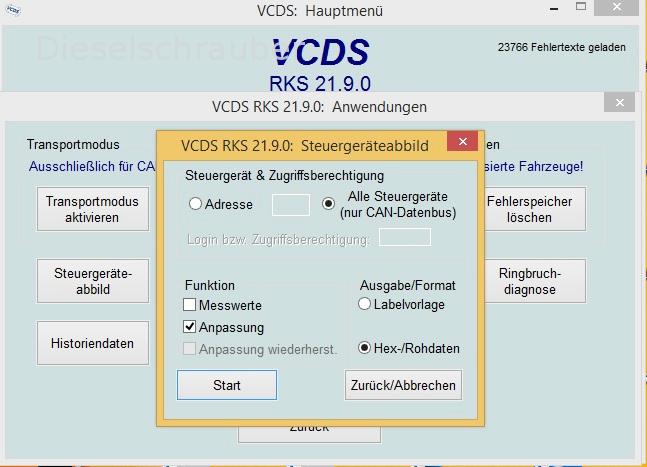

- Applications -> Control Unit Mapping -> Select all control units, adjust settings, and choose hexadecimal/raw data.

This allows you to restore the original coding and settings for each control unit using VCDS.


 Description:
 Backup encodings and adjustments with VCDS
 File size:  87.63 KB
 Viewed:  2935 times

Dipl.-Ing. (FH) Rainer Kaufmann - dieselschrauber VCDS Shop


Last edited on 18-01-2022, 13:06, edited 2 times in total.
