Common Rail Tool Set for Timing Belt Replacement

20-04-2022, 13:10 Subject: Common Rail Tool Set for Timing Belt Replacement

Hello everyone,

For my 1.4 Polo TDI, I used the Hazet 2588/3 tool set for the timing belt replacement. That worked great.

What part number do I need for the 2.0CR engine for KW, NW, and HDP?

Regards,
Brezelmann01

dieselschrauber · 20-04-2022, 14:54 Subject: Common Rail Tool Set for Timing Belt Replacement

Hi Brezelmann,
I don't use a single, all-in-one solution for my CI/CD; instead, I use individual tools.
- KW Stop T10050;
- Centering pin 3359, 2 pieces, for inner wheel and outer wheel (or mandrel, drill bit d = 6 mm).
- Counterweight for the N (homemade).
- Very long key for turning the crankshaft (homemade - ring wrench with a flat bar attached).
- same, for relaxing the tensioner roller of the KRR system;

The kW stop value may vary from engine to engine, and it looks different in the Golf 7 with a 1.6L TDI engine. Ask about RLF.

hg
Herbert.

dieselschrauber · Last edited on 22-04-2022, 10:40, edited 1 time in total.

Okay, so the KW stop and the alignment pin need to be taken over.

OEM T10050 = Hazet 2588-1
OEM 3359 = Hazet 2588-3

I just need to buy one more marking pin. I'm going to use original/Hazet parts here, as this one is hollow-drilled, presumably to allow air to escape from the guide.

Thank you!

dieselschrauber · 22-04-2022, 14:44 Subject: Common Rail Tool Set for Timing Belt Replacement

Hi,
You'll need two probes, one for the front wheel and one for the rear wheel. A simple 6 mm pen will really do the trick.
hg
Herbert.

04-06-2022, 10:05 Subject: Common Rail Tool Set for Timing Belt Replacement

Hi!

Is there a recommendation for a reasonable camshaft holding tool for home use that is below the price range of Hazet?

Regards,
Brezelmann01

dieselschrauber · Last edited on 04-06-2022, 13:45, edited 2 times in total.

Hi Brezelmann,

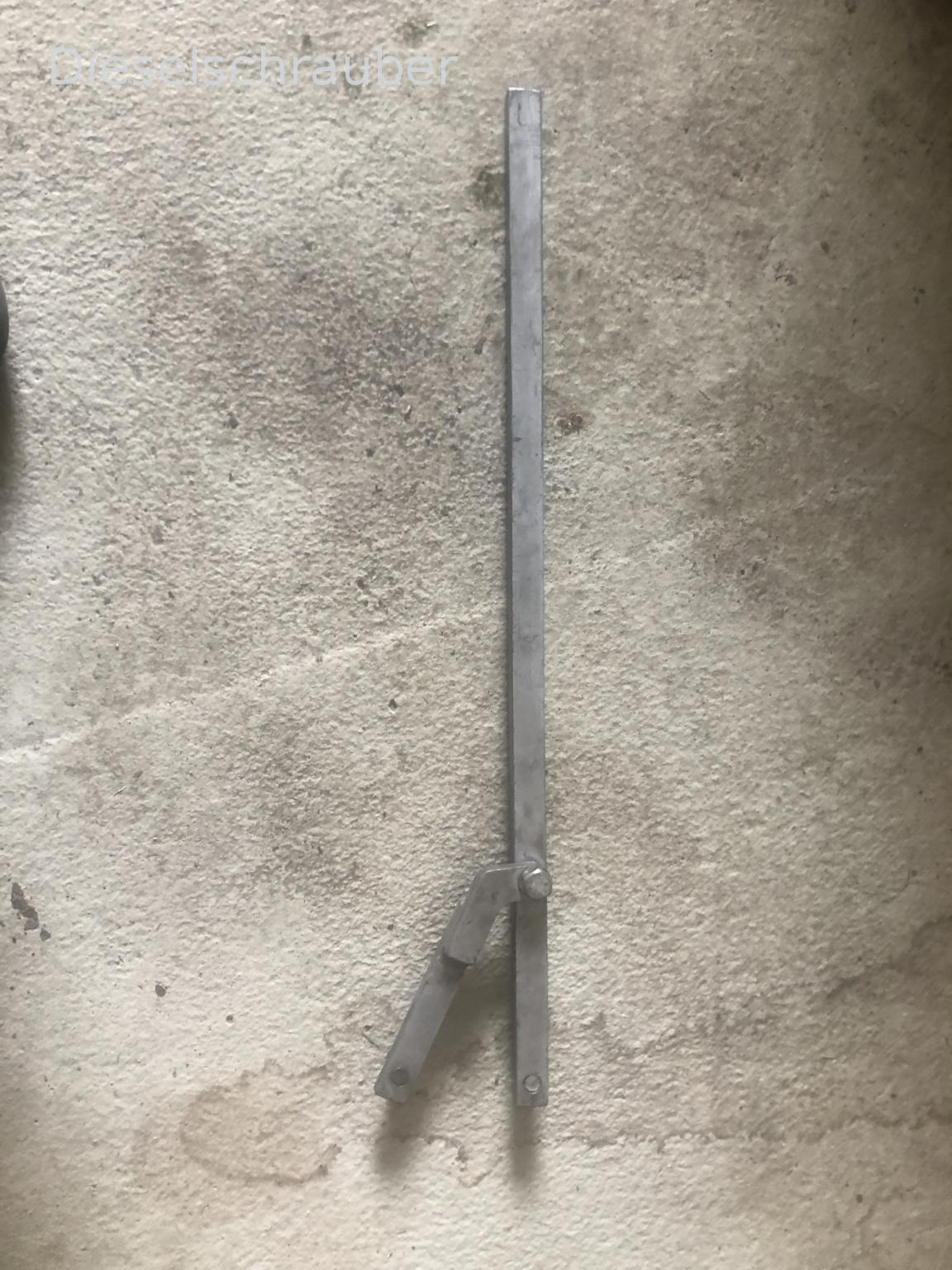

Build your own counterweight. Material: €20, Time required: 30 minutes.
It has been providing its service to me for almost 10 years.

dieselschrauber · Last edited on 04-06-2022, 14:01, edited 1 time in total.

Hello!

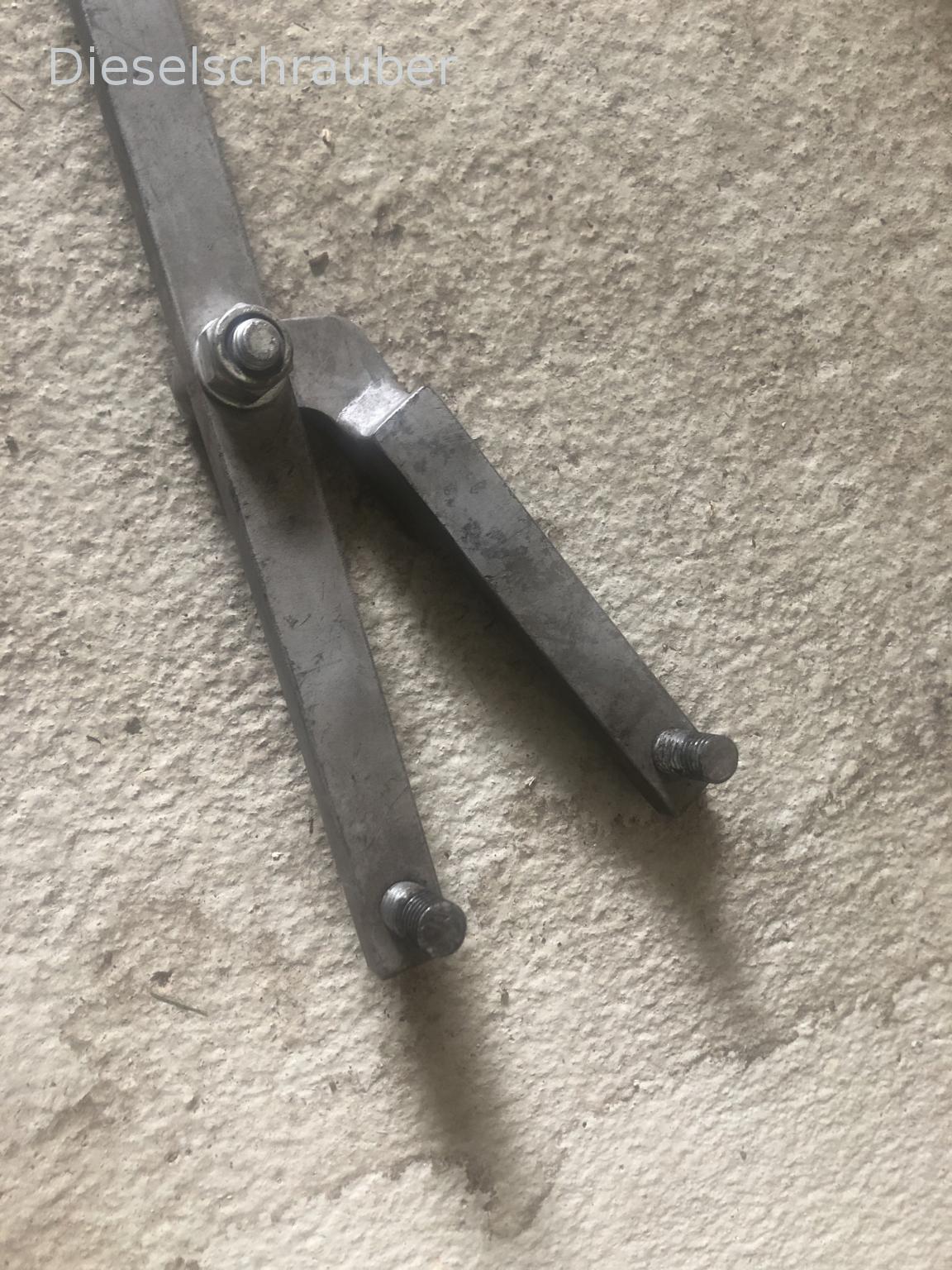

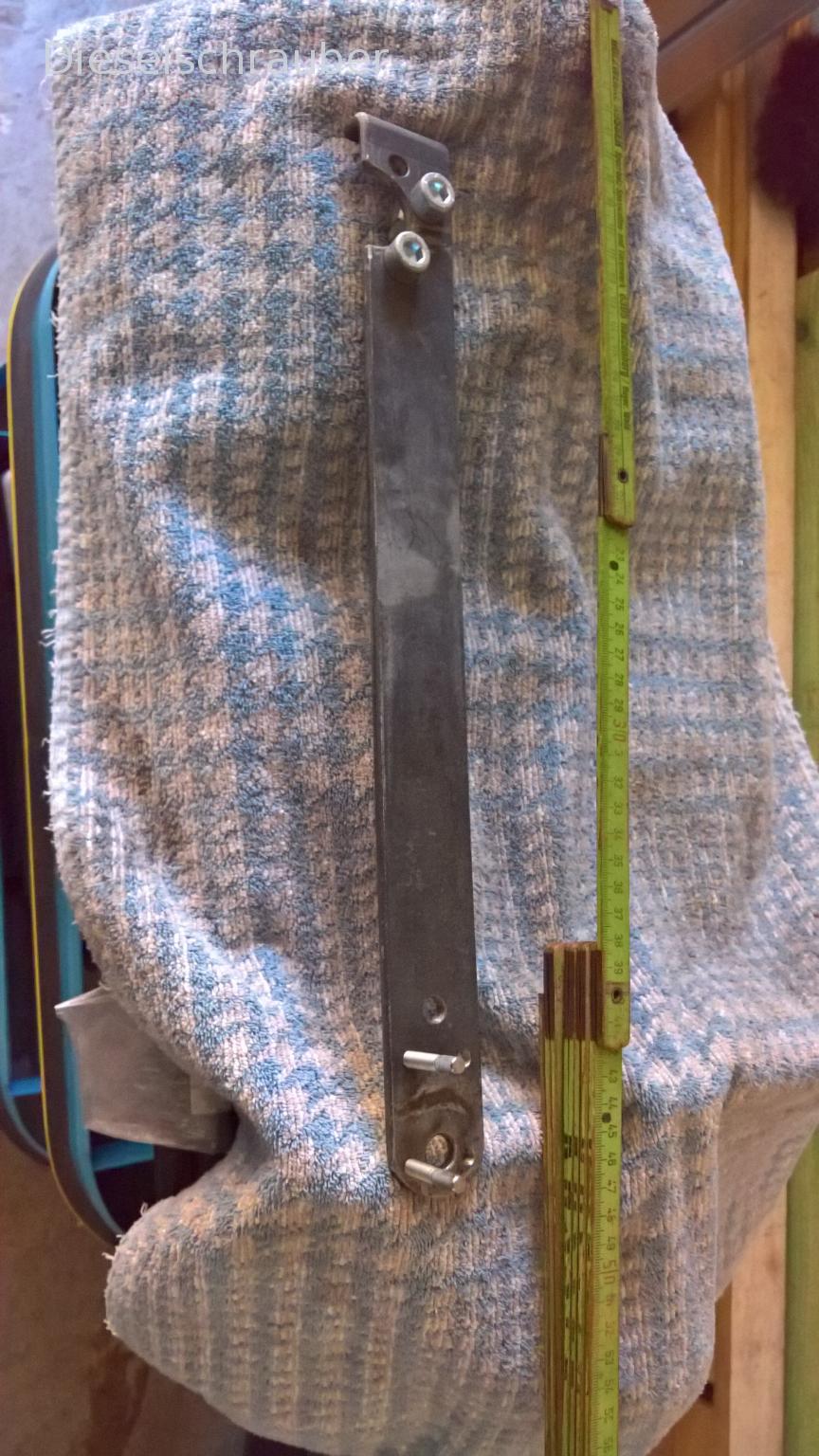

DIY - You'll need a flat bar, two screws with a head diameter that fits the holes in the crankshaft pulley (top of the image), and two pins that fit the holes in the harmonic balancer (bottom of the image).

05-06-2022, 13:09 Subject: Common Rail Tool Set for Timing Belt Replacement

Hmm. Okay. Do it yourself. Actually, I didn't want to, as I currently don't have enough time and I also don't know the dimensions.

Regards,
Brezelmann.

dieselschrauber · 05-06-2022, 14:39 Subject: Common Rail Tool Set for Timing Belt Replacement

Caliper? I mean, I must have gotten the dimensions from somewhere.

Herbert.

dieselschrauber · 07-06-2022, 19:21 Subject: Common Rail Tool Set for Timing Belt Replacement

Could you please tell me the thorn diameter you use for the counter-holder? You can't just easily measure the pressure without installing an additional pump and removing all the extra components.

Thank you!

dieselschrauber · 08-06-2022, 9:00 Subject: Common Rail Tool Set for Timing Belt Replacement

Hello,
I have M10 and M8 screws (with the M10 screw turned down to 8mm) installed.

VG
Thilo.
