K-Power Performance Measurement

Hello,
I think I'm doing something wrong. I'm getting the message when importing a log file,
Check log file, insufficient data or missing column names.
found
Import cancelled.
Best regards, Peter

Hi Peter,

Have you probably not read the instructions, or have you?
Please upload your log here.

Best regards, Rainer

Hi Rainer,
I have read the instructions, but maybe I didn't understand them?
Best regards, Peter

Hi,

VCDS unfortunately is not consistent with column names in logs.

In der nächsten KPower-Version wird man daher die Spalten manuell auswählen können, oder gar kein anderes Diagnoseprogramm mehr benötigen, da bereits vom RKS+CAN und KOBD2Check herstellerübergreifend unterstützt.

According to the engine control unit part number, the vehicle is likely a Golf 7. I have left the 1380kg pre-set value in KPower, but these need to be adjusted for accurate results based on the mass being accelerated (vehicle scale at a warehouse, disposal operation, etc.).

Header of the CSV file:

Code:

Monday, 09, May, 2016, 19:24:14:31132-VCID:306893006B5ACFBECE-8064,VCDS Version: RKS 15.7.4,Data Status: 20160226 5G0 906 259 E,ADVMB,2.0l R4 TFSI, H13 0003, ,,G218,F0,G536,F0,G000,F0,G000,F0,G000,F0,G000,F0,G000,F0,G000,F0,G000,F0,G000,F0,G000,F0,G000,F0, Marker, Time, Block 218 - Field 0, Time, Block 536 - Field 0, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,MAKE,Engine Speed,MAKE,Vehicle Speed,,,,,,,,,,,,,,,,,, ,, /min,, km/h,,,,,,,,,,,,,,,,,,,,,

adjust to:

Code:

Monday, 09, May, 2016, 19:24:14:31132-VCID:306893006B5ACFBECE-8064,VCDS Version: RKS 15.7.4,Data Status: 20160226 5G0 906 259 E,ADVMB,2.0l R4 TFSI, H13 0003, ,,G218,F0,G536,F0,G000,F0,G000,F0,G000,F0,G000,F0,G000,F0,G000,F0,G000,F0,G000,F0,G000,F0,G000,F0, Marker, Time, Block 218 - Field 0, Time, Block 536 - Field 0, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,MAKE,Engine Speed,MAKE,Vehicle Speed,,,,,,,,,,,,,,,,,, ,Stamp, /min,, km/h,,,,,,,,,,,,,,,,,,,,,

It's starting now.

Best regards, Rainer

Hi Rainer,
Thank you for your quick help, it worked.
It's a Golf 7 R with 300 horsepower. My vehicle weight according to EU standards is 1495 KG.
My weight is 95 Kg.
According to my calculation, I have approximately 287 horsepower and 356 Nm.
I also performed another measurement with air mass, which unfortunately only displayed the value in kg/h.
will be. I then converted it and got approximately 300 horsepower.
Best regards, Peter

I thought, before creating a new topic, I would just continue in this thread because the problem description from the original poster is quite similar to my current difficulty.

I have been using KPower for performance measurement for quite some time, and it has always worked very well so far.

Currently, when I try to import the file, I am receiving the following error message: "Check the log file, insufficient measurements or column names not found."

It would be great if I could get a tip on how to import everything again.

File attached.

Hi,

Please read the KPower instructions and avoid creating data clutter through meaningless conversions.

Best regards, Rainer

Hi,

Instructions have been read and understood, and they seem clear. In the past, the measurements have also always worked reliably. The computer was recently reset, could that be related?

No, the file contained garbage data.

Simply import the .csv file exactly as it is into KPower.
Maximum, a column name must be inserted. The new KPower version no longer requires this either.

Best regards, Rainer

Hello Rainer,
KPower Version is 3.0.9

I've retrieved another LOG file and attempted to import it into KPower, but unfortunately, without success. Changes to the settings have also not had any effect.

I have now attached a file again, in the hope that it is okay.

Hi,

Unfortunately, VCDS is inconsistent with the column descriptions in the .CSV file. The column marked in red must be inserted using an editor (e.g., Notepad or Wordpad) so that KPower 3.0.9 can read the file. In the next KPower version, this will no longer be necessary.

Saturday, May 21, 2016, 16:59:44:63336-VCID:316F7B44A8DE32B6C1-8064,VCDS Version: DRV 15.7.4,Data Status: 20160223
1K8 907 115 F,ADVMB,2.0l R4/4V TFSI 0020,
,,G001,F0,G066,F0,G000,F0,G000,F0,G000,F0,G000,F0,G000,F0,G000,F0,G000,F0,G000,F0,G000,F0,G000,F0,

Marker, Time, Block 1 - Field 0, Time, Block 66 - Field 0,,,,,,,,,,,,,,,,,,,,,,,,,
,MARKER,Motor Speed - (G28),MARKER,Speed - (Actual Value),,,,,,,,,,,,,,,,,,,,,
,STAMP, /min, km/h,,,,,,,,,,,,,,,,,,
...
[/code]

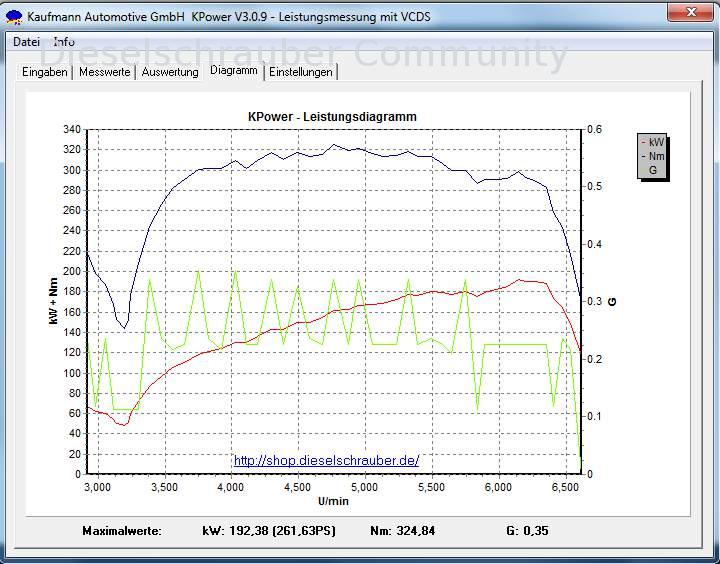

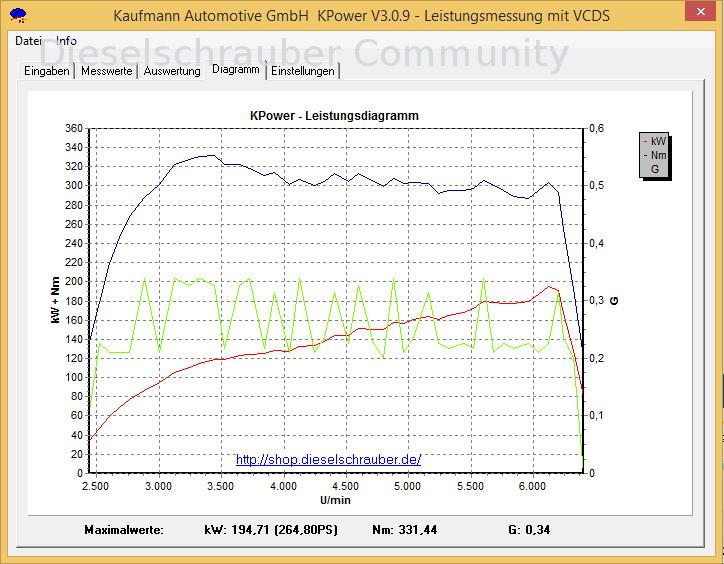

With the pre-set total vehicle weight of 1380kg (adjust to vehicle), the following chart results.

Best regards, Rainer
