2.0TDi won't start

hello everyone,

I have already used the search function, but unfortunately, I haven't found anything suitable.
It's about:

Yesterday, I got into my car in the morning and tried to start it, but unfortunately, it didn't work.
The engine briefly starts and then shuts off after 1-2 seconds. I think the immobilizer is activating because some kind of ECU is not sending a signal or there's a problem with the fuse or relay.
Combination instrument not working, but the onboard computer (screen in the middle) is functioning.
Climatronic display shows are not numbers but rather strange symbols.

I have already removed and charged the battery, and tried again, but unfortunately without success. I've also tested a second battery, and it's doing exactly the same.



Here's the scan, maybe you have an idea what it could be.

Friday, February 23, 2018, 11:41:02:48309
VCDS -- Windows-based VAG/VAS emulator runs on Windows 10 x86
VCDS Version: DRV 17.1.3.0
Data Status: 20170224 DS267.4
shop.dieselschrauber.org


Vehicle Identification Number: WVGZZZ1TZ7W093415 Vehicle Registration Number:


Vehicle Type: 1T (1K0)
Scan: 01 03 08 09 15 16 17 18 19 25 37 42 44 46 52 55 56 62 69 72
76

Vehicle Identification Number: WVGZZZ1TZ7W093415 Kilometer Stand: 181070km

00-Yaw sensor -- Status: OK 0000
01-Engine Electronics -- Status: Error 0010
03-Brake Electronics -- Status: Error 0010
08-Climate/Heating System - Status: Error 0010
09-Main Electrical System -- Status: Error 0010
15-Airbag -- Status: OK 0000
16-inch steering wheel electronics -- Status: OK 0000
17-Switch Panel Insert -- Status: OK 0000
18-Stand Heizer -- Status: Not reachable 1100
19-Diagnosis Interface -- Status: Error 0010
25-Way Ignition Switch -- Status: OK 0000
37-Navigation -- Status: Not logged in 0001
42-T¸relektr. Driver -- Status: OK 0000
44-Control Aid -- Status: Error 0010
46-Comfort System -- Status: OK 0000
52-T¸relektr. Passenger. -- Status: Error 0010
55-Light fixture regulator -- Status: Error 0010
56-Radio -- Status: Error 0010
62-T¸relektr. hi. li. -- Status: OK 0000
69-supporters -- Status: OK 0000
72-T¸relektr. hi. re. -- Status: i.O. 0000
76-Parking Assist -- Status: OK 0000

-------------------------------------------------------------------------------
Address 01: Engine Electronics Label file: DRV\03G-906-018-BMN.clb
Part Number SW: 03G 906 018 EH HW: 03G 906 018 EH
Part Number: R4 2.0l PPD1.2 G 4355
Revision: --H42--- Serial Number: VWX7Z0G33NB0NR
Encoding: 0000072
Operating Number: WSC 72320 142 84307
VCID: 6FD459B47E21B93900-803A

1 Error found:
005488 - Engine Control Unit Locked
P1570 - 008 -
Environmental Conditions:
Error Status: 11101000
Error Priority: 4
Error Frequency: 8
Number of losses: 40
Odometer: 181075 km
Time: 0
Date: 2000.00.00
Time: 08:07:38

Environmental Conditions:
Speed: 0 /min
Torque: 0.0 Nm
Speed: 0.0 km/h
0.00 %
Voltage: 11.30 V
Binary Value: 00011001
Binary Value: 00000000

Readiness: Not Available

-------------------------------------------------------------------------------
Address 03: Brake Electronics Label file: DRV\1K0-907-379-MK60-F.lbl
Part Number SW: 1K0 907 379 AC HW: 1K0 907 379 AC
Component: ESP FRONT MK60 0101
Revision: 00H11001
Encoding: 0023238
Plant No.: WSC 02000 785 00200
VCID: 73DC55C412099DD9E4-8026

1 Error found:
01435 - Sender 1 for Brake Pressure (G201)
012 - Electrical fault in the circuit

-------------------------------------------------------------------------------
Address 08: Climate/Heating Control Label file: DRV\1K0-907-044.lbl
Part Number SW: 1K0 907 044 BN HW: 1K0 907 044 BN
Part Number: ClimatronicPQ35 110 1010
Revision: 00110021 Serial Number: 00000000000000
Operating Number: WSC 00000 000 00000
VCID: 74DE56D817079AE1FD-8020

4 Error codes found:
00538 - Reference Voltage
002 - Lower limit exceeded
00538 - Reference Voltage
002 - Lower limit exceeded
01273 - Fresh Air Blowers (V2)
007 - Short Circuit to Ground
00819 - High-Pressure Sensor (G65)
009 - Interruption/Short Circuit to Ground

-------------------------------------------------------------------------------
Address 09: Central Electrical Label file: DRV\3C0-937-049-23-H.lbl
Part Number SW: 3C0 937 049 AE HW: 3C0 937 049 AE
Component: Junction Box H52 2002
Revision: 00H52000 Serial Number: 00000006952725
Encoding: E38B8F2100040F0047120C0000000000000B7F075C0001
Operating Number: WSC 01324 785 00200
VCID: 6CEE4EB84F37422125-8038

Subsystem 1 - Part Number: 1T0 955 119 D Label file: DRV\1KX-955-119.CLB
Part Number: Wiper 230307 020 0501
Encoding: 00038805
Operating Number: WSC 01324

Subsystem 2 - Part Number: 1K0 955 559 AD Label file: DRV\1K0-955-559-AF.CLB
Part: RLS 040407 014 1201
Encoding: 06762533
Operating Number: WSC 01324

4 Error codes found:
02394 - Headlight for front left (M1)
012 - Electrical fault in the circuit
Environmental Conditions:
Error Status: 01101100
Error Priority: 2
Error Frequency: 1
Number of Losses: 30
Mileage: 180356 km
Time: 0
Date: 2005.09.13
Time: 31:63:63

Environmental Conditions:
one
Voltage: 11.80 V
one
one
out
out
out

02395 - Lamp for front right side marker light (M3)
012 - Electrical fault in the circuit
Environmental Conditions:
Error Status: 01101100
Error Priority: 2
Error Frequency: 1
Number of Losses: 30
Mileage: 180356 km
Time: 0
Date: 2005.09.13
Time: 31:63:63

00978 - Headlight projector lamp, left (M29)
010 - Interruption/Short to Plus
Environmental Conditions:
Error Status: 01111010
Error Priority: 1
Error Frequency: 9
Number of Losses: 30
Odometer: 180140 km
Time: 0
Date: 2005.09.13
Time: 31:63:63

Environmental Conditions:
one
Voltage: 14.40 V
one
one
out
out
out

01207 - Tax control unit for auxiliary heating (J364)
004 - No signal/communication
Environmental Conditions:
Error Status: 01111010
Error Priority: 1
Error Frequency: 9
Number of Losses: 30
Odometer: 180140 km
Time: 0
Date: 2005.09.13
Time: 31:63:63


-------------------------------------------------------------------------------
Address 15: Airbag Label file: DRV\1T0-909-605.lbl
Part Number SW: 1T0 909 605 D HW: 1T0 909 605 D
Part: 04 AIRBAG VW8 021 0100
Revision: 02021000 Seriennummer: 003B9D03MM85
Encoding: 0012340
Operating Number: WSC 01324 785 00200
VCID: 365AACD041FBC8F103-8062

Subsystem 1 - Serial Number: 6332QSME283A174BL

Subsystem 2 - Serial Number: 6342QSME23792E79T

Subsystem 3 - Serial Number: 6352QSME2643784DO

Subsystem 4 - Serial Number: 6362QSME27574F2DX

No error codes found.

-------------------------------------------------------------------------------
Address 16: Steering Wheel Electronics Label file: DRV\1K0-953-549-MY8.lbl
Part Number SW: 1K0 953 549 BC HW: 1K0 953 549 BC
Part: Steering Column Module 636 0070
Encoding: 0000042
Operating Number: WSC 01324 785 00200
VCID: 74DE56D817079AE1FD-8020

No error codes found.

-------------------------------------------------------------------------------
Address 17: Switch Cabinet Installation Label file: DRV\1K0-920-xxx-17.lbl
Part Number SW: 1T0 920 863 E HW: 1T0 920 863 E
Component: COMBINATION INSTRUMENT VDD 3408
Revision: V0001000 Seriennummer: VWX7Z0G33NB0NR
Encoding: 0007103
Operating Number: WSC 72320 142 186630
VCID: 365AACD041FBC8F103-8062

No error codes found.

-------------------------------------------------------------------------------
Address 18: Portable Heater
unavailable

-------------------------------------------------------------------------------
Address 19: Diagnostic Interface Label file: DRV\1K0-907-530-V2.clb
Part Number SW: 1K0 907 530 K HW: 1K0 907 951
Part Number: J533__Gateway H04 0021
Revision: H04 02 Seriennummer: 100407F2000253
Encoding: 7D3F574007008002
Operating Number: WSC 01324 785 00200
VCID: 2F5499B4BEA1F93940-807A

2 error codes found:
01207 - Tax control unit for auxiliary heating (J364)
004 - No signal/communication
Environmental Conditions:
Error Status: 01100100
Error Priority: 2
Error Frequency: 1
Loss Count: 176
Odometer: 163448 km
Time: 0
Date: 2000.00.00
Time: 15:24:24

01044 - Incorrect tax device coding
000 - -
Environmental Conditions:
Error Status: 01100000
Error Priority: 1
Error Frequency: 254
Loss Counter: 255
Odometer: 161071 km
Time: 0
Date: 2000.00.00
Time: 10:24:48


-------------------------------------------------------------------------------
Address 25: Immobilizer Label file: DRV\1K0-920-xxx-25.clb
Part Number SW: 1T0 920 863 E HW: 1T0 920 863 E
Component: IMMO VDD 3408
Revision: V0001000 Seriennummer: VWX7Z0G33NB0NR
Operating Number: WSC 00000 000 00000
VCID: 365AACD041FBC8F103-8062

No error codes found.

-------------------------------------------------------------------------------
Address 37: Navigation Label file: DRV\1K0-919-887-MFD2.lbl
Part Number: 1K0 919 887 F
Component: Navigation 0030
Encoding: 0000101
Operating Number: WSC 05314 000 00000
VCID: 3C4EBEF87FD712A1F5-8068

No error codes found.

-------------------------------------------------------------------------------
Address 42: Electrical Door Driver Label file: DRV\1K0-959-701-MAX3.clb
Part Number SW: 1T0 959 701 E HW: 1T0 959 701 E
Component: Door-SG 005 0937
Encoding: 0000181
Operating Number: WSC 01324 785 00200
VCID: 3940A7EC70E52789EE-806C

No error codes found.

-------------------------------------------------------------------------------
Address 44: Steering Aid Label file: DRV\1Kx-909-144-G2V3.clb
Part Number: 1K1 909 144 L
Component: EPS_ZFLS Class 071 H07 1806
Operating Number: WSC 01324 785 00200
VCID: 345E96D85787DAE13D-8060

1 Error found:
00750 - Error Lamp
013 - please read fault codes - Warning light ON
Environmental Conditions:
Mileage: 181070 km
Temperature: -7.0°C
Voltage: 10.90 V
Voltage: 10.70 V


-------------------------------------------------------------------------------
Address 46: Comfort System Label file: DRV\1K0-959-433-MAX.clb
Part Number SW: 1K0 959 433 BT HW: 1K0 959 433 BT
Part Number: KSG PQ35 G2 020 0203
Revision: 00020000 Serial Number: 00000000000000
Encoding: 809002085103087F2D06840560084F03E0FCA0
Operating Number: WSC 01324 785 00200
VCID: 033C050442A9AD59F4-8056

Subsystem 1 - Component: Sounder n.mounted

Subsystem 2 - Component: NGS n.mounted

Subsystem 3 - Component: IRUE n.mounted

No error codes found.

-------------------------------------------------------------------------------
Address 52: Rear Electrical Label file: DRV\1K0-959-702-MAX3.clb
Part Number SW: 1T0 959 702 E HW: 1T0 959 702 E
Component: Door-SG 005 0937
Encoding: 0000180
Operating Number: WSC 01324 785 00200
VCID: 3A42B8E075E32C91E7-806E

2 error codes found:
01553 - Motor for central locking - passenger side (V57); LOCK
012 - Electrical Fault in the Circuit - Sporadic
00929 - Locking unit for central locking, passenger side (F221)
008 - Unlikely Signal

-------------------------------------------------------------------------------
Address 55: Light fixture control. Label file: DRV\5M0-907-357-V2.lbl
Part Number SW: 5M0 907 357 A HW: 5M0 907 357 A
Component: AFS Control Unit X014
Revision: H01 Seriennummer:
Encoding: 3293188
Operating Number: WSC 01324 785 00200
VCID: 325290C0AD93D4D12F-8066

Subsystem 1 - Part Number: 1K0 941 329 Label file: 3D0-941-329.CLB
Component: AFS-Beam-Module l 0001
Encoding: 00000050

Subsystem 2 - Part Number: 1K0 941 329 Label File: 3D0-941-329.CLB
Component: AFS-Beam-Module r 0001
Encoding: 00000050

1 Error found:
00978 - Headlight projector lamp, left (M29)
014 - Defect
Environmental Conditions:
Error Status: 01101110
Error Priority: 4
Error Frequency: 1
Lost Count: 0
Time: 0

Environmental Conditions:
Voltage: 10.65 V
Speed: 0.0 km/h
SECTION 1


-------------------------------------------------------------------------------
Address 56: Radio Label file: DRV\1K0-035-095.lbl
Part Number: 1K0 035 095 G
Part: Radio 0030
Encoding: 0042400
Operating Number: WSC 05314 000 00000
VCID: 296077AC804597099E-807C

2 error codes found:
01303 - Sending and Receiving Device for Telephone (R36)
004 - No signal/communication
01044 - Incorrect tax device coding
000 - -

-------------------------------------------------------------------------------
Address 62: Electrical installation, left side Label file: DRV\1K0-959-703-GEN3.clb
Part Number SW: 1K0 959 703 J HW: 1K0 959 703 J
Part: Door-SG 005 0906
Encoding: 0000144
Operating number: WSC 01324 785 1012552
VCID: 3744A1D446F131F918-8062

No error codes found.

-------------------------------------------------------------------------------
Address 69: Trailer Label file: RETROFIT69.lbl
Part Number SW: 30/ 1V2 .01 HW: 30/ 1V2 .01
Part: ANHÄNGER_MODULE UN 0030
Encoding: 0000001
Operating Number: WSC 00000 000 00000
VCID: 5A82186095A3CC91C7-800E

5 error codes found:
02562 - Lamps for brake lights on the trailer
011 - Interruption
02563 - Lamp for brake light on the right, attached to the trailer (M61)
011 - Interruption
02564 - Lamp for right-hand taillight on trailer (M60)
011 - Interruption
02565 - Flashing lights on the right side of the trailer (M63)
011 - Interruption
02566 - Flashing left turn signal on trailer (M62)
011 - Interruption

-------------------------------------------------------------------------------
Address 72: Electrical engineering, research. Label file: DRV\1K0-959-704-GEN3.clb
Part Number SW: 1K0 959 704 J HW: 1K0 959 704 J
Part: Door-SG 005 0906
Encoding: 0000144
Operating number: WSC 01324 785 1012552
VCID: 3846A2E84BEF3E8111-806C

No error codes found.

-------------------------------------------------------------------------------
Address 76: Parking Assist Label file: DRV\1K0-919-283.lbl
Part Number: 1K0 919 283 A
Part: 05 Parking Assist 0101
Operating Number: WSC 00000 000 00000
VCID: 2D6883BCB4AD8B2972-8078

No error codes found.

Ende----------------------------(Duration: 01:40)-----------------------------

Hi,

yes, it is clearly the immobilizer, which is causing the engine to shut down again, due to the error message in the engine control unit.

Interestingly, neither the {25} (immobilizer) nor the {17} (instrument cluster) are displaying any error messages. Please check the wiring from the engine control unit and the relevant fuses for any breaks.

According to the VIN, the car should be a Touran, but does it possibly have an old fuse box near the battery?

PS: If you use the same email address in your customer account on the shop and here, you will be automatically recognized as a customer.

Best regards, Rainer

The car is actually well-maintained and hasn't deteriorated much.

Have checked the mass of the points on the battery. The fuse from the auxiliary heater was defective, but I have already replaced it.

The funny thing is that AI doesn't make mistakes, and neither does the keyless entry system.

I need to check the remaining fuses again tomorrow.

Have you got any tips on which relays I should also check? Could the power supply relay also be the cause?

All other issues the car has should not be the reason for the immobilizer to activate... or?

Hi,
What if you try using the backup key? Is it the same?
If not a transponder. If the key's ignition switch is the first suspect.
And check the gateway's encoding.

Tomorrow...

I have already tried both keys. With both, the exact same thing happens. The coding at the gateway is from the rain sensor, but it has been in place for a few months.




UPDATE:

The 5A fuse in the E-Box Low, located below the steering wheel.

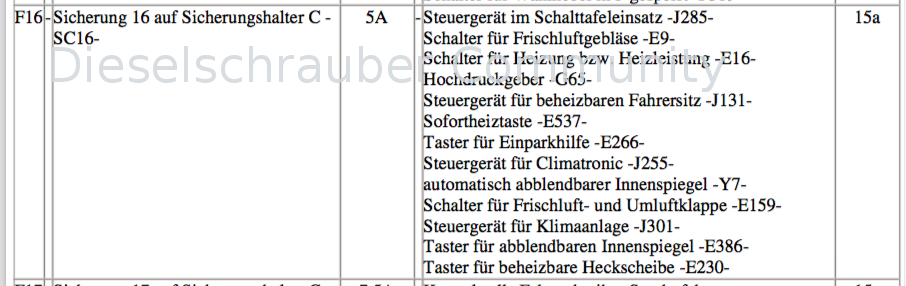

In the attached image, you can see what each one is responsible for.

I have already driven and turned the engine off and on several times. Everything seems to be okay so far.

Thanks for the feedback! For Auto-Inn customers, however, support here is NOT free. Installing the software version from me won't help either!
