Intermittent Freezes and Stuttering Issues


New Topic Reply 🔗 🖨 Dieselschrauber - Index » Diesel Engine Technology
Author Message
Frankbe
Blaumann
Blaumann


Joined: 12/07/2012
Posts: 51
Karma: +9 / -0   Thank you, like it!
Location: Söhrewald
2015 Seat Leon
Premium Support

Post19-06-2021, 8:57    Subject: Intermittent Freezes and Stuttering Issues Quote

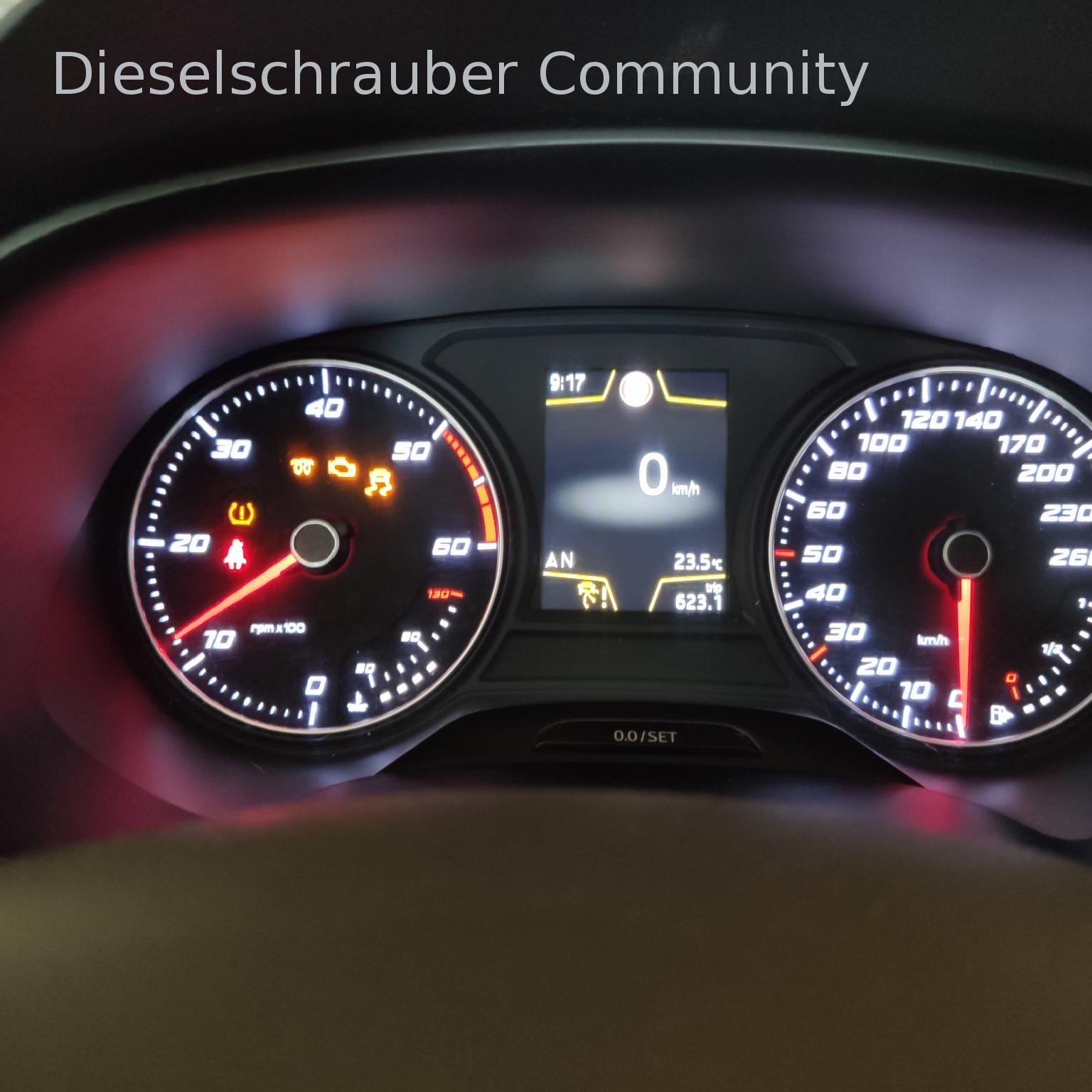

"For the past few days, my Seat has been exhibiting this phenomenon! It suddenly starts to jerk briefly, as if someone were turning the key while driving. This happens occasionally, and when it occurs 4-5 times during a drive, it goes into emergency mode. I think it's an electrical problem. I checked yesterday but didn't find anything. The ABS/ESC system activates."
Tire pressure monitoring system, optical parking system.
and occasionally, the start/stop system is also unavailable.
He also made some mistakes.



Log-KS FR 265-VSSZZZ5FZGR031339.txt
 Description:
 Intermittent Freezes and Stuttering Issues
Intermittent Freezes and Stuttering Issues
Download
 File name:  Log-KS FR 265-VSSZZZ5FZGR031339.txt
 File size:  64.13 KB
 Downloaded:  747 times
Seat Leon 3 ST (5F)

2,0 TDI MKB:CUNA


Translated on 24-07-2026, 0:51.
Back to top Profile PM Garage
dieselschrauber
Administrator
Administrator
Avatar-dieselschrauber

Joined: 04/12/2002
Posts: 18052
Karma: +795 / -0   Thank you, like it!
Location: St.Gallen
2018 Volkswagen T6 Consumption


Post19-06-2021, 9:39    Subject: Intermittent Freezes and Stuttering Issues Quote

Hello,

I would start by checking the wiring harness for any signs of abrasion, especially the wires that branch off to the sensors in the engine compartment.

Best regards, Rainer.


Translated on 24-07-2026, 0:52.
Back to top Profile PM WWW Garage
Frankbe
Blaumann
Blaumann


Joined: 12/07/2012
Posts: 51
Karma: +9 / -0   Thank you, like it!
Location: Söhrewald
2015 Seat Leon
Premium Support

dieselschrauber likes this.
Post19-06-2021, 17:15    Subject: Intermittent Freezes and Stuttering Issues Quote

Hello Rainer,

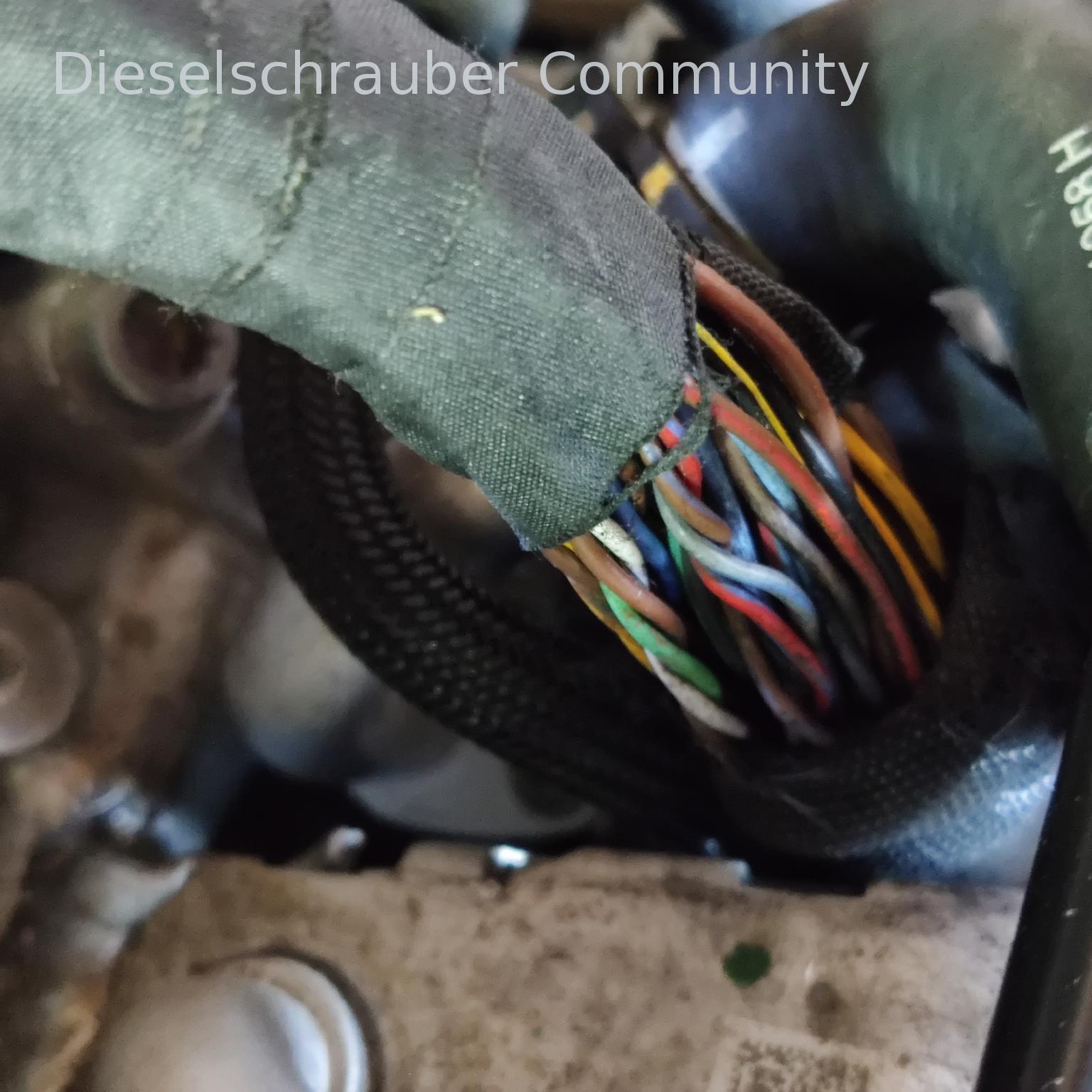

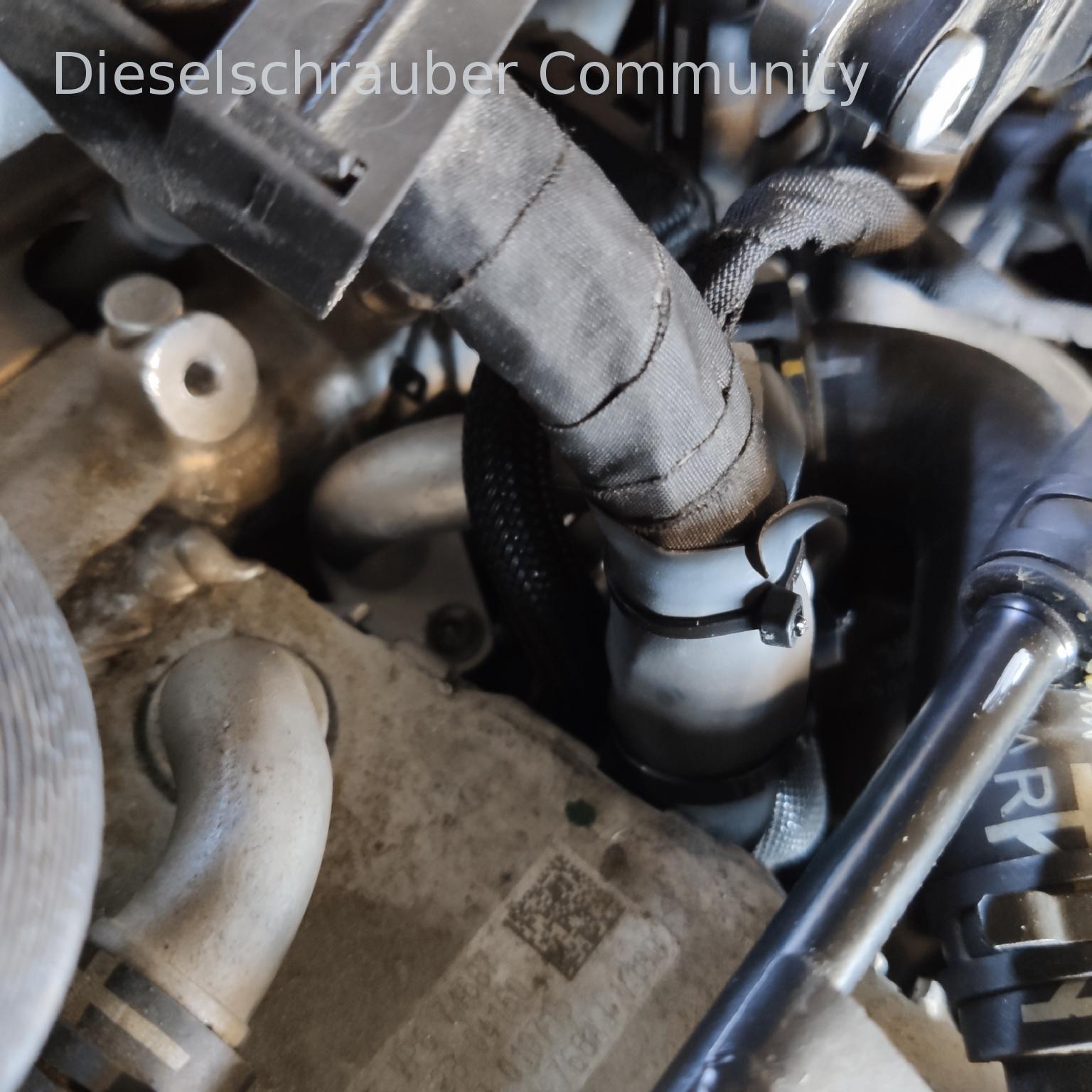

That's exactly what it was like as you described. There's a sharp edge at the top of the intake manifold where it rubbed. Two wires were slightly exposed and then shorted to ground.
It was barely visible, you could only see it with a magnifying glass. I took some pictures and will post them sometime.

Best regards, Frank.
Seat Leon 3 ST (5F)

2,0 TDI MKB:CUNA


Translated on 24-07-2026, 0:52.
Back to top Profile PM Garage
dieselschrauber
Administrator
Administrator
Avatar-dieselschrauber

Joined: 04/12/2002
Posts: 18052
Karma: +795 / -0   Thank you, like it!
Location: St.Gallen
2018 Volkswagen T6 Consumption


Post19-06-2021, 17:24    Subject: Intermittent Freezes and Stuttering Issues Quote

Great that you found it! Thank you for the feedback.


Translated on 24-07-2026, 0:53.
Back to top Profile PM WWW Garage
Frankbe
Blaumann
Blaumann


Joined: 12/07/2012
Posts: 51
Karma: +9 / -0   Thank you, like it!
Location: Söhrewald
2015 Seat Leon
Premium Support

dieselschrauber and Herbert likes this.
Post20-06-2021, 12:44    Subject: Intermittent Freezes and Stuttering Issues Quote

Gestern und heute normal eine größere Fahrt gemacht. Waren ca. 200 km insgesamt und jetzt ist alles okay. Ich hänge noch ein paar Bilder an. Und ich gebe immer eine Rückmeldung ich mag es nicht, wenn man ein Thema liest über viele Seiten und am Ende kommt nichts mehr. Das iIt's corrosive.

Have a great trip and safe travels to everyone!



 Description:
 Intermittent Freezes and Stuttering Issues
 File size:  3.03 MB
 Viewed:  295 times



 Description:
 Intermittent Freezes and Stuttering Issues
 File size:  3.45 MB
 Viewed:  264 times



 Description:
 Intermittent Freezes and Stuttering Issues
 File size:  3.19 MB
 Viewed:  264 times


Seat Leon 3 ST (5F)

2,0 TDI MKB:CUNA


Translated on 24-07-2026, 0:53.
Back to top Profile PM Garage
