Signal too slow, signal too fat 3.0 TDI CTBA

16-08-2022, 11:17 Subject: Signal too slow, signal too fat 3.0 TDI CTBA

Hello,

I have an A8 4D with approximately 70,000 kilometers on the odometer, and the engine warning light has come on.

I replaced the oxygen sensor before the catalytic converter, and for two months the check engine light didn't come on, but now it's back on with the following error codes:

5107 - Bank 1, Probe 1.
P0133 00 [101] - Signal too slow.
unconfirmed - checked since last deletion.
Environmental conditions:
Error status: 00000001
Error priority: 2
Error frequency: 2
Mileage: 68808 km
Date: 2022.08.12
Time: 14:52:16

Motor speed: 1278.00 rpm.
Normalized load value: 0.0%
Vehicle speed: 49 km/h
Coolant temperature: 70 °C
Inlet air temperature: 30 °C
Ambient air pressure: 950 mbar.
Voltage at terminal 30: 14,000 V.
Lost count after OBD: 40
Air mass: Actual value (mg/stroke): 535.9 mg/stroke.
Average injection amount: 0.00 mg/stroke.
Lambda sensor 1, bank 1: Status check. O2 signal bits 0-7: 1.
Lambda sensor 1, bank 1: Raw voltage of O2 signal: 734.2 mV.
Lambda sensor 1, bank 1: Voltage reading, Ri signal: filtered: 1016.0 mV.
Oxygen sensor 1, bank 1: Duty cycle of sensor heater: 37.26%
LSU r O2 Adap 0: 0.13600

5120 - Bank 1, Probe 1.
P2196 00 [101] - Mixture too rich.
unconfirmed - checked since last deletion.
Environmental conditions:
Error status: 00000001
Error priority: 2
Error frequency: 1
Mileage: 68824 km
Date: 2022.08.12
Time: 18:58:41

Motor speed: 1113.50 rpm.
Normalized load value: 0.0%
Vehicle speed: 55 km/h
Coolant temperature: 70 °C
Intake air temperature: 21 °C
Atmospheric pressure: 960 millibars.
Voltage at terminal 30: 13,900 V.
Lost count after OBD: 40
Air mass: Actual value (mg/stroke): 534.3 mg/stroke.
Average injection amount: 0.00 mg/stroke.
Lambda sensor 1, bank 1: Status check. O2 signal bits 0-7: 1.
Oxygen sensor 1, bank 1: Raw voltage of O2 signal: 868.4 mV.
Lambda sensor 1, bank 1: Voltage reading, Ri signal: filtered: 1016.6 mV.
Oxygen sensor 1, bank 1: Duty cycle of sensor heater: 37.69%.
LSU r O2 Adap 0: 0.15761

I read the fuel injection quantity deviations from the injectors, and here's what I found.

-0.03
2 0.52
3 - 0.15
4 - 0.11
5 - 0.25
6 0.02

Does anyone have any ideas about what I can do?

He hasn't set the MKL yet.

He drives normally without any problems, but the fans sometimes run more frequently when the car is stationary.

When replacing the oxygen sensor, it was heavily corroded.

17-08-2022, 17:16 Subject: Signal too slow, signal too fat 3.0 TDI CTBA

Hello,

Autoscan?

Best regards, Rainer.

dieselschrauber · 21-08-2022, 12:19 Subject: Signal too slow, signal too fat 3.0 TDI CTBA

Hello,

Please provide the text you would like me to translate from German to English.

Sunday, August 21, 2022, 12:15:42:34584
VCDS -- A VAG/VAS emulator based on Windows, running on Windows 10 x64.
VCDS Version: DRV 22.3.1.7
Data as of: 20220530 DS338.0
shop.dieselschrauber.org

Vehicle Identification Number:
Mileage: 69089 km. Repair order:

"Die Sonne scheint hell, und die Vögel zwitschern fröhlich. Es ist ein wunderschöner Tag, um spazieren zu gehen oder ein Picknick im Park zu machen. Viele Menschen genießen das gute Wetter und verbringen Zeit im Freien."
"Die Sonne scheint hell, und die Vögel zwitschern fröhlich. Es ist ein wunderschöner Tag, um spazieren zu gehen oder ein Picknick im Park zu machen. Viele Menschen genießen das gute Wetter und verbringen Zeit im Freien."

Vehicle type: 4H-AU64 (4H0)
Scan: 01 02 03 05 06 08 09 13 15 16 17 19 28 34 36 3B 3C 42 44 46
48 52 53 55 56 5B 5F 62 6C 6D 6F 72 81 85 88 89 8A 8B 8D 8E
8F 90 AC

Vehicle Identification Number: WAUZZZ4H9FN023531 Mileage: 69089 km

01-Motor electronics -- Status: Error 0010.
02-Gearbox -- Status: OK 0000
03-Brake electronics -- Status: Error 0010.
04-Steering angle sensor -- Status: OK 0000
05-Access/Startup Report -- Status: OK 0000
06-Seat reinforcement. Status: OK 0000.
08-Climate/Heating Unit -- Status: OK 0000
09-Central Electrical System -- Status: OK 0000
13-meter distance rule -- Status: OK 0000
15-Airbag -- Status: OK 0000
16-Wheel steering electronics -- Status: OK 0000
17-Terminal block insert -- Status: OK 0000
19-Diagnosis interface -- Status: OK 0000.
28-Heating/Climate: Current status: OK 0000.
34-Level regulation -- Status: OK 0000.
36-seat extension. Drive. -- Status: OK 0000
3B Sensor Electronics -- Status: OK 0000
3C track switch -- Status: OK 0000.
42-door electric. Driver -- Status: OK 0000
44-Steering Assist -- Status: OK 0000
46-Comfort System -- Status: OK 0000
48-seat extension. Drive. hi. -- Status: OK 0000
52-door electric. Front passenger seat. -- Status: OK 0000.
53-Parking brake -- Status: OK 0000
55-Beam angle adjustment. -- Status: OK 0000.
56-Radio -- Status: OK 0000
Rear passenger seat reinforcement (5B) - Status: OK 0000.
5F-Information Selection. I -- Status: Error 0010
62- Door, electric, left and right -- Status: OK 0000.
6C Reverse Camera -- Status: OK 0000
Rear hatch (6D) -- Status: OK 0000
6F Comfort System II -- Status: OK 0000.
72-Door, electric, high, right side -- Status: OK 0000.
81-Selector lever -- Status: OK 0000
85-Camera Control Unit -- Status: OK 0000
88-Multicontour driver's seat -- Status: OK 0000
Front passenger seat with 89 multi-contour settings -- Status: OK 0000.
Rear left multi-contour seat -- Status: OK 0000.
8B Distance Rule 2 -- Status: OK 0000
Rear right 8D multi-contour seat -- Status: OK 0000.
8E-Image processing -- Status: OK 0000.
Left-side 8F seatbelt pretensioner -- Status: OK 0000.
90-degree belt tensioner, right side -- Status: OK 0000.
AC reducing agent dosage. -- Status: OK 0000

"Der schnelle braune Fuchs springt über den faulen Hund."
Address 01: Engine Control Module (J623-CTBA) Label file: . DRV\059-907-401-V2.clb
Part number SW: 4H0 997 401 E, Part number HW: 4G0 907 401 E.
Component: 3.0TDI EDC17 H14 0002.
Revision: 58H14--- CVN: 519296DE60B4FDC638D3FF82
Encoding: 0A2A4032056601030000
Operating number: WSC 18789 003 1048576
ASAM Dataset: EV_ECM30TDI0114H0997401E 001002
ROD: EV_ECM30TDI0114H0997401E.rod
VCID: 2F692520769A54F765-807A
VINID: 9D196AAAA11825678008314304992FC8AF

2 error codes found:
5107 - Bank 1, Probe 1.
P0133 00 [232] - Signal too slow.
Warning light ON - Intermittent - Confirmed - Checked since last reset.
Environmental conditions:
Error status: 00000001
Error priority: 2
Error frequency: 3
Mileage: 68945 km
Date: 2022.08.17
Time: 18:32:36

Motor speed: 1310.50 rpm.
Normalized load value: 0.0%
Vehicle speed: 50 km/h
Coolant temperature: 70 °C
Intake air temperature: 28 °C
Ambient air pressure: 950 mbar.
Voltage at terminal 30: 13.760 V.
Lost count after OBD: 40
Air mass: Actual value (mg/stroke): 173.3 mg/stroke.
Average injection amount: 0.00 mg/stroke.
Lambda sensor 1, bank 1: Status check. O2 signal bits 0-7: 1.
Lambda sensor 1, bank 1: Raw voltage of O2 signal: 776.6 mV.
Lambda sensor 1, bank 1: Voltage reading, Ri signal: filtered: 1018.2 mV.
Oxygen sensor 1, bank 1: Duty cycle of sensor heater: 38.59%.
LSU r O2 Adap 0: 0.14730

5120 - Bank 1, Probe 1.
P2196 00 [096] - Mixture too rich.
Sporadically - unconfirmed - checked since last deletion.
Environmental conditions:
Error status: 00000001
Error priority: 2
Error frequency: 1
Mileage: 68962 km
Date: 2022.08.17
Time: 21:20:15

Motor speed: 1200.00 rpm.
Normalized load value: 0.0%
Vehicle speed: 46 km/h
Coolant temperature: 71 °C
Intake air temperature: 29 °C
Atmospheric pressure: 960 millibars.
Voltage at terminal 30: 14.160 V.
Lost count after OBD: 38
Air mass: Actual value (mg/stroke): 535.1 mg/stroke.
Average injection amount: 0.00 mg/stroke.
Lambda sensor 1, bank 1: Status check. O2 signal bits 0-7: 1.
Oxygen sensor 1, bank 1: Raw voltage of O2 signal: 894.6 mV.
Lambda sensor 1, bank 1: Voltage value, Ri signal: filtered: 1016.4 mV.
Oxygen sensor 1, bank 1: Duty cycle of sensor heater: 36.41%.
LSU r O2 Adap 0: 0.16240
Motor speed: 0.00 rpm.
Normalized load value: 0.0%
Vehicle speed: 0 km/h
Coolant temperature: -40 °C
Intake air temperature: -40 °C
Ambient air pressure: 0 mbar.
Voltage at terminal 30: 0.000 V.

Readiness: 1 1 0 0 0

"Der schnelle braune Fuchs springt über den faulen Hund."
Address 02: Transmission (J217) Label file:| DRV\0BK-927-156.clb
Part number SW: 4H1 927 158 CL, HW: 0BK 927 156 AD.
Part number: 0BK 30TDIRdW H19 1011
Revision: --H19--- CVN: 975A626A
Encoding: 000001
Operating Number: WSC 00000 000 00000
ASAM Dataset: EV_TCMALX51011 002022
ROD: EV_TCMALX51011_002_AU64.rod
VCID: 7CF3C26CF76C7F6F90-8028

No error codes found.

"Der schnelle braune Fuchs springt über den faulen Hund."
Address 03: Brake Electronics (J104)
Label file: 4H0-907-379.clb
Part number SW: 4H0 907 379 AA. Part number HW: 4H0 907 379 AA.
Component: ESP PREMIUM H10 0665.
Revision: -------- Serial Number: --------------
Encoding: 60E5EB8006A7D701E300
Operating number: WSC 02391 785 00200
ASAM Dataset: EV_ESPPremi 005024
ROD: EV_ESPPremi_005_AU64.rod
VCID: 71EDE358A02E020733-8024

Sure, here is the translation of the text from German to English:

"1 error found:"
0694 - Tire pressure warning.
C102D 00 [008] - -
Sporadically - confirmed - checked since last deletion.
Environmental conditions:
Error status: 00000001
Error priority: 6
Error frequency: 1
Lost Count: 6
Mileage: 67187 km
Date: 2022.07.18
Time: 09:39:26

VzRef: 3B
Bit Info 1: 00
Bit Info 2: 40
Bit Info 3: 06
Bit Info 4: 12
F-Path: 4C
F-Type: 0D
Uz: B6

"Der schnelle braune Fuchs springt über den faulen Hund."
Address 05: Access/Startup Authorization (J393) Label file: . DRV\8K0-907-064-05.clb
Part number SW: 4H0 907 064 FB, HW: 4H0 907 064 EB.
Component: BCM2 2.0, Part Number: H36 0551.
Revision: 00002001
Encoding: 05A76F0E000000000000
Operating number: WSC 02391 785 00200
VCID: 6ED7F824B9101DFF2E-803A

No error codes found.

"Der schnelle braune Fuchs springt über den faulen Hund."
Address 06: Seat Adjustment. Beifah. (J521) Label file: None.
Part number SW: 4H0 959 760 D. Part number HW: 4H0 959 760 D.
Component: MEM-BFS H08 0156
Revision: AA000000 Serial Number: 00000120517622
Encoding: 0018B60000047201000001010101112131313333283333
Operating number: WSC 02391 785 00200
VCID: 34632A4C97BC772F18-8060

No error codes found.

"Der schnelle braune Fuchs springt über den faulen Hund."
Address 08: Climate Control/Heater (J255) Label file:| DRV\4H0-820-043.clb
Part number SW: 4H0 820 043 N HW: 4H0 820 043 N
Component: Climate control, 4 zones, H20 0210.
Encoding: 36810ABE3C0000
Operating number: WSC 02391 785 00200
ASAM Dataset: EV_AirCondiFront 003001
ROD: EV_AirCondiFront_002.rod
VCID: 2B513130428228D749-807E

No error codes found.

"Der schnelle braune Fuchs springt über den faulen Hund."
Address 09: Central Electronics (J519)
Label file: . DRV\4H0-907-063-V2.clb
Part number SW: 4H0 907 063 AB. Part number HW: 4H0 907 063 AB.
Component: BCM1 2.0 H20 0242
Revision: 19020001 Serial number: 00000912450901
Encoding: 0105C01440349FE2C9014087A0001800009CC3082E08020180000894610117000040002D0B0000
Operating number: WSC 02391 785 00200
VCID: 68DB8E3C9BF4C3CF64-803C

Subsystem 1 - Part number SW: 4H1 955 119 C, HW: 4H1 955 119 A, Label file: DRV\1KX-955-119.CLB.
Part: WWS641 140825 H36 0090
Serial number: 140925083833
Encoding: 0045F7

Subsystem 2 - Part number SW: 8U0 955 559 B HW: 8U0 955 559 B Label file: DRV\8U0-955-559.CLB
Part number: G397_RLFS H06 0002
Serial number: 23322682
Encoding: 0200FF

Subsystem 3 - Part number SW: 4H0 941 531 B, HW: 4H0 941 531 B.
Component: E1 - LDS H07 0044
Serial number: 15 10 2014 00000821.

Subsystem 4 - Part number SW: 4H0 907 705 K, HW: 4H0 907 705 C.
Component: EVLS-SG H08 0300
Serial number: WA109324000009518702.
Encoding: 020300

Subsystem 5 - Part number SW: 4H0 907 658, HW: 4H0 907 658.
Component: AQ_Hum_Sensor H03 0003
Serial number: A998C357000000000001

No error codes found.

"Der schnelle braune Fuchs springt über den faulen Hund."
Address 13: Distance Control (J428) Label file:| DRV\4H0-907-561.clb
Part number SW: 4H0 907 561 C, Part number HW: 4H0 907 561.
Component: ACC3 H21 0032
Serial number: 00000000000000
Encoding: 7E04020201
Operating number: WSC 02391 785 00200
ASAM Dataset: EV_AdaptCruisContrAU64X 002024
ROD: EV_AdaptCruisContrAU64X_002.rod
VCID: 2B513130428228D749-807E

No error codes found.

"Der schnelle braune Fuchs springt über den faulen Hund."
Address 15: Airbag (J234) Label file:| DRV\4H0-959-655.clb
Part number SW: 4H0 959 655 H HW: 4H0 959 655 H
Part: Airbag
10.43 H82 0086
Revision: -------- Serial Number: 003P100216FA
Encoding: 30333045313430303033554A304C34483053
Operating number: WSC 02391 785 00200
ASAM Dataset: EV_AirbaAU10BPAAU64X 001014
ROD: EV_AirbaAU10BPAAU64X_VW51.rod
VCID: 3B710170B2E2B857D9-806E

Crash sensor for driver-side side airbag:
Serial number: 3575HRB405N2QP0S706T

Crash sensor for side airbag, passenger side:
Serial number: 3585HRB405F2R8PE59V6

Rear side airbag crash sensor (driver's side):
Serial number: 3515JRB405T31LMUFPIT

Crash sensor for rear side airbag, passenger side:
Serial number: 3525JRB405D31LMUKGD5

Crash sensor for front airbag, driver's side:
Serial number: 3554VRB404P31GBIAHJ%

Crash sensor for front airbag, passenger side:
Serial number: 3564VRB405D31R20IP3G

No error codes found.

"Der schnelle braune Fuchs springt über den faulen Hund."
Address 16: Steering wheel electronics (J527)
Label file: . DRV\4H0-953-568.clb
Part number SW: 4H0 953 568 H HW: 4H0 953 568 H
Component: Steering module. Part number: H04 0005.
Revision: -------- Serial Number: 01335NJH000W5
Encoding: 0004FC
Operating number: WSC 02391 785 00200
VCID: 387B1E7C8BD4934F34-806C

Subsystem 1 - Part number SW: 4H0 951 528 A, HW: 4H0 951 528 A.
Component: E221 - MFL H08 0010
Serial number: 01 08 2014 D0002966

No error codes found.

"Der schnelle braune Fuchs springt über den faulen Hund."
Address 17: Terminal block insert (J285)

Label file: DRV\4H0-920-xxx-17.clb-SRI1
Part number SW: 4H0 920 930 R, Part number HW: 4H0 920 930 R.
Part number: TDieRDWACC--- H53 0707
Revision: 37081202 Serial number: 658111014592040
Encoding: 138608001F550008010000
Operating number: WSC 02391 785 00200
ASAM Dataset: EV_RBD4K 004050
ROD: EV_RBD4K_AU64.rod
VCID: 3565174894C66E272F-8060

Analog clock:
Subsystem 1 - Part number SW: 4H0 919 204 M, HW: 4H0 919 204 M.
Part: Analog clock D4 H05 0225.
Serial number: 2140930000637

No error codes found.

"Der schnelle braune Fuchs springt über den faulen Hund."
Address 19: Diagnostic interface (J533) Label file:| DRV\4H0-907-468.clb
Part number SW: 4H0 907 468 AF, HW: 4H0 907 468 AC.
Component: J533 -- Gateway H13 0075
Revision: -------- Serial Number: 00000001585892
Encoding: C0CD078108
Operating number: WSC 02391 785 00200
GVL: FF8FE84CDEE3E3FFC0000000
ASAM Dataset: EV_GatewPkoUDS 001024
ROD: EV_GatewPkoUDS_001_AU57.rod
VCID: 75E5D748D4462E27EF-8020

Battery monitoring control unit:
Subsystem 1 - Part number SW: 4H0 915 181 F, HW: 4H0 915 181 F.
Part number: J367-BDM H08 0181.
Serial number: 51275152381911835837.

Voltage stabilizer:
Subsystem 2 - Part number SW: 8K0 959 663 A, HW: 8K0 959 663 A.
Component: J532_DCDCStab H17 0042
Serial number: 14289000701021200181.

No error codes found.

"Der schnelle braune Fuchs springt über den faulen Hund."
Address 28: Heating/Climate here. (E265) Label file:| 4H0-919-158.clb
Part number SW: 4H0 919 158 K, Part number HW: 4H0 919 158 K.
Component: Climate Control Rear Vent H17 0200
Encoding: 2000000000
Operating number: WSC 02391 785 00200
ASAM Dataset: EV_AirCondiHeck 002001
ROD: EV_AirCondiHeck_AU64.rod
VCID: 387B1E7C83D4934F34-806C

No error codes found.

"Der schnelle braune Fuchs springt über den faulen Hund."
Address 34: Level Control (J197)
Label file: . DRV\4G0-907-553.clb
Part number SW: 4G0 907 553 G, HW: 4G0 907 553 F.
Component: AIR DAMPER H19 0783
Encoding: 008002
Operating number: WSC 02391 785 00200
ASAM Dataset: EV_AirSuspe 003025
ROD: EV_AirSuspe_VW51.rod
VCID: 2F692520769A54F765-807A

No error codes found.

"Der schnelle braune Fuchs springt über den faulen Hund."
Address 36: Seat adjustment. Drive. (J136) Label file: None.
Part number SW: 4H0 959 760 D. Part number HW: 4H0 959 760 D.
Component: MEM-FS H08 0156
Revision: AA000000 Serial Number: 00000120517624
Encoding: 0018BF8000857201020001010101112131313333203333
Operating number: WSC 02391 785 00200
VCID: 34632A4C97BC772F18-8060

No error codes found.

"Der schnelle braune Fuchs springt über den faulen Hund."
Address 3B: Sensor electronics (J849)
Label file: 4G0-907-637.clb
Part number SW: 4H0 907 637 K, Part number HW: 4H0 907 637 F.
Component: SARA 6D H04 0056
Revision: -------- Serial Number: EJ1BPA77028HVN
Operating Number: WSC 00000 000 00000
ASAM Dataset: EV_SARA2 005012
FILE: EV_SARA2.rod
VCID: 37791D408ECA9C373D-8062

No error codes found.

"Der schnelle braune Fuchs springt über den faulen Hund."
Address 3C: Lane Change (J769) Label file:| DRV\5Q0-907-566.clb
Part number SW: 4H0 907 566 F. Part number HW: 4H0 907 566 F.
Component: SWA Master H06 0030
Serial number: 0345696037
Encoding: 040311
Operating number: WSC 02391 785 00200
ASAM Dataset: EV_LaneChangeAssist 001028
ROD: EV_LaneChangeAssist_VW51.rod
VCID: 336129509AB2701701-8066

Control unit 2 for lane change assist:
Subsystem 1 - Part number SW: 4H0 907 568 F, HW: 4H0 907 568 F.
Component: SWA Slave H06 0030.
Serial number: 0347805924
Encoding: 040311

No error codes found.

"Der schnelle braune Fuchs springt über den faulen Hund."
Address 42: Door electronics. Driver (J386) Label file: .4H0-959-793.clb
Part number SW: 4H0 959 793 R, HW: 4H0 959 793 G.
Component: TSG FA H07 0280
Revision: -------- Serial Number: 0000120079220
Encoding: 011F1E015E0062C202083017
Operating number: WSC 02391 785 00200
VCID: 489B6EBCFB34E3CF44-801C

No error codes found.

"Der schnelle braune Fuchs springt über den faulen Hund."
Address 44: Steering Assist (J500) Label file:| DRV\4G0-909-144.clb
Part number SW: 4G0 909 144 M, HW: 4G0 909 144 G.
Component: RCEPS H41 0011
Revision: 00001000 Serial Number: 0012091033
Encoding: 101001010001
Operating number: WSC 02391 785 00200
ASAM Dataset: EV_RCEPS 009010
ROD: EV_RCEPS_009.rod
VCID: 336129509AB2701701-8066

No error codes found.

"Der schnelle braune Fuchs springt über den faulen Hund."
Address 46: Comfort System (J393) Label file: . DRV\4H0-907-064-46.clb
Part number SW: 4H0 907 064 FB, HW: 4H0 907 064 EB.
Component: BCM2 2.0, Part Number: H36 0551.
Revision: 00002001 Serial Number: 0347378999
Encoding: 011A0E2080B93185F320C7C40E0316470000000000000000000000000000
Operating number: WSC 02391 785 00200
VCID: 6ED7F824B9101DFF2E-803A

Subsystem 1 - Part number: 4H0 951 177.
Component: DWA sensor H01 0010.

Subsystem 2 - Part number: 1K0 951 605 C.
Part: LIN BACKUP HO H05 1501

Subsystem 3 - Part number SW: 4H0 959 591, HW: 4H0 959 591.
Part number: J245 PS50.030 H08 0006.
Serial number: WOO32549243
Encoding: 901F00

Subsystem 4 - Part number SW: 4H0 947 135 G, HW: 4H0 947 135 G.
Component: Roof electronics H13 0080.
Serial number: A2014000000000820795
Encoding: 010000

Subsystem 5 - Part number SW: 4H0 959 591 A, HW: 4H0 959 591 A.
Part number: V252 PS014 H06 0005.
Serial number: WOO100072D/

Subsystem 6 - Part number SW: 3AA 962 243 D, HW: 3AA 962 243 D.
Component: GEB.F.Heckoef H16 0811
Serial number: 93334934

No error codes found.

"Der schnelle braune Fuchs springt über den faulen Hund."
Address 48: Seat adjustment. Drive. hi. (J876) Label file: None.
Part number SW: 4H0 959 860 Part number HW: 4H0 959 860
Component: MEM-FS-Fund, H06 0158.
Revision: AA000000 Serial Number: 00000107650135
Encoding: 001892800000700D0A00392038193A2039203B3B202020
Operating number: WSC 02391 785 00200
VCID: 71EDE358A82E020733-8024

No error codes found.

"Der schnelle braune Fuchs springt über den faulen Hund."
Address 52: Door opener (or electric door release). Co-driver. (J387) Label file: .4H0-959-792.clb
Part number SW: 4H0 959 792 G. Part number HW: 4H0 959 792 G.
Component: TSG BF H07 0280
Revision: -------- Serial Number: 0000121144013
Encoding: 011F1E015E0062C202083006
Operating number: WSC 02391 785 00200
VCID: 3C73026CBFECBF6FD0-8068

No error codes found.

"Der schnelle braune Fuchs springt über den faulen Hund."
Address 53: Parking brake (----)
Label file: DRV\4H0-907-801.clb
Part number SW: 4H0 907 801 H, HW: 4H0 907 801 A.
Component: EPB-4 H04 0015
Revision: -------- Serial Number: 00000001234262
ASAM Dataset: EV_ParkBrake 001028
ROD: EV_ParkiBrake_VW51.rod
VCID: 2D553F287C9626E757-8078

No error codes found.

"Der schnelle braune Fuchs springt über den faulen Hund."
Address 55: Headlight range adjustment (J745) Label file:| DRV\4H4-907-357-V2.clb
Part number SW: 4H4 907 357 B, HW: 7P6 907 357 B.
Component: MxB-ECU 001 0049
Revision: -------- Serial Number: --------------
Encoding: 02F2022022130200
Operating number: WSC 02391 785 00200
ASAM Dataset: EV_HeadlRegulAUDIMXBAU64X 004002
ROD: EV_HeadlRegulAUDIMXBAU64X_004_AU64.rod
VCID: 316D235860AE420773-8064

Performance module 1 for LED headlights, left side.
Subsystem 1 - Part number SW: 7PP 941 472 G, HW: 7PP 941 472 G, Label file: 3D0-941-329.CLB.
Component: LED LeiMo li. H07 7540
Encoding: E00300

Performance module 1 for LED headlights, right side.
Subsystem 2 - Part number SW: 7PP 941 472 G, HW: 7PP 941 472 G, Label file: 3D0-941-329.CLB.
Component: LED LeiMo re. H07 7540
Encoding: E00300

Performance module 1 for left-hand matrix headlights:
Subsystem 3 - Part number SW: 4H0 941 329 A, HW: 4H0 941 329 A, Label file: 3D0-941-329.CLB.
Component: MxB LeiMo left. H03 0030
Encoding: E00300

Performance module 1 for right-hand matrix headlights:
Subsystem 4 - Part number SW: 4H0 941 329 A, HW: 4H0 941 329 A, Label file: 3D0-941-329.CLB.
Component: MxB LeiMo re. H03 0030
Encoding: E00300

No error codes found.

"Der schnelle braune Fuchs springt über den faulen Hund."
Address 56: Radio (R) Label file: . DRV\4F0-035-0xx-56.clb
Part number SW: 4GD 035 056 J, HW: 4GD 035 056.
Part: Radio U STD H60 0133.
Revision: AB001007 Serial number: 159J70E7553294
Encoding: 010003020100000001
Operating number: WSC 02391 785 00200
VCID: 3C73026CBFECBF6FD0-8068

No error codes found.

"Der schnelle braune Fuchs springt über den faulen Hund."
Address 5B: Rear passenger seat adjustment (J877)
Label file: None.
Part number SW: 4H0 959 860 Part number HW: 4H0 959 860
Component: MEM-BFS-Base H06 0158
Revision: AA000000 Serial Number: 00000107650080
Encoding: 001896800000700D0A00392038193A2039203B3B382020
Operating number: WSC 02391 785 00200
VCID: 71EDE358A82E020733-8024

No error codes found.

"Der schnelle braune Fuchs springt über den faulen Hund."
Address 5F: Information selection. I (J794) Label file: . DRV\4E0-035-6xx-5F.clb
Part number SW: 4H0 035 670 S, Part number HW: 4H0 035 670 P.
Part: H-BNT-EU H47 0814
Revision: -------- Serial Number: 179J30E7522670
Encoding: 02010000000BF9EF7DB0CB1E00000003080001000000000000
Operating number: WSC 02391 785 00200
VCID: 34632A4C97BC772F18-8060

Subsystem 1 - Part number: 8R0 060 884 BT
Part number: EUR 2014 1903.

Subsystem 2 - Part number SW: 4H0 919 604 G, HW: 4H0 919 604 G.
Component: DU8 D4 SV NB H48 0021
Serial number: AUZ8ZDEN1004WYO

Subsystem 3 - Part number SW: 4H1 919 600 H, HW: 4H1 919 600.
Part number: E380 BDT D4 H09 0065.
Serial number: 00000000174873

Subsystem 4 - Part number: 8R0 060 961 G.
Component: CD Database 5950

Sure, here is the translation of the text from German to English:

"1 error found:"
01524 - Antenna for telephone.
011 - Interruption - Sporadic.
Environmental conditions:
Error status: 00101011
Error priority: 7
Error frequency: 4
Lost Count: 42
Mileage: 67339 km
Time: 0
Date: 2022.07.20
Time: 15:12:11

Environmental conditions:
Voltage: 12.50 V

"Der schnelle braune Fuchs springt über den faulen Hund."
Address 62: Door electric, high, left (J388)) Label file: .4H0-959-795.clb
Part number SW: 4H0 959 795 D. Part number HW: 4H0 959 795 D.
Component: TSG HL H07 0280
Revision: -------- Serial Number: 0000121162960
Encoding: 010F1E01420062C202083006
Operating number: WSC 02391 785 00200
VCID: 3C73026CBFECBF6FD0-8068

No error codes found.

"Der schnelle braune Fuchs springt über den faulen Hund."
Address 6C: Rear view camera (J928) Label file: * None
Part number SW: 4H0 907 428 D, Part number HW: 7P6 907 441 F.
Component: TopView H07 0330
Revision: 11001001 Serial Number: 82330JF0183805
Encoding: 020D000001010000000102000000
Operating number: WSC 02391 785 00200
ASAM Dataset: EV_CamerSysteTopViewAUDI 008027
ROD: EV_CameraSystemTopViewAUDI_008_AU64.rod
VCID: 2E57382471905DFF6E-807A

No error codes found.

"Der schnelle braune Fuchs springt über den faulen Hund."
Address 6D: Rear door (----) Label file:| DRV\4H0-959-107.clb
Part number SW: 4H0 959 107 AC. Part number HW: 4H0 959 107 AC.
Component: HDSG Module H12 0049
Revision: 10012001 Serial Number: 289400488
Encoding: 021004C020
Operating number: WSC 02391 785 00200
ASAM Dataset: EV_DeckLidContrUnit 001032
ROD: EV_DeckLidContrUnit.rod
VCID: 6FE9E520B61A14F725-803A

No error codes found.

"Der schnelle braune Fuchs springt über den faulen Hund."
Address 6F: Comfort System II (J773) Label file: * None
Part number SW: 4H0 907 412 Part number HW: 4H0 907 412
Component: ALM H05 0004
Revision: -------- Serial Number: 000000166895
Encoding: 200000
Operating number: WSC 02391 785 00200
ASAM Dataset: EV_Ambie 001008
FILE: EV_Ambie.rod
VCID: 63C199106AD2A097B1-8036

No error codes found.

"Der schnelle braune Fuchs springt über den faulen Hund."
Address 72: Door electric, high, right (J389) Label file: .4H0-959-795.clb
Part number SW: 4H0 959 795 D. Part number HW: 4H0 959 795 D.
Component: TSG HR H07 0280
Revision: -------- Serial Number: 0000121164274
Encoding: 010F1E01420062C202083006
Operating number: WSC 02391 785 00200
VCID: 3C73026CBFECBF6FD0-8068

No error codes found.

"Der schnelle braune Fuchs springt über den faulen Hund."
Address 81: Selector lever (J587) Label file: 3Y0-927-731.clb
Part number SW: 4H1 927 731 A. Part number HW: 4H1 927 731 A.
Component: GSM-LL H09 0083
Revision: 0L0D5015 Serial Number: SN141008 0089
ASAM Dataset: EV_GSM2x3Mono 001017
ROD: EV_GSM2x3Mono_AU64.rod
VCID: 2B513130428228D749-807E

No error codes found.

"Der schnelle braune Fuchs springt über den faulen Hund."
Address 85: Camera Control Unit (J852) Label file:| DRV\7P6-907-217.clb
Part number SW: 4H0 907 217 F, HW: 4H0 907 217 A.
Component: DPC-SG H27 0081
Revision: -------- Serial Number: 262130025421000
Encoding: EA160000
Operating number: WSC 02391 785 00200
ASAM Dataset: EV_OnBoardCamerDPC 001007
ROD: EV_OnBoardCamerDPC.rod
VCID: 2C53322C478C2FEF40-8078

No error codes found.

"Der schnelle braune Fuchs springt über den faulen Hund."
Address 88: Multi-contour driver's seat (J873)
Label file: * None
Part number SW: 4H0 907 182 H HW: 4H0 907 182 H
Component: IVB H07 0042
Serial number: 00018593027702.
Encoding: 662FF2
Operating number: WSC 02391 785 00200
ASAM Dataset: EV_IVBDriveSideFrnt 001003
ROD: EV_IVBDriveSideFront.rod
VCID: 2F692520769A54F765-807A

No error codes found.

"Der schnelle braune Fuchs springt über den faulen Hund."
Address 89: Front passenger multi-contour seat (J872)
Label file: * None
Part number SW: 4H0 907 182 H HW: 4H0 907 182 H
Component: IVB H07 0042
Serial number: 00018593008902.
Encoding: 262FF2
Operating number: WSC 02391 785 00200
ASAM Dataset: EV_IVBPasseSideFrnt 001003
ROD: EV_IVBDriveSideFront.rod
VCID: 2F692520769A54F765-807A

No error codes found.

"Der schnelle braune Fuchs springt über den faulen Hund."
Address 8A: Rear left multi-contour seat (J875)
Label file: * None
Part number SW: 4H0 907 182 G. Part number HW: 4H0 907 182 G.
Component: IVB H08 0042
Serial number: 00018468235002.
Encoding: 202F00
Operating number: WSC 02391 785 00200
ASAM Dataset: EV_IVBDriveSideRear 001003
ROD: EV_IVBDriveSideFront.rod
VCID: 2E57382471905DFF6E-807A

No error codes found.

"Der schnelle braune Fuchs springt über den faulen Hund."
Address 8B: Distance Control 2 (J428) Label file:| DRV\4H0-907-561.clb
Part number SW: 4H0 907 541 C, HW: 4H0 907 541.
Component: ACC3 H21 0032
Serial number: 00000000000000
Encoding: 7E04020201
Operating number: WSC 02391 785 00200
ASAM Dataset: EV_AdaptCruisContr2AU64X 002021
ROD: EV_AdaptCruisContr2AU64X_002.rod
VCID: 295DCB38487E3AC7BB-807C

No error codes found.

"Der schnelle braune Fuchs springt über den faulen Hund."
Address 8D: Rear right multi-contour seat (J874)
Label file: * None
Part number SW: 4H0 907 182 G. Part number HW: 4H0 907 182 G.
Component: IVB H08 0042
Serial number: 00018468276901.
Encoding: 202F00
Operating number: WSC 02391 785 00200
ASAM Dataset: EV_IVBPasseSideRear 001003
ROD: EV_IVBDriveSideFront.rod
VCID: 2E57382471905DFF6E-807A

No error codes found.

"Der schnelle braune Fuchs springt über den faulen Hund."
Address 8E: Image Processing (J851) Label file:| 4H0-907-107-V2.clb
Part number SW: 4H0 907 107 H
Part number HW: 4H0 907 107
Component: BV-SG H33 0090
Serial number: 005000621610147
Encoding: 02C0BB001111
Operating number: WSC 02391 785 00200
ASAM Dataset: EV_BC7 001001
ROD: EV_BC7.rod
VCID: 2C53322C478C2FEF40-8078

No error codes found.

"Der schnelle braune Fuchs springt über den faulen Hund."
Address 8F: Seat belt pretensioner, left (J854)
Label file: 4H0-980-94x-RGS.clb
Part number SW: 4H0 980 945 B, Part number HW: 4H0 980 945 C.
Component: RGS-VL H13 0080
Encoding: 0066F609031F0376070308014240C2010000
Operating number: WSC 02391 785 00200
ASAM Dataset: EV_RGS_L 002004
ROD: EV_RGS_L.rod
VCID: 316D235860AE420773-8064

No error codes found.

"Der schnelle braune Fuchs springt über den faulen Hund."
Address 90: Seat belt pretensioner, right (J855)
Label file: 4H0-980-94x-RGS.clb
Part number SW: 4H0 980 946 B, Part number HW: 4H0 980 946 C.
Component: RGS-VR H13 0080
Encoding: 0066F609031F0376070308014240C2010000
Operating number: WSC 02391 785 00200
ASAM Dataset: EV_RGS_R 002004
ROD: EV_RGS_R.rod
VCID: 326F2C5465A8791F0A-8066

No error codes found.

"Der schnelle braune Fuchs springt über den faulen Hund."
Address AC: Reducing agent dosing unit. (J880)
Label file: 4G0-907-355.clb
Part number SW: 4H0 907 355 D, Part number HW: 4G0 907 355 B.
Component: SCR Control Unit G2 H10 0012
Revision: 00000000 Serial number: 142480216
ASAM Dataset: EV_RDCMA00100 008040
ROD: EV_RDCMA00100.rod
VCID: 2D553F287C9626E757-8078

No error codes found.

End----------------------------(Duration: 08:16)-----------------------------

21-08-2022, 12:42 Subject: Signal too slow, signal too fat 3.0 TDI CTBA

Hello,

The combination of "signal too rich" and "signal too slow" suggests that the probe is contaminated with dirt or oil.
If a thick layer of soot or oil residue is present on the probe, it's also clear that the initial signal will become sluggish because the exhaust gases can no longer properly reach the sensor.

Does the engine produce blue smoke from the exhaust? Normal oil consumption or not?

If everything seems okay and the other cylinder bank appears to be working fine, you should check if the intake system (intercooler, all intake pipes, possibly bank-specific EGR valves/swirl flaps) is functioning correctly.
I can easily imagine that the problematic cylinder bank is receiving too little combustion air due to a leak in the intercooler system, which is why it's producing more soot than usual, and in the medium term, the oxygen sensor will likely become faulty.

If tuning, please ensure that the EGR and the heater for the sensor are still functioning correctly.

Best regards, Rainer.

Last edited on 21-08-2022, 12:50, edited 1 time in total.

Hello,

Thank you for the tips.

When I replaced the probe about 2 months ago, it was completely covered in rust.

It has no oil consumption and does not produce blue smoke.

He doesn't have any modifications.

There was no oil on the intake hose in front of the turbo.

What often happens is that the fans continue to run even when the car is stopped. (However, recently the temperature has consistently been above 30°C, and I mostly drive in the city.)

By the way: Since the errors always occur at 70°C, I checked the temperatures.

In the combined reading, it shows 86.9° via VCDS, but in the main display, it's always only 69 or 70, and it fluctuates.

21-08-2022, 12:52 Subject: Signal too slow, signal too fat 3.0 TDI CTBA

Quote:

When I replaced the probe about 2 months ago, it was completely covered in rust.

Okay, so you know why she didn't want to anymore. Okay, identify the leaking cylinder bank and shut it off.

Best regards, Rainer.

22-08-2022, 16:30 Subject: Signal too slow, signal too fat 3.0 TDI CTBA

I took it to Audi, and they said the DPF is defective and needs to be replaced, which will cost around 4500.

Is it believable that the DPF is clogged, and that this is causing the sensor to become dirty?

With only 70,000 km?

22-08-2022, 20:36 Subject: Signal too slow, signal too fat 3.0 TDI CTBA

atomicfan wrote:

I took it to Audi, and they said the DPF is defective and needs to be replaced, which costs around 4500.

Is it believable that the DPF is clogged, and that this is causing the sensor to become dirty?

With only 70,000 km?

It is unlikely to find original software in the engine control unit.

24-08-2022, 9:55 Subject: Signal too slow, signal too fat 3.0 TDI CTBA

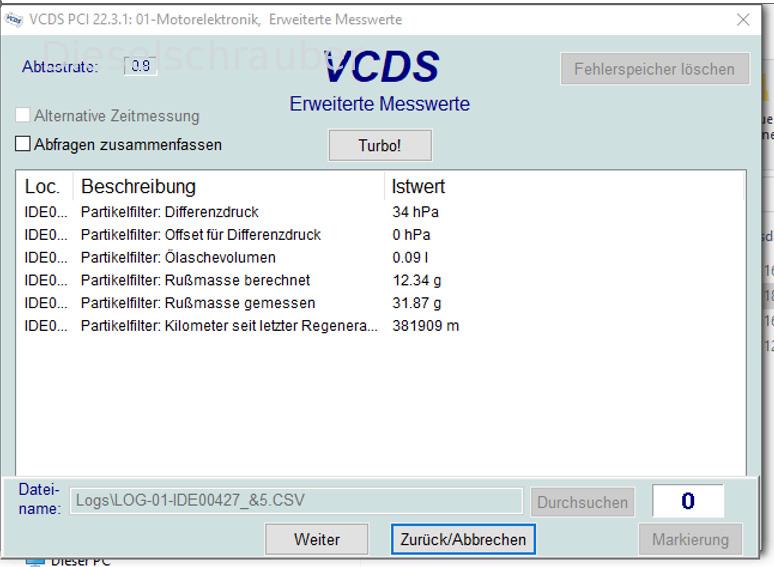

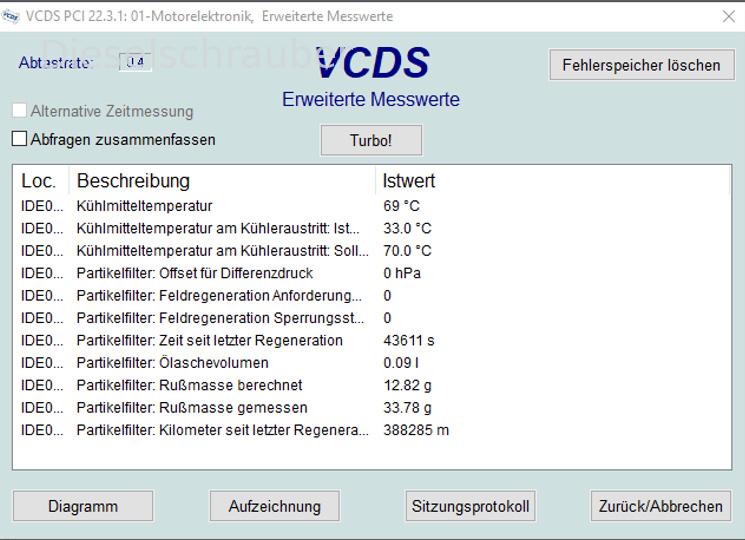

What do you think about the following DPF data?

Last edited on 24-08-2022, 10:47, edited 2 times in total.

Hello.

Okay, I'm ready. Please provide the German text you want me to translate.

Your engine control unit (ECU) believes that the oil level is 0.09 liters, which is equal to 90 milliliters.

"388km since the last regeneration is also a good value. Assuming these aren't fake values due to improper modifications, I would look at the oxygen sensor heater." A picture of the old probe would also be informative.

Best regards, Rainer.

24-08-2022, 11:28 Subject: Signal too slow, signal too fat 3.0 TDI CTBA

Hello,

Thank you for your help.

Unfortunately, the old probe was disposed of.

Audi cleaned and reinstalled the current alternator.

Audi says that the new DPF has relocated the sensor, which should prevent it from becoming as clogged with soot. However, if that's the case, then wouldn't many more vehicles be experiencing the same problem?

07-08-2024, 9:34 Subject: Signal too high, error code P2196

Hello Rainer,
I have a question about the error described by "atomicfan." "The error code P2196 is reported, indicating a 'fuel mixture too rich' condition."
Looking at the data for this error, it seems to occur during the so-called "thrust" mode, because the normalized load value is 0% and the average injection amount is 0 mg/stroke. The question is, where is the engine getting fuel during thrust mode? Is a nozzle leaking? Is too much fuel coming in through the crankcase ventilation system? Or am I completely wrong in my understanding?

Regards,
audifriend

07-08-2024, 18:13 Subject: Re: Signal too rich, error code P2196

audifrend wrote:

Hello Rainer,
I have a question about the error described by "atomicfan." "The error code P2196 is reported, indicating a 'fuel mixture too rich' condition."
Looking at the data for this error, it seems to occur during the so-called "thrust" mode, because the normalized load value is 0% and the average injection amount is 0 mg/stroke. The question is, where is the engine getting fuel during thrust mode? Is a nozzle leaking? Is too much fuel coming in through the crankcase ventilation system? Or am I completely wrong in my understanding?

Regards,
audifrend

I suspect that the blasted probe is simply measuring nonsense.
