Okay, I've unexpectedly been offered a nice, warm, and very clean workshop for a week. I'll be replacing the seals on the PD elements myself. One day I'll remove them, on other days I'll have them cleaned by Bosch, and then on another day I'll reinstall them. I just need time and the right "mood" for this kind of work.
I'll get back to you when I have results.

Quote:

I will replace the seals of the PD elements myself.

Following the principle of "Never touch a running system," pressure loss at the pump-injector units should only be checked if absolutely necessary.
This is done using a measuring device and by clamping the return line.
PD installation and removal should be handled by qualified professionals.

RedR32 wrote:

Quote: I will replace the seals of the PD elements myself. Following the principle of "Never touch a running system," pressure loss at the pump-injector units should only be checked if absolutely necessary. This is done using a measuring device and by clamping the return line. PD removal and installation should be handled by qualified professionals.

That's only likely to happen if something is significantly leaking.

I did some research and made some phone calls...

Cleaning in an ultrasonic bath at a Bosch service center costs approximately 100-120 euros, I was told.
The friendly service technician from Bosch couldn't quite explain to me why that was the case.

My VW dealer wants to charge 23 euros for cleaning the 4 injectors in an ultrasonic bath.

One seems too expensive to me, the other seems too cheap - what can you expect from VW for 23 euros? Certainly not much, based on my previous experience.

The items are placed into the device along with the cleaning solution, and the "ON" switch is activated.
The right cleaning solution and sufficient power from the ultrasonic cleaner are crucial, otherwise the process is pointless.

I find it outrageous that some people in Germany charge between 100 and 120 euros for something that takes only 2 minutes of work and involves writing an invoice.
No one expects you to stand next to someone all the time and pick your nose.

The cost is mainly due to the cleaning solution (which can be used multiple times) and the ultrasonic device, which is not exactly cheap.

If the lambda values are within the acceptable range under full load, you can skip the cleaning and go grab a beer instead.

Best regards, Rainer.

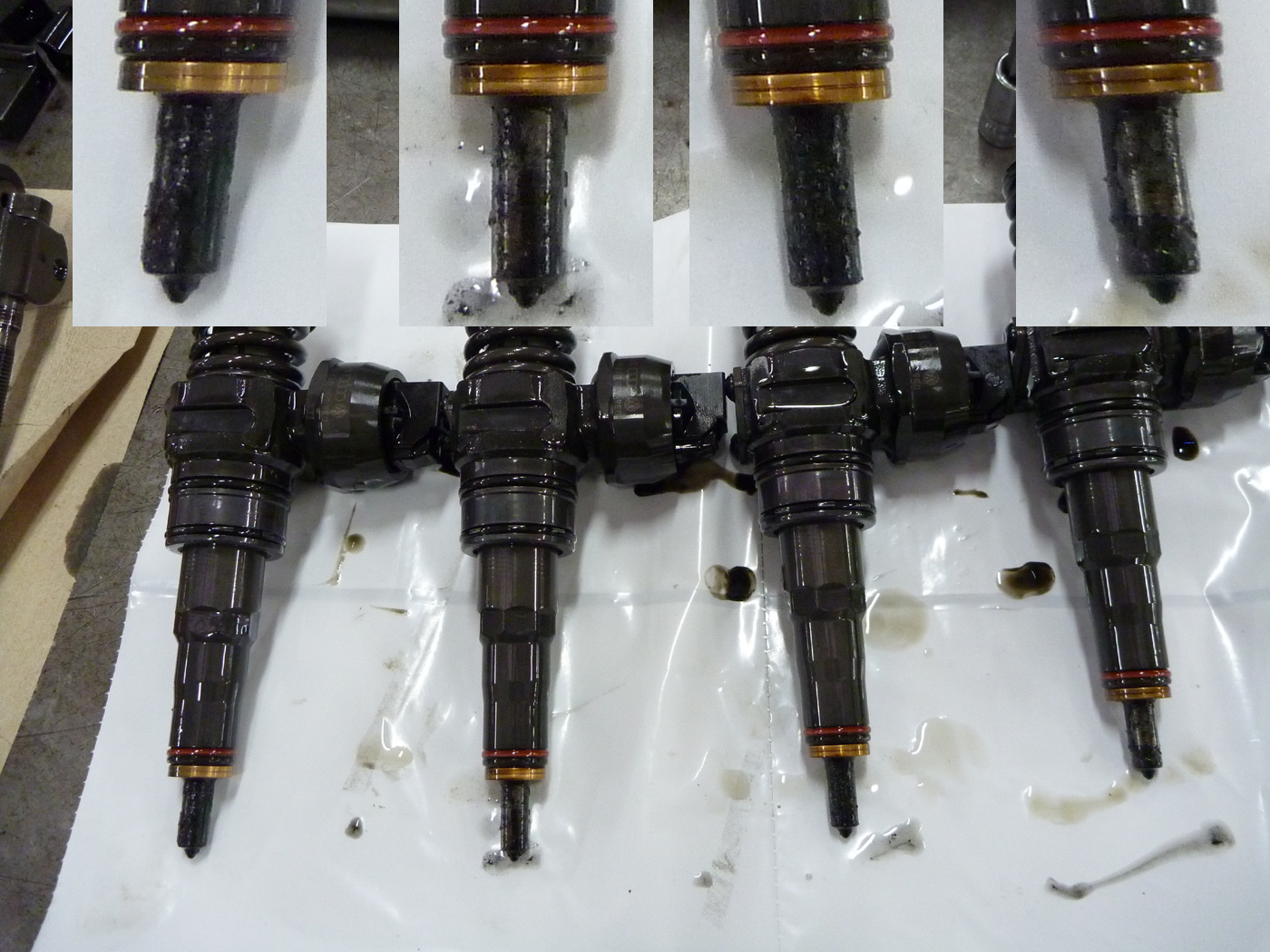

"I got the job done with the help of someone who had already done it 100 times at VW. He gave me a lot of practical tips that weren't in the manual. Apparently, there have been more problems in the past with company cars used by the "green-uniform" group, specifically with clogged PD (piezo injector) elements."

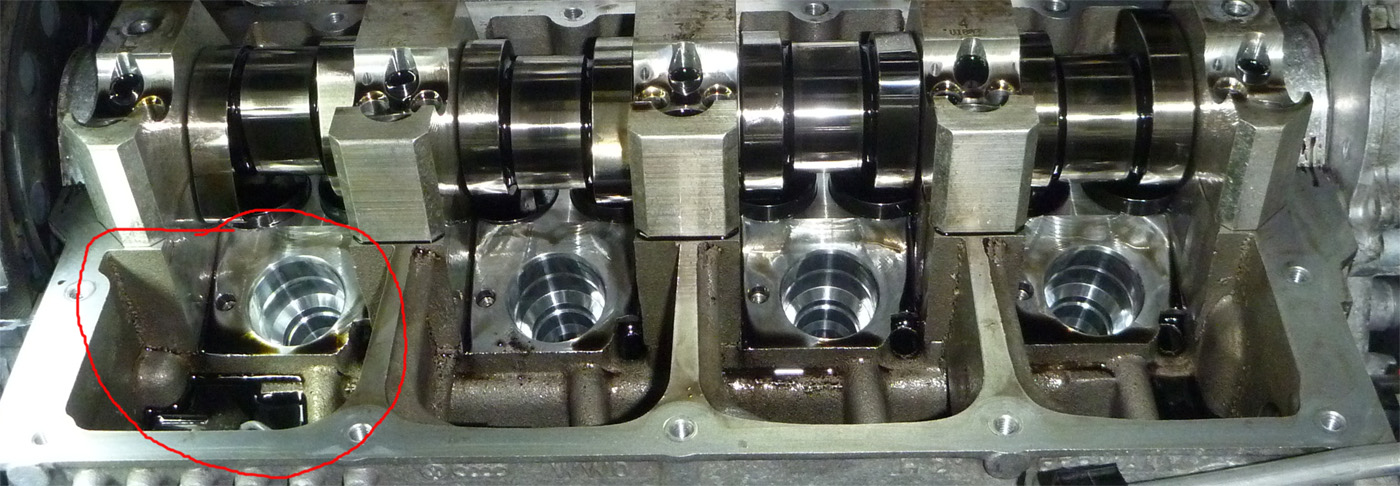

"During the replacement of the sealing rings, nothing unusual was noticed. However, the slightly lighter discoloration of the engine block material around the first pressure-dependent element might have been noticeable, but my colleague said it probably didn't mean much."

My experienced colleague assessed that the level of soot was low for a car with 92,000 km. He also noticed that the soot was very easy to remove – much easier than usual. There were no brown, hardened deposits present.

Okay, I'm going to change the oil now, and I'll get back to you once the oil has been analyzed, like I did last time (every 7,000 km). I'm curious to see the results.

Try removing your diesel filter and see if it's black! If it is, you should check your tandem pump . In my BMM engine, it at least led to a significant "oil overflow" problem.
See https://community.dieselschrauber.org/en/viewtopic.php?t=26748.

Sure, here is the translation of the text from German to English:

"LG" is an abbreviation for "Liebe Grüße," which means "Best regards" or "Best wishes" in English.

"The diesel filter was just replaced during the 90,000 km service - it looked almost new. Thanks to ARAL Premium Diesel (clear), I've been using it exclusively for 90,000 km without ever using anything else."

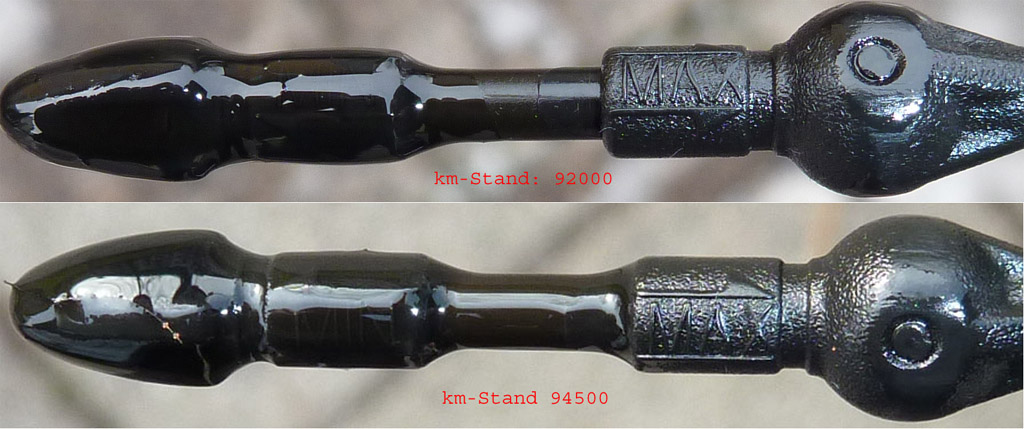

Some people may have differing opinions about my method of documenting oil level changes using photos, but for an initial assessment, it's perfectly sufficient for me. As mentioned earlier, the car is placed on the truck scale at the gravel plant overnight without the oil dipstick. In the morning, the clean dipstick is briefly inserted and removed, and a photo is taken. I think this is a perfect method.

After I re-sealed the PD injectors and then changed the oil, and after driving 2500 km, I can be quite certain that the seals of the PD injectors were not the cause of the diesel fuel leaking into the engine oil.
The lab report will likely confirm the increase caused by the fuel, as it has in the past (I will then have it checked again after 7000 km).

Now, the only remaining possible cause of the leak is the tandem pump, right?

Update: On Monday (March 11, 2013), the tandem pump will be inspected, and at my request, it will definitely be replaced with a new one. If the old pump is deemed "in good condition," I can sell it on eBay.
If the device is found to be "leaking," the warranty will be invoked. I will report on the results of the inspection.
After a significant increase in performance after only 2500 km, I can do without the laboratory report (and save money), and I certainly don't want to wait until 7000 km of mileage to see any results.

Why does the car need to be placed on the truck scale at the gravel plant?

Herbert wrote:

Why does the car have to be on the truck scale at the gravel plant?

Because all the other locations aren't perfectly horizontal, and reading the oil level using the dipstick is the most reliable way to do it?
haithamina
P.S. Personally, I would never leave a car standing for a long time without the dipstick inserted. It might seem petty...

haithamina wrote:

Herbert wrote: Why does the car have to be on the truck scale at the gravel plant? Because all the other locations aren't perfectly horizontal, and reading the oil level using the dipstick is the most reliable way to do it? haithamina PS I personally would never leave a car standing for a long time without the oil dipstick plugged in. This might seem petty...

1. Correctly identified.

2. At first, I also felt guilty, even though the clean, removed measuring rod was left on the driver's seat overnight, but...
I got one from the junkyard and cut off the top part, and that's how it is.
Just in case something goes wrong, or if someone messes with me.
and someone rushes me to the hospital in a car after an accident.
at least secured

It's slowly becoming a lost cause.
hg
Herbert.

So, I finally managed to find my way to Castrol's lab (via email) and I inquired about their opinion on the 10% diesel content in the engine oil after a mileage of 7000 km.

I then received the following information:

Thank you for your email.
It is difficult to specify an exact threshold at which the ingress of diesel fuel into the engine oil, as with Castrol EDGE 5W-30, can lead to engine damage.
For the 2.0-liter TDI engine produced by Volkswagen AG, experience shows that percentages of up to 18% in the engine oil have been used without causing any damage. However, factors such as mileage, driving style, and fuel quality also contribute to the engine's wear and tear. Conversely, we have no evidence that the addition of 10% diesel fuel will definitely damage the engine.

We hope that this information has been helpful to you, and we wish you safe travels at all times!

"Na Prost Mahlzeit" - An 18% diesel content in 4.3 liters is almost 0.8 liters.
Okay guys, if you ever find yourselves running low on oil in the future, you can safely use the diesel pump to fill the missing volume by inserting the nozzle into the oil filler neck and adding diesel.

Quote:

For the 2.0-liter TDI engine of Volkswagen AG, experience shows that percentages of up to 18% in the engine oil have been used without causing any damage.

...which would likely render any specifications for motor oil irrelevant.

According to this, you could practically add almost anything that can be called a modern motor oil.

I wouldn't overestimate the problem. Diesel fuel simply doesn't belong in engine oil in those quantities.

Should automotive manufacturers come up with something to enable regeneration without the diesel fuel condensing, perhaps by using an additional injector in the exhaust system outside the engine? Maybe they should pay attention and see what the competition is doing.
