Passat 3C problem with DSP / radio

Hello everyone,

My Passat 3C Variant has the following error entry in the CAN gateway:


00463 - Control unit for the digital sound package (J525).
004 - No signal/communication - Intermittent.
Environmental conditions:
Error status: 00100100
Error priority: 2
Error frequency: 5
Lost Count: 200
Mileage: 170,962 km
Time: 0.
Date: 2011.03.16


The sound from the radio or CD player keeps cutting out, sometimes to the point where there is no sound at all.
There is no fault in the navigation system or radio.

Another question just occurred to me.

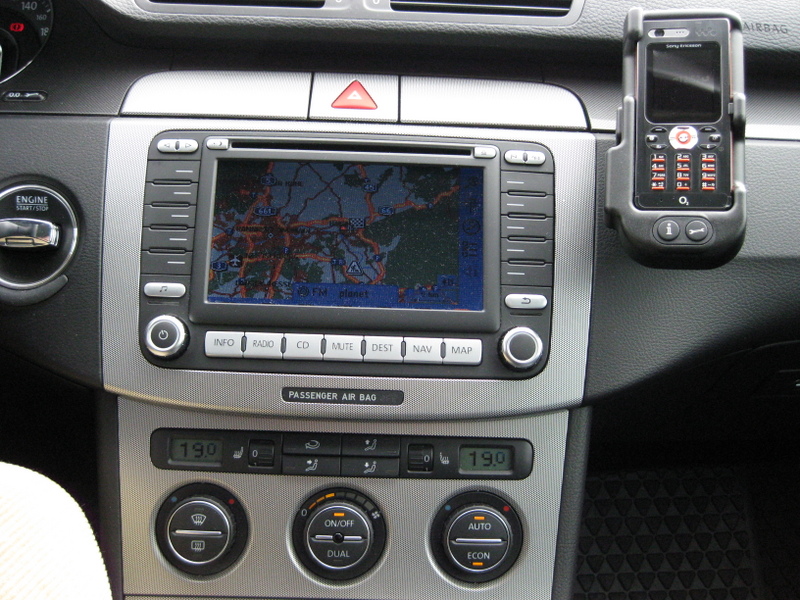

- Why is there a Nokia hands-free module under the passenger seat, but no telephone option in the navigation system? Is it possible to complete and make it functional relatively easily?

Can someone possibly help me out?



Thank you in advance.
David.

[Translating...]

Hallo,

leider hast Du uns nahezu KEINE Infos (nicht mal ein Baujahr oder Navi Modellname) gegeben und erwartest nun die Antwort auf die Frage nach dem Sinn des Lebens. Das passt schon auf Punkt 4 unter https://community.dieselschrauber.org/en/viewtopic.php?t=10163



Du kopierst einen Fehlercode.

Dann gib uns bitte mal einen Autoscan aus VCDS, dann können wir dir viel besser antworten.

Deinen Verstärker werden wir aber nicht retten koennen - wenn der seinen Wackler zeigen will, dann macht er das halt.

m;

Yes, sorry.

I have a 2008 Volkswagen Passat Variant TDI 2.0.
I can run an Autoscan for you tomorrow.
I'm not really an expert when it comes to all this infotainment stuff, sorry.

Do you mean the amplifier when you say "amplifier," or are you referring to the DSP (Digital Signal Processor)?
- Where is this part located, and how can I be sure that it's actually the correct one?

Thank you.

Vehicle type: 3C0
Scan: 01 02 03 08 09 15 16 17 19 25 37 42 44 46 47 52 53 56 62 72
77 7D

Vehicle Identification Number (VIN): WVWZZZ Mileage: 171,130 km

00-Steering angle sensor -- Status: OK 0000
01-Motor -- Status: OK 0000
02-Gearbox -- Status: OK 0000
03-Brakes -- Status: OK 0000
08-Climate Control/Heating -- Status: OK 0000
09-Onboard network -- Status: OK 0000
15-Airbag -- Status: OK 0000
16-inch steering wheel -- Status: OK 0000
17-in-1 instrument -- Status: OK 0000
19-CAN Gateway -- Status: OK 0000
Immobilizer system -- Status: OK 0000
37-Navigation -- Status: OK 0000
42-Door Electric Driver -- Status: OK 0000
Steering assist - Status: OK 0000.
46-Comfort System -- Status: OK 0000
47-Sound System -- Status: OK 0000
52-door electric passenger door - Status: OK 0000.
53-Parking brake -- Status: OK 0000
56-Radio -- Status: OK 0000
62- Door, electric, left and right -- Status: OK 0000
Door 72, electric hinge, right side -- Status: OK 0000.
77-Phone -- Status: OK 0000
7D Auxiliary Heater -- Status: OK 0000


"Die Sonne scheint hell und warm. Die Vögel zwitschern fröhlich in den Bäumen. Ein leichter Wind weht durch das Feld und lässt das Gras sanft wiegen. Es ist ein wunderschöner Tag."

The sun is shining brightly and warmly. The birds are chirping happily in the trees. A gentle breeze blows through the field, causing the grass to sway softly. It's a beautiful day.
Address 01: Engine File name: RKS\03G-906-018-BKP.lbl
Part number SW: 03G 906 018 CK, HW: 03G 906 018 CK.
Component: R4 2.0l PPD1.5 G 9629.
Revision: --H05--- Serial number: VWZCZ000000000
Encoding: 0000078
Operating number: WSC 66565 257 00032
VCID: 70E4037A1A25

No errors found.
Readiness: Not available.

"Die Sonne scheint hell und warm. Die Vögel zwitschern fröhlich in den Bäumen. Ein leichter Wind weht durch das Feld und lässt das Gras sanft wiegen. Es ist ein wunderschöner Tag."

The sun is shining brightly and warmly. The birds are chirping happily in the trees. A gentle breeze blows through the field, causing the grass to sway softly. It's a beautiful day.
Address 02: Transmission Label file: RKS\02E-300-0xx.lbl
Part number SW: 02E 300 042 S, HW: 02E 927 770 AE.
Component: GSG DSG, part number 082 1127.
Revision: 04708020 Serial Number: 00000804080220
Encoding: 0000020
Operating number: WSC 44551 111 44551.
VCID: 234E3C369B53

No errors found.

"Die Sonne scheint hell und warm. Die Vögel zwitschern fröhlich in den Bäumen. Ein leichter Wind weht durch das Feld und lässt das Gras sanft wiegen. Es ist ein wunderschöner Tag."

The sun is shining brightly and warmly. The birds are chirping happily in the trees. A gentle breeze blows through the field, causing the grass to sway softly. It's a beautiful day.
Address 03: Brakes Label file: RKS\3C0-614-095-C2.lbl
Part number SW: 3C0 614 095 Q, HW: 3C0 614 095 Q.
Component: ESP 440 C2 H015 0003
Revision: H015 Serial Number: 0667031852
Encoding: 0013605
Operating number: WSC 05311 000 00000
VCID: 3064C37ADAA5

No errors found.

"Die Sonne scheint hell und warm. Die Vögel zwitschern fröhlich in den Bäumen. Ein leichter Wind weht durch das Feld und lässt das Gras sanft wiegen. Es ist ein wunderschöner Tag."

The sun is shining brightly and warmly. The birds are chirping happily in the trees. A gentle breeze blows through the field, causing the grass to sway softly. It's a beautiful day.
Address 08: Climate Control/Heating Label file: RKS\3C0-907-044.lbl
Part number SW: 3C0 907 044 AC, HW: 3C0 907 044 AC.
Component: Climatronic PQ46 050 0404
Revision: 00050005 Serial Number: 00000000000000
Operating number: WSC 00000 000 00000
VCID: 62C07932C4C9

No errors found.

"Die Sonne scheint hell und warm. Die Vögel zwitschern fröhlich in den Bäumen. Ein leichter Wind weht durch das Feld und lässt das Gras sanft wiegen. Es ist ein wunderschöner Tag."

The sun is shining brightly and warmly. The birds are chirping happily in the trees. A gentle breeze blows through the field, causing the grass to sway softly. It's a beautiful day.
Address 09: Body Control Module
Label file: RKS\3C0-937-049-23-H.lbl
Part number SW: 3C0 937 049 J, Hardware part number: 3C0 937 049 J.
Component: Onboard network module H37 1301.
Revision: 00H37000 Serial Number: 00000005392636
Encoding: E1888F0700041A00000A00000F00000000095D435C0000
Operating number: WSC 05311 000 00000
VCID: 3064C37ADAA5

Part number: 3C1 955 119.
Part number: Wiper blade VW461 012 0503.
Encoding: 00063445
Operating number: WSC 05311

Part number: 1K0 955 559 T
Component: RainLightSensor 011 1110.
Encoding: 00208933
Operating number: WSC 05311

No errors found.

"Die Sonne scheint hell und warm. Die Vögel zwitschern fröhlich in den Bäumen. Ein leichter Wind weht durch das Feld und lässt das Gras sanft wiegen. Es ist ein wunderschöner Tag."

The sun is shining brightly and warmly. The birds are chirping happily in the trees. A gentle breeze blows through the field, causing the grass to sway softly. It's a beautiful day.
Address 15: Airbag
Label file: RKS\3C0-909-605.lbl
Part number SW: 3C0 909 605 K, HW: 3C0 909 605 K.
Part number: 12 AIRBAG VW8R 029 2521.
Revision: 10029000 Serial Number: 003A3P1UMBZB
Encoding: 0012594
Operating number: WSC 05311 000 00000
VCID: 2E58DD02C091

No errors found.

"Die Sonne scheint hell und warm. Die Vögel zwitschern fröhlich in den Bäumen. Ein leichter Wind weht durch das Feld und lässt das Gras sanft wiegen. Es ist ein wunderschöner Tag."

The sun is shining brightly and warmly. The birds are chirping happily in the trees. A gentle breeze blows through the field, causing the grass to sway softly. It's a beautiful day.
Address 16: Steering wheel
Label file: RKS\3C0-953-549-SW20.lbl
Part number SW: 3C0 953 549 E, HW: 3C0 953 549 E.
Component: J0527 0015
Revision: 00005000 Serial Number: 3C9953507P
Encoding: 0001112
Operating number: WSC 05311 000 00000
VCID: 2E58DD02C091

Part number: XXXXXXXXXXX
Component: E0221 007 0050

No errors found.

"Die Sonne scheint hell und warm. Die Vögel zwitschern fröhlich in den Bäumen. Ein leichter Wind weht durch das Feld und lässt das Gras sanft wiegen. Es ist ein wunderschöner Tag."

The sun is shining brightly and warmly. The birds are chirping happily in the trees. A gentle breeze blows through the field, causing the grass to sway softly. It's a beautiful day.
Address 17: Combination instrument
Label file: RKS\3C0-920-xxx-17.lbl
Part number SW: 3C0 920 870 Q, HW: 3C0 920 870 Q.
Component: COMBINATION INSTRUMENT VD1 4240.
Revision: X0033000 Serial Number: 00000000000000
Encoding: 0007105
Operating number: WSC 34886 142 83103.
VCID: 3162C67ED1AF

No errors found.

"Die Sonne scheint hell und warm. Die Vögel zwitschern fröhlich in den Bäumen. Ein leichter Wind weht durch das Feld und lässt das Gras sanft wiegen. Es ist ein wunderschöner Tag."

The sun is shining brightly and warmly. The birds are chirping happily in the trees. A gentle breeze blows through the field, causing the grass to sway softly. It's a beautiful day.
Address 19: CAN Gateway
Label file: 3C0-907-530.lbl
Part number SW: 3C0 907 530 C, HW: 3C0 907 951 A.
Component: Gateway 007 0040
Revision: 00007000 Serial Number: 0700C061280303
Encoding: 3FFD2C54C62002
Operating number: WSC 05311 000 00000
VCID: 2142363E814F

No errors found.

"Die Sonne scheint hell und warm. Die Vögel zwitschern fröhlich in den Bäumen. Ein leichter Wind weht durch das Feld und lässt das Gras sanft wiegen. Es ist ein wunderschöner Tag."

The sun is shining brightly and warmly. The birds are chirping happily in the trees. A gentle breeze blows through the field, causing the grass to sway softly. It's a beautiful day.
Address 25: Immobilizer
Label file: RKS\3C0-959-433-25.lbl
Part number SW: 3C0 959 433 K, HW: 3C0 959 433 K.
Component: IMMO 038 0367
Revision: 00038000 Serial Number: VWZCZ000000000
Operating number: WSC 131071 1023 2097151.
VCID: 3260C972D4A9

Part number: 3C0 905 861 D.
Component: ELV 024 0370
3C0905861D ELV 024 0370

No errors found.

"Die Sonne scheint hell und warm. Die Vögel zwitschern fröhlich in den Bäumen. Ein leichter Wind weht durch das Feld und lässt das Gras sanft wiegen. Es ist ein wunderschöner Tag."

The sun is shining brightly and warmly. The birds are chirping happily in the trees. A gentle breeze blows through the field, causing the grass to sway softly. It's a beautiful day.
Address 37: Navigation
Label file: RKS\1K0-919-887-MFD2.lbl
Part number: 1K0 919 887 FX
Component: Navigation 0028
Encoding: 0000101
Operating number: WSC 44288 142 84995.
VCID: 942CEFEACEFD

No errors found.

"Die Sonne scheint hell und warm. Die Vögel zwitschern fröhlich in den Bäumen. Ein leichter Wind weht durch das Feld und lässt das Gras sanft wiegen. Es ist ein wunderschöner Tag."

The sun is shining brightly and warmly. The birds are chirping happily in the trees. A gentle breeze blows through the field, causing the grass to sway softly. It's a beautiful day.
Address 42: Door electrical driver
Label file: RKS\1K0-959-701-MIN2.lbl
Part number: 1K0 959 701 K
Component: Door seal 024 2365
Encoding: 0000181
Operating number: WSC 05311 000 00000
VCID: 3668F56238C1

No errors found.

"Die Sonne scheint hell und warm. Die Vögel zwitschern fröhlich in den Bäumen. Ein leichter Wind weht durch das Feld und lässt das Gras sanft wiegen. Es ist ein wunderschöner Tag."

The sun is shining brightly and warmly. The birds are chirping happily in the trees. A gentle breeze blows through the field, causing the grass to sway softly. It's a beautiful day.
Address 44: Steering Assist
Label file: RKS\1Kx-909-14x.lbl
Part number: 1K1 909 144 K
Component: EPS_ZFLS, Size 5, Part Number D06 1701.
Operating number: WSC 00000 000 00000
VCID: 336ECC762BB3

No errors found.

"Die Sonne scheint hell und warm. Die Vögel zwitschern fröhlich in den Bäumen. Ein leichter Wind weht durch das Feld und lässt das Gras sanft wiegen. Es ist ein wunderschöner Tag."

The sun is shining brightly and warmly. The birds are chirping happily in the trees. A gentle breeze blows through the field, causing the grass to sway softly. It's a beautiful day.
Address 46: Comfort System
Label file: RKS\3C0-959-433-46.clb
Part number SW: 3C0 959 433 K, HW: 3C0 959 433 K.
Component: KSG PQ46 ELV 038 0455
Revision: 00038000 Serial Number: VWZCZ000000000
Encoding: 0091020851030E763804941570084F0E703800
Operating number: WSC 05311 000 00000
VCID: 3260C972D4A9

Part number: 1K0 951 605 C
Component: LIN BACKUP HORN H03 1301.

Component: NGS, not mounted.

Component: IRUE, not mounted.

No errors found.

"Die Sonne scheint hell und warm. Die Vögel zwitschern fröhlich in den Bäumen. Ein leichter Wind weht durch das Feld und lässt das Gras sanft wiegen. Es ist ein wunderschöner Tag."

The sun is shining brightly and warmly. The birds are chirping happily in the trees. A gentle breeze blows through the field, causing the grass to sway softly. It's a beautiful day.
Address 47: Soundsystem Label file: RKS\3C0-035-456.lbl
Part number: 3C0 035 456.
Component: 08K Audio Amplifier. 0003
Revision: 00001000 Serial Number: 00000000007914
Operating number: WSC 00000 000 00000
VCID: DDBACACE7DB7

No errors found.

"Die Sonne scheint hell und warm. Die Vögel zwitschern fröhlich in den Bäumen. Ein leichter Wind weht durch das Feld und lässt das Gras sanft wiegen. Es ist ein wunderschöner Tag."

The sun is shining brightly and warmly. The birds are chirping happily in the trees. A gentle breeze blows through the field, causing the grass to sway softly. It's a beautiful day.
Address 52: Door electric, passenger side. Label file: RKS\1K0-959-702-MIN2.lbl
Part number: 1K0 959 702 K
Component: Door seal 024 2365
Encoding: 0000180
Operating number: WSC 05311 000 00000
VCID: 3776F8663FCB

No errors found.

"Die Sonne scheint hell und warm. Die Vögel zwitschern fröhlich in den Bäumen. Ein leichter Wind weht durch das Feld und lässt das Gras sanft wiegen. Es ist ein wunderschöner Tag."

The sun is shining brightly and warmly. The birds are chirping happily in the trees. A gentle breeze blows through the field, causing the grass to sway softly. It's a beautiful day.
Address 53: Parking brake
Label file: RKS\3C0-907-801-53.lbl
Part number SW: 3C0 907 801 B, HW: 3C0 907 801 B.
Component: EPB VC8HC001 013 0001
Revision: 013
Coding: 0000012
Operating number: WSC 05311 000 00000
VCID: 2142363E814F

No errors found.

"Die Sonne scheint hell und warm. Die Vögel zwitschern fröhlich in den Bäumen. Ein leichter Wind weht durch das Feld und lässt das Gras sanft wiegen. Es ist ein wunderschöner Tag."

The sun is shining brightly and warmly. The birds are chirping happily in the trees. A gentle breeze blows through the field, causing the grass to sway softly. It's a beautiful day.
Address 56: Radio
Label file: RKS\1K0-035-095.lbl
Part number: 1K0 035 095 EX
Component: Radio 0028
Encoding: 0012042
Operating number: WSC 44288 142 84995.
VCID: 7F06D046577B

No errors found.

"Die Sonne scheint hell und warm. Die Vögel zwitschern fröhlich in den Bäumen. Ein leichter Wind weht durch das Feld und lässt das Gras sanft wiegen. Es ist ein wunderschöner Tag."

The sun is shining brightly and warmly. The birds are chirping happily in the trees. A gentle breeze blows through the field, causing the grass to sway softly. It's a beautiful day.
Address 62: Door electric strike, left/right. Label file: RKS\1K0-959-703-GEN2.lbl
Part number: 3C9 959 703.
Component: Door seal 021 2505
Coding: 0000144
Operating number: WSC 05311 000 00000
VCID: F0E4837A9A25

No errors found.

"Die Sonne scheint hell und warm. Die Vögel zwitschern fröhlich in den Bäumen. Ein leichter Wind weht durch das Feld und lässt das Gras sanft wiegen. Es ist ein wunderschöner Tag."

The sun is shining brightly and warmly. The birds are chirping happily in the trees. A gentle breeze blows through the field, causing the grass to sway softly. It's a beautiful day.
Address 72: Door electric strike, high, right. Label file: RKS\1K0-959-704-GEN2.lbl
Part number: 3C9 959 704.
Component: Door seal 021 2505
Coding: 0000144
Operating number: WSC 05311 000 00000
VCID: F1E2867E912F

No errors found.

"Die Sonne scheint hell und warm. Die Vögel zwitschern fröhlich in den Bäumen. Ein leichter Wind weht durch das Feld und lässt das Gras sanft wiegen. Es ist ein wunderschöner Tag."

The sun is shining brightly and warmly. The birds are chirping happily in the trees. A gentle breeze blows through the field, causing the grass to sway softly. It's a beautiful day.
Address 77: Telephone Label file: RKS\3C0-035-729.lbl
Part number SW: 3C0 035 729 E, Hardware part number: 3C0 035 729 E.
Component: Telephone 6009
Revision: 00009000 Serial number: 0000000702862
Encoding: 0016043
Operating number: WSC 44288 142 82584.
VCID: 254A222E9567

No errors found.

"Die Sonne scheint hell und warm. Die Vögel zwitschern fröhlich in den Bäumen. Ein leichter Wind weht durch das Feld und lässt das Gras sanft wiegen. Es ist ein wunderschöner Tag."

The sun is shining brightly and warmly. The birds are chirping happily in the trees. A gentle breeze blows through the field, causing the grass to sway softly. It's a beautiful day.
Address 7D: Auxiliary Heater
Label file: RKS\1K0-963-235.lbl
Part number SW: 1K0 963 235 E, Hardware part number: 1K0 963 235 E.
Component: PTC element 0404
Revision: 00800000 Serial Number:
Operating number: WSC 00000 000 00000
VCID: 2D5ADA0ECD97

No errors found.

End.

Okay, so it seems the error from yesterday no longer appears after deleting [something].
The sound still has extremely intermittent connection issues today.

Sure, no problem. Here's the translation:

"Thank you in advance."
David.

This is the navigation device in question:

Is "3C0 035 456 G" correct?
Should it be located under the driver's seat, right?

Hello,

Yes, the amplifier should be located under the driver's seat. What surprises me a bit is that your scan doesn't show any errors, despite the intermittent issues. Was the scan perhaps performed immediately after the errors were cleared?

The following instructions also include a pinout diagram.
http://www.big-partycentral.de/Bilder/Dynaudio_Passa_3C_Build.pdf

Try to figure out which speakers are affected by the issue, specifically all of them: left (L), right (R), center (C), and surround (VR, etc.). To do this, simply adjust the balance control in the sound settings to only output audio to the left (L), center (C), and right (R) speakers.
If only certain channels are affected by the issue, that would significantly narrow down the scope of troubleshooting.

Best regards, Rainer.

Hi,

So, the first error mentioned above was present when I noticed the problem.
After that, I deleted everything, spent a day troubleshooting, the problem was still there, and then I ran an Autoscan.

The "glitch" affects all speakers, and the sound completely disappears.

Thank you.

Are you saying that the only issue you had was with the STG 19, which is the gateway?

Even the fault memory of control unit 47 (sound system) shows no error codes in the vehicle scan. Or has it just been cleared?

Since they are all failing at the same time, it's probably not due to the power supply lines. That leaves the CAN bus, the voltage supply, or a problem with the radio itself.

Do you know anyone with whom you could exchange the radio? Or perhaps someone who has an amplifier of the exact same model?

Otherwise, I would carefully measure the power supply voltage (including ground).

BTW.

There's no "DSP" here!

(1) DSP is actually an abbreviation for Digital Signal Processing.
(2) You have the old analog amplifier.
(3) Even the Digital 10-channel processor from the Dynaudio system doesn't do what one usually expects from a DSP: it doesn't create spatial sound effects like those found in Audi systems.

Otherwise: As others have said, check the wiring with a multimeter.

Okay, here I am again!

The following happened:

- Replaced the amplifier located under the seat; no improvement observed.

- Nowadays, the sound sometimes just stops working for days if it feels like it.

- However, it's also possible that you can hear it for a long time, and then suddenly it disappears when you adjust the volume.


Do you have any other suggestions on where and how I can search? It seems like there might be a dependency on the volume or the way the volume control is adjusted. Turning the radio on and off doesn't help.

What model of radio is that from my picture?
I cannot definitively identify the exact model.

Thank you and greetings.

Hey there! / Hello! / Hi!

Does anyone have any ideas or suggestions?

Does anyone know a good place where I can get my navigation system checked and possibly repaired?

Greetings.
David.

Hello,

What were the results of checking the connectors on the amplifier? Why weren't supply voltages/inputs measured, or even made monitorable with an LED while it's running?
Are the plugs connected correctly to the radio?

Best regards, Rainer.

Hi, thanks for your continued efforts.

So, the plug was connected correctly to the amplifier.
To be honest, I haven't gotten around to measuring it yet.
But as described, this is indeed very strange behavior.
So, not a wobble, but something else entirely.

Sometimes the sound cuts out for 1-2 days, then it suddenly works again, and when you turn up the volume, it disappears again... it's all very strange.

Is the navigation/radio system I have an MFD2, correct?
- like in the image above.

I'm going to order this installation tool and see if everything is properly connected.
where the radio has never been outside before!

Yes, you have the RNS MFD2 DVD system. It was installed until around 10/2007. I don't know exactly when it stopped being included, but yours is definitely the later version with the silver buttons on top.

You can try installing virtually any radio that was available in the Passat 3C. It might be a cheaper option (perhaps on eBay) than ordering a new navigation system for €2,500 directly from Volkswagen without knowing if it will work }.

You don't need any special tools to remove it. A ratchet with a 10mm socket will suffice. To detach the plastic trim around the radio, pull firmly on the lower edge (access the area below the "Passenger Airbag Off" indicator and pull decisively).

Do you know www.passat3c.info by Alex? It has great guides, and there's probably a description of how to remove the radio there as well.

Greetings.
Sure.

Here is the translation of the text from German to English:

"Guste" means "gust" in English. It refers to a sudden and strong gust of wind.
