Hi.

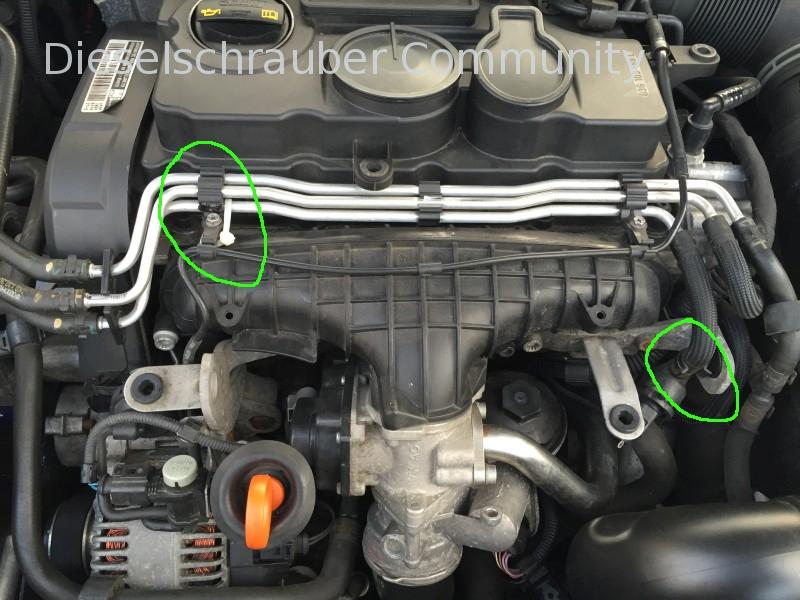

The part number 3C0130308D (these three metal tubes in front of the valve cover) are attached to the two outer brackets on my intake manifold.

One is broken (or has been broken).

Do they really not come individually?
Google is returning a part number, 036103733D, which is described as a "clip."

Can someone tell me more about it?

Thank you.
m;

dieselmartin wrote:

DuckDuckGo returns a part number 036103733D, which is supposed to be a "clip". Can someone tell me more about it? Thank you. m;

3C0130308D was discontinued in 2011 and is now 3C0130308E.
Costs €101.40 gross.

The clip seems to be holding the bundle of pipes in place, and it costs 52 cents including tax.

Thank you.

Can you see if there is one or two?

Because the tube bundle has THREE, two on the outside with threaded flanges, and one on the inside without.

I need the one with the eyelet.

m;

Three. Only one type is available as a replacement.
I'll just order them. They don't cost much, and nothing else is listed.

Thank you, Roger.

I'll figure that out eventually.

It's strange that the bracket suddenly broke, the one that's located just behind the timing chain cover .

Guess what was replaced just a few kilometers ago.

I just hope that I can get the mesh of clips on and around the new one .

m;

Too bad.

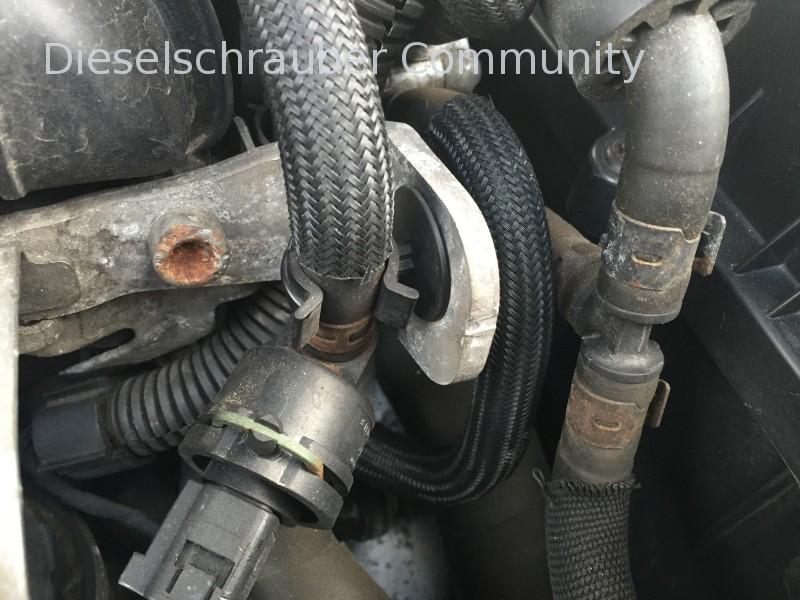

It is not 036103733D.
This is a hose holder attached to the left engine bracket .

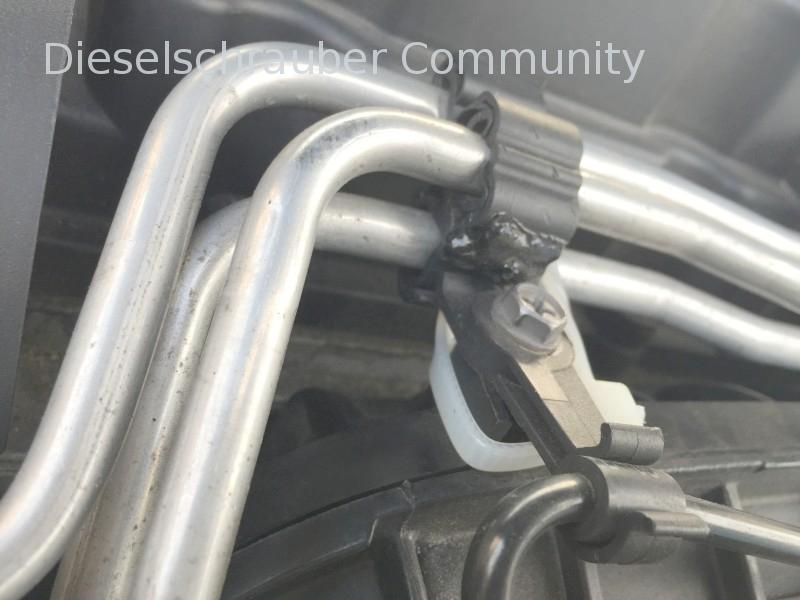

Then, the bracket that was already glued will now have to be secured with a cable tie (oh, how ugly ).

m;

Quote:

I just hope I can get the mesh of clips on and around the new one

.
Tip: If possible, try to slide it sideways.

dieselschrauber wrote:

Quote: I just hope that I can reattach the mesh of clips to and around the new one . Tip: If possible, try to slide it sideways.

Thank you, but that's no longer relevant.

Because I can only get the new bracket for all my pipes, and it costs over 100 EUR, and then it will be attached and ready .

So, we're sticking with the cable tie.

The part fits very tightly and it holds very securely... it just looks very unimpressive .

m;
