Polo 6C 1.4 tdi - new - regenerated particulate filter

Joined: 09/15/2020 Posts: 4 Karma: +0 / -0 Premium Support

Hello, I'm new here,

After a turbocharger failure, I probably need to have the particulate filter replaced or regenerated.
I can't find any way in VCDS to teach the engine control unit (ECU) about the new or regenerated filter. Is this not possible, or am I missing a crucial detail? The access permission code in the engine control unit is not displaying for me.

Several times in the forum, it has been stated that adjustments to the amount of ash or ash loading have been made.

aelbler

Wednesday, September 16, 2020, 19:55:09:28730
VCDS -- Windows-based VAG/VAS emulator runs on Windows 10 x64
VCDS Version: RKS 20.4.1.1 HEX-V2: 0.4513.4
Data Status: 20200709 DS317.0
http://shop.dieselschrauber.org/en

Vehicle Identification Number: WVWZZZ6RZFU049xxx Vehicle Registration Number:
Odometer: 158291km Repair order:

Vehicle Type: 6R-VW26 (6C0)
Scan: 01 03 08 09 10 15 17 19 44 5F 69

Vehicle Identification Number: WVWZZZ6RZFU049xxx Kilometerstand: 158291km

01-Engine Electronics -- Status: Error 0010
03-Brake Electronics -- Status: OK 0000
08-Climate/Heating System -- Status: OK 0000
09-Main Electrical System -- Status: OK 0000
10-Parking Assist 2 -- Status: OK 0000
15-Airbag -- Status: OK 0000
17-Switch Panel Insert -- Status: OK 0000
19-Diagnosis Interface -- Status: OK 0000
44-Steering Aid -- Status: OK 0000
5F-Information Selection. I -- Status: OK 0000
69 supporters -- Status: OK 0000
-------------------------------------------------------------------------------
Address 01: Engine Electronics (J623-CUTA) Label file: None
Part Number SW: 04B 997 027 M HW: 04B 907 445
Part: R3 1.4l TDI H07 5575
Revision: 21003001
Encoding: 01114032433401080000
Operating Number: WSC 31414 790 50316
ASAM Dataset: EV_ECM14TDI03004B997027M 004003
ROD: EV_ECM14TDI03004B997027F.rod
VCID: 3536D92CD5C67503B0C-8060

1 Error found:
23902 - Diesel Particulate Filter - Excessive soot loading
P2463 00 [175] - -
Warning light ON - confirmed - checked since last discharge
Environmental Conditions:
Error Status: 00000001
Error Priority: 2
Frequency of Errors: 1
Odometer: 158287 km
Date: 2020.09.16
Time: 17:42:32

Motor Speed: 841.75 /min
Normalized Load Value: 26.3 %
Vehicle Speed: 0 km/h
Coolant Temperature: 90 °C
Intake Air Temperature: 71 °C
Ambient air pressure: 920 mbar
Voltage Terminal 30: 13.023 V
Fault Counter via OBD: 40
Particle filter regeneration time counter: 1029 s
Particle Filter: Miles since last regeneration: 924.6 km
Particle Filter: Soot Mass measured: -9.99 g
Particle Filter: Soot Mass Calculated: 60.00 g
Particle Filter: Differential Pressure Transmitter 1 Bank 1: dynamic offset: -0.4 mbar
Particle Filter: Field Regeneration Status: 0

Readiness: Not Available

-------------------------------------------------------------------------------
Address 03: Braking Electronics (J104) Label file: DRV\6R0-907-37x-ESP90.clb
Part Number SW: 6C0 907 379 G HW: 6R0 907 379 BA
Component: ESP9.0i H03 0003
Serial Number: 08500748140913
Encoding: 21DD48858A2733C9091410710052841251CC90080007C5090C00
Operating Number: WSC 31414 790 50316
ASAM Dataset: EV_Brake1ESP90iBOSCHPQ26 100018
ROD: EV_Brake1ESP90iBOSCHPQ26.rod
VCID: 3332E734DBB26B339E8-8066

No error codes found.

-------------------------------------------------------------------------------
Address 08: Climate/Heating Control (J255) Label file

DRV\6C0-907-044.clb
Part Number SW: 6C0 907 044 A HW: 6C0 907 044 A
Component: Climatronic H02 0105
Serial Number: 1410311A-0169
Encoding: 201000001001000201
Operating Number: WSC 31414 790 50316
ASAM Dataset: EV_ACClimaValeoPQ26 003001
ROD: EV_ACClimaValeoPQ26_001_SK26.rod
VCID: 221C12707448F2BB65E-8076

No error codes found.

-------------------------------------------------------------------------------
Address 09: Central Electrical (J519) Label file:| 6C0-937-089-V1.clb
Part Number SW: 6C0 937 089 A HW: 6C0 937 089
Part Number: BCM PQ26 Hi4R H06 0047
Serial Number: 009458020908
Encoding: 0002085042530AFB4B844000402F07C800005B0253010000000000000000
Operating Number: WSC 131071 1023 2097151
ASAM Dataset: EV_BCMA0 004003
ROD: EV_MQBA0.rod
VCID: 2E04F640309046DBF16-807A

Rain and Light Sensor:
Subsystem 1 - Part Number SW: 5Q0 955 547 A HW: 5Q0 955 547 A Label file: DRV\5Q0-955-547.CLB
Part Number: RLHS 037 0059
Serial Number: S4Y14M10D21H01M16S02
Encoding: 0178DD

Driver's Side Door Lock Actuator:
Subsystem 2 - Part Number SW: 6R0 959 801 AT HW: 6R0 959 801 AT Label file: 6R0-959-801.CLB
Part Number: J386__TSG_FT 003 8612
Serial Number: KU0KU012021440437260
Encoding: 0400A0

Passenger-side door control:
Subsystem 3 - Part Number SW: 6R0 959 802 BE HW: 6R0 959 802 BE Label file: 6R0-959-802.CLB
Part Number: J387__TSG_BT 003 8612
Serial Number: KU0KU018021440497798
Encoding: 1400A0

Door control unit, rear, driver's side:
Subsystem 4 - Part Number SW: 6R0 959 811 N HW: 6R0 959 811 N
Part Number: J388__TSG_HL 003 8610
Serial Number: KU0KU008091442518353
Encoding: 0400A0

Passenger side rear: Door control unit
Subsystem 5 - Part Number SW: 6R0 959 812 N HW: 6R0 959 812 N
Part Number: J389__TSG_HR 003 8610
Serial Number: KU0KU016091442593116
Encoding: 1400A0

No error codes found.

-------------------------------------------------------------------------------
Address 10: Parking Assist 2 (J791) Label file:| DRV\5Q0-919-294.clb
Part Number SW: 5Q0 919 294 E HW: 5Q0 919 294 A
Part: PARKHILFE 8K H03 0048
Revision: -------- Serial Number: 39331426600409
Encoding: 0011051101
Operating Number: WSC 31414 790 50316
ASAM Dataset: EV_EPHVA18AU3700000 002024
ROD: EV_EPHVA18AU3700000_VW26.rod
VCID: 3D26C10CEDF6AD4378C-8068

No error codes found.

-------------------------------------------------------------------------------
Address 15: Airbag (J234) Label file:| 6C0-959-655.clb
Part Number SW: 6C0 959 655 A HW: 6C0 959 655 A
Part Number: VW20Airbag01B 001 0330
Revision: -------- Seriennummer: 003LM00538H-
Encoding: 88C0C000000000005C0000CA000800000000
Operating Number: WSC 31414 790 50316
ASAM Dataset: EV_AirbaVW20BPAVW26X 001001
ROD: EV_AirbaVW20BPAVW26X.rod
VCID: 313EED3C21AE5923EC4-8064

Crash sensor for driver's side side airbag:
Subsystem 1 - Part Number SW: ----------- HW: 410 821 408 14
Part: SideSensor_Df 151 0800
Serial Number: 3575H00C715D435072AK
Encoding: 2D2D2D

Crash sensor for side airbag, driver's side:
Subsystem 2 - Part Number SW: ----------- HW: 410 821 408 14
Part Number: SideSensor_Pf 151 0800
Serial Number: 3585H00C11628C018227
Encoding: 2D2D2D

Crash sensor for side airbag on the driver's side rear:
Subsystem 3 - Part Number SW: ----------- HW: 442 152 709 14
Part: SideSensor_Dr 1CA 0148
Serial Number: 3517A00A51730323F2C3
Encoding: 2D2D2D

Crash sensor for side airbag on the passenger side:
Subsystem 4 - Part Number SW: ----------- HW: 442 152 709 14
Part: SideSensor_Pr 1CA 0148
Serial Number: 3527A009D176F605E1FX
Encoding: 2D2D2D

No error codes found.

-------------------------------------------------------------------------------
Address 17: Relay Module (J285) Label file:| DRV\5G0-920-XXX-17.clb-SRI3
Part Number SW: 6C0 920 741 A HW: 6C0 920 741 A
Part: KOMBI 211 0290
Encoding: 072409002180000800080A001000000000000000
Operating Number: WSC 31414 790 50316
ASAM Dataset: EV_DashBoardVDDMQBAB 009040
ROD: EV_DashBoardVDDMQBAB_009_VW26.rod
VCID: 211E1D7C714EE9A37C4-8074

No error codes found.

-------------------------------------------------------------------------------
Address 19: Diagnostic Interface (J533) Label file:| DRV\6C0-909-901-V1.clb
Part Number SW: 6C0 909 901 HW: 6C0 937 089
Part: GW MQB A0 H06 0047
Revision: -------- Seriennummer: 009458020908
Encoding: 030100344F0A590071000000000000010001000000000000000000000000
Operating Number: WSC 31414 790 50316
ASAM Dataset: EV_GatewA0Lear 001001
ROD: EV_GatewA0Lear_001_VW26.rod
VCID: 6596496C25E6C583C0C-8030

Steering wheel multifunction control:
Subsystem 1 - Part Number SW: 6C0 959 442 A HW: 6C0 959 442 A Label file: DRV\3C8-959-537.CLB
Part Number: E221__MFL-TAT H04 0019
Serial Number: 2041406305200676AD1B
Encoding: 280000

Battery monitoring control unit:
Subsystem 2 - Part Number SW: 6C0 915 181 A HW: 6C0 915 181 A
Part Number: J367-BDM H08 0223
Serial Number: 51261E51212821776634

No error codes found.

-------------------------------------------------------------------------------
Address 44: Steering Aid (J792) Label file:| DRV\6Rx-909-144-V2.clb
Part Number SW: 6C1 909 144 M HW: 6C1 909 144 D
Part Number: EPS_TRW_ALow 312 3211
Serial Number: CE990770
Encoding: 0007
Operating Number: WSC 31414 790 50316
ASAM Dataset: EV_SteerAssisUDSTRW 011021
ROD: EV_SteerAssisUDSTRW_011.rod
VCID: 323CE23024A8623B95E-8066

No error codes found.

-------------------------------------------------------------------------------
Address 5F: Information Selection. I (J794) Label file:| 5G0-035-MIB-ENT2.clb
Part Number SW: 6C0 035 867 B HW: 6C0 035 867 B
Part Number: MU-E--ER 820 6220
Serial Number: 22071400010732
Encoding: 02620000BE0000004011000100000000000000040000010000
Operating Number: WSC 31414 790 50316
ASAM Dataset: EV_MUEnt4CGen2LGE 001017
ROD: EV_MUEnt4CGen2LGE_VW26.rod
VCID: 28080058127418EB3BA-807C

No error codes found.

-------------------------------------------------------------------------------
Address 69: Trailer (J345) Label file:| DRV\5Q0-907-383.clb
Part Number SW: 6C0 907 383 E HW: 5Q0 907 383 B
Part: Trailer H14 0137
Revision: 8D001001 Serial Number: 0324087245
Encoding: 0100000202000000
Operating number: WSC 01286 386 08256
ASAM Dataset: EV_TrailFunctGener2Hella 001005
ROD: EV_TrailFunctGener2Hella_VW26.rod
VCID: 2C00FC48068C34CBDF2-8078

No error codes found.

Ende--(Duration: 00:51, Battery Voltage Start/End: 11.9V/11.9V. VIgn 0.0V)----

Hello,

It is sufficient to adjust the ash volume or ash mass in the engine control unit simply by using a new (or cleaned) DPF.

Basically:
/viewtopic.php?t=29193

Regarding your engine control unit, the procedure may be slightly different (dropdown box, customization).

Best regards, Rainer

Joined: 09/15/2020 Posts: 4 Karma: +0 / -0 Premium Support

Thank you for the response,

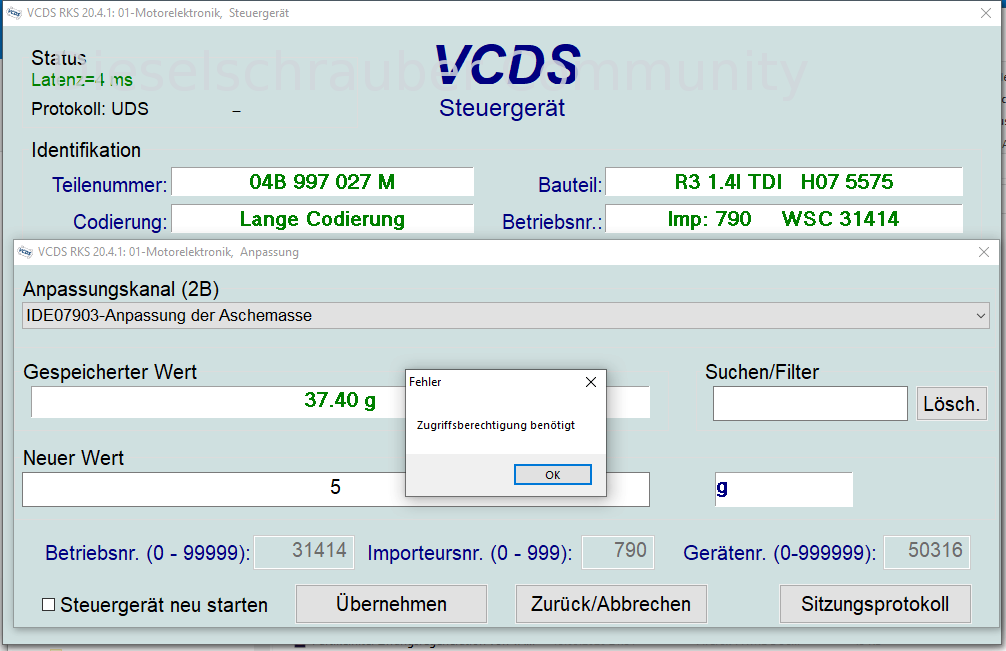

I think I must have read about that in the link. However, I am getting the message "Access permission required".
Then the calculated soot value is also stored. This ultimately prevents the normal regeneration process.

Last edited on 18-09-2020, 12:07, edited 1 time in total.

Hi,

Please hold the mouse cursor over the "Permission/Login" input field.

Ash mass adjustment or ash volume adjustment:
/viewtopic.php?t=20333

Best regards, Rainer

Joined: 09/15/2020 Posts: 4 Karma: +0 / -0 Premium Support

Hello,

I've already figured this out, it also works with different components, but not with the motor. That's just not possible.

thanks
Älbler

Last edited on 18-09-2020, 12:43, edited 3 times in total.

12233 Meanwhile, I'll take a look at my car.

Best regards, Rainer

Joined: 09/15/2020 Posts: 4 Karma: +0 / -0 Premium Support

Here it comes: Error 35: Invalid key

You have a PM, please try and respond.

Best regards, Rainer
