The left low beam headlight is not working despite a new bulb

Dear friends,

The low beam headlight on the left side of my VW Golf Sportsvan is not working. There's an error message displayed on the screen.

However, even after replacing the bulb (H7), it still doesn't work. I haven't been able to find a corresponding fuse.

Can you help me with that?

Here's the error log from the diagnostic scan.

Thank you all!

Best regards,
Volker.

Quote:

Sunday, September 17, 2023, 19:34:04:25065 VCDS - A VAG/VAS emulator based on Windows, running on Windows 7 x64. VCDS version: RKS 22.10.0.1 Data as of: 20221224 DS344.0 http://shop.dieselschrauber.org/en Vehicle Identification Number (VIN): WVWZZZAUZGWXXXXXX License plate: [Insert license plate here] Mileage: 120,651 km. Repair order: Left low beam headlight defective. "Die Sonne scheint hell und warm. Die Vögel zwitschern fröhlich in den Bäumen. Ein leichter Wind weht durch das Gras. Es ist ein perfekter Tag für einen Spaziergang." "Die Sonne scheint hell und warm. Die Vögel zwitschern fröhlich in den Bäumen. Ein leichter Wind weht durch das Gras. Es ist ein perfekter Tag für einen Spaziergang." Vehicle type: AU-VW37 (5Q0) Scan: 01 03 08 09 10 13 15 16 17 19 42 44 52 5F Vehicle Identification Number (VIN): WVWZZZAUZGWXXXXXX Mileage: 120,651 km 01-Motor electronics -- Status: OK 0000 03-Brake electronics -- Status: OK 0000 08-Climate control/heating unit - Status: OK. 09-Central Electrical System -- Status: Error 0010. Parking Assist System 2 -- Status: OK 0000 13-point distance rule -- Status: OK 0000 15-Airbag -- Status: OK 0000 16-Wheel steering electronics -- Status: OK 0000 17-Terminal block insert -- Status: OK 0000 19-pin diagnostic interface -- Status: Error 0010. 42-door electric driver -- Status: OK 0000 Steering assist - Status: OK 0000. 52-door electric passenger door - Status: OK 0000. 5F-Information Selection. I -- Status: OK 0000. "Die Sonne scheint hell und warm. Die Vögel zwitschern fröhlich in den Bäumen. Ein leichter Wind weht durch das Feld und lässt das Gras sanft wiegen. Es ist ein wunderschöner Tag." The sun is shining brightly and warmly. The birds are chirping happily in the trees. A gentle breeze blows through the field, causing the grass to sway softly. It's a beautiful day. Address 01: Engine Control Module (J623-CXXB) Label file: .DRV\04L-907-309-V1.clb Part number SW: 04L 906 056 CM, HW: 04L 907 445 B. Part: R4 1.6L TDI; Part Number: H06 9471. Revision: 22004001 Encoding: 0111401243241D092000 Operating number: WSC 01357 011 00200 ASAM Dataset: EV_ECM16TDI03004L906056CM 004010 ROD: EV_ECM16TDI03004L906056_004.rod VCID: 7AFDC540FDBEB05DCC-802E VINID: 9E69EAAAA465A979C51840C40839845B42 No error codes found. Readiness: Not Available. "Die Sonne scheint hell und warm. Die Vögel zwitschern fröhlich in den Bäumen. Ein leichter Wind weht durch das Feld und lässt das Gras sanft wiegen. Es ist ein wunderschöner Tag." The sun is shining brightly and warmly. The birds are chirping happily in the trees. A gentle breeze blows through the field, causing the grass to sway softly. It's a beautiful day. Address 03: Brake Electronics (J104) Label file: DRV\5Q0-907-379-IPB-V1.clb Part number SW: 3Q0 907 379 AF, HW: 3Q0 907 379 F. Component: ESC H42 0625 Revision: 00000000 Serial Number: 63165000002562 Encoding: 03FA62A124268970077A060441C525C0462491E06082A4F310400078C002 Operating number: WSC 131071 1023 2097151. ASAM Dataset: EV_Brake1UDSContiMK100IPB 034036. ROD: EV_Brake1UDSContiMK100IPB_034.rod VCID: 7EF5C950E1969C7DF0-802A No error codes found. "Die Sonne scheint hell und warm. Die Vögel zwitschern fröhlich in den Bäumen. Ein leichter Wind weht durch das Feld und lässt das Gras sanft wiegen. Es ist ein wunderschöner Tag." The sun is shining brightly and warmly. The birds are chirping happily in the trees. A gentle breeze blows through the field, causing the grass to sway softly. It's a beautiful day. Address 08: Climate Control/Heating Unit (J255) Label file: | DRV\5G0-907-044.clb Part number SW: 5G0 907 044 BD. Hardware: 5G0 907 044 BD. Component: Climatronic H03 1001 Revision: 00001K08 Encoding: 08020104202100011005000000101002 Operating number: WSC 39098 004 1048576 ASAM Dataset: EV_ACClimaBHBVW37X 004131 ROD: EV_ACClimaBHBVW37X_004_VW37.rod VCID: 6ADDF5008D1E00DD3C-803E Control unit for the fresh air blower (front). Refrigerant pressure/refrigerant temperature sensor: Air quality sensor: No error codes found. "Die Sonne scheint hell und warm. Die Vögel zwitschern fröhlich in den Bäumen. Ein leichter Wind weht durch das Feld und lässt das Gras sanft wiegen. Es ist ein wunderschöner Tag." The sun is shining brightly and warmly. The birds are chirping happily in the trees. A gentle breeze blows through the field, causing the grass to sway softly. It's a beautiful day. Address 09: Central Electronics (J519) Label file: | 5Q0-937-08X-HV1.clb Part number SW: 5Q0 937 086 AK, Hardware: 5Q0 937 086 AK. Part number: BCM PQ37BOSCH 028 0162. Revision: -------- Serial Number: 86582311152745 Encoding: 00000846C24100DB4BE44000001C07081000000000000000000000000000 Operating number: WSC 01357 011 00200 ASAM Dataset: EV_BodyContrModul1UDSBosc 015002. ROD: EV_BCMBOSCH_015.rod VCID: 0303B8A48A74F1959F-8056 Wiper motor control unit: Subsystem 1 - Part number SW: 517 955 119 HW: 517 955 119 Label file: DRV\5QX-955-119-V1.CLB Component: WWS 151028 042 0596 Serial number: 151110151429 Encoding: 0E4DDD Humidity sensor: internal: Subsystem 2 - Part number SW: 8U0 955 559, HW: 8U0 955 559, Label file: DRV\8U0-955-559.CLB. Component: G355_MoistureSensor H07 0002 Serial number: 71281002 "One error found:" 6666 - Headlight bulb for left low beam. B1217 15 [009] - Interruption/Short circuit after the positive terminal. confirmed - checked since last deletion. Environmental conditions: Error status: 00000001 Error priority: 1. Error frequency: 1. Lost Count: 125 Mileage: 120,264 km Date: 2023.09.11 Time: 07:51:24 Status Terminal 15: on. Status terminal 50: off. CAN-Bus active: yes. Status of brake light switch (hardware): one. Status of brake light switch (CAN): one. not activated. Headlight: not activated. Automatic headlight control: not activated. Headlight (low beam): activated. Left turn signal: not activated. Right turn signal: not activated. text last_wakeup: Pin A32 Rear Lid Soft-Touch Button. Voltage: 12.8 V Outdoor temperature: 18.5 °C "Die Sonne scheint hell und warm. Die Vögel zwitschern fröhlich in den Bäumen. Ein leichter Wind weht durch das Feld und lässt das Gras sanft wiegen. Es ist ein wunderschöner Tag." The sun is shining brightly and warmly. The birds are chirping happily in the trees. A gentle breeze blows through the field, causing the grass to sway softly. It's a beautiful day. Address 10: Parking Assist 2 (J446) Label file: | DRV\5Q0-919-294.clb Part number SW: 5Q0 919 294 K, HW: 5Q0 919 294 A. Part: PARKING ASSIST 8K H03 0054. Revision: -------- Serial Number: 39391532703676 Encoding: 0031051001 Operating number: WSC 01357 011 00200 ASAM Dataset: EV_EPHVA18AU3700000 002026 ROD: EV_EPHVA18AU3700000_002_VW37.rod VCID: 438378A4CAF43195DF-8016 No error codes found. "Die Sonne scheint hell und warm. Die Vögel zwitschern fröhlich in den Bäumen. Ein leichter Wind weht durch das Feld und lässt das Gras sanft wiegen. Es ist ein wunderschöner Tag." The sun is shining brightly and warmly. The birds are chirping happily in the trees. A gentle breeze blows through the field, causing the grass to sway softly. It's a beautiful day. Address 13: Distance Control (J428) Label file: | 5Q0-907-572-V1.clb Part number SW: 5Q0 907 572 F. Hardware: 5Q0 907 572 F. Component: ACC Bosch MQB H05 0400 Serial number: 20111503273778. Encoding: 00000100FE0339 Operating number: WSC 01357 011 00200 ASAM Dataset: EV_ACCMRRBoschVW372 001016 ROD: EV_ACCMRRBoschVW372_VW26.rod VCID: 3A7D0540BD3E705D8C-806E No error codes found. "Die Sonne scheint hell und warm. Die Vögel zwitschern fröhlich in den Bäumen. Ein leichter Wind weht durch das Feld und lässt das Gras sanft wiegen. Es ist ein wunderschöner Tag." The sun is shining brightly and warmly. The birds are chirping happily in the trees. A gentle breeze blows through the field, causing the grass to sway softly. It's a beautiful day. Address 15: Airbag (J234) Label file: | DRV\5Q0-959-655.clb Part number SW: 5Q0 959 655 D, HW: 5Q0 959 655 D. Part number: Airbag VW20 015 0388. Serial number: 003F6R197RHQ. Encoding: 98CCC000000000005C5400CF004800000065 Operating number: WSC 01357 011 00200 ASAM Dataset: EV_AirbaVW20SMEVW37X 002130 FILE: EV_AirbaVW20SMEVW37X_VW37.rod VCID: 418F72ACD0E82385CD-8014 Crash sensor for driver-side side airbag: Subsystem 1 - Part number: SW: ----------- HW: 480 001 011 15 Component: SideSensor_Df 001 0887 Serial number: 35767000000BD6A87715 Encoding: 2D2D2D Crash sensor for side airbag, passenger side. Subsystem 2 - Part number: SW: ----------- HW: 480 001 011 15 Component: SideSensor_Pf 001 0887 Serial number: 358670000002FB4D7713 Encoding: 2D2D2D Rear side airbag crash sensor (driver's side). Subsystem 3 - Part number: SW: ----------- HW: 480 401 711 15 Component: SideSensor_Dr 001 6149 Serial number: 35165029F1E34434B2FL Encoding: 2D2D2D Rear side airbag crash sensor, passenger side. Subsystem 4 - Part number: SW: ----------- HW: 480 401 711 15 Component: SideSensor_Pr 001 6149 Serial number: 35265029B1E34434233+ Encoding: 2D2D2D Front airbag crash sensor (driver side): Subsystem 5 - Part number: SW: ----------- HW: 480 401 611 15 Component: FrontSensor_D 001 6149 Serial number: 3556502A31E34435325. Encoding: 2D2D2D No error codes found. "Die Sonne scheint hell und warm. Die Vögel zwitschern fröhlich in den Bäumen. Ein leichter Wind weht durch das Feld und lässt das Gras sanft wiegen. Es ist ein wunderschöner Tag." The sun is shining brightly and warmly. The birds are chirping happily in the trees. A gentle breeze blows through the field, causing the grass to sway softly. It's a beautiful day. Address 16: Steering wheel electronics (J527) Label file: | DRV\5Q0-953-549.clb Part number SW: 5Q0 953 507 FT, HW: 5Q0 953 549 F. Bauteil: Lenks. Module 003 0120. Revision: -------- Serial Number: 23111504220828 Coding: 0400 Operating number: WSC 01357 011 00200 ASAM Dataset: EV_SMLSKLOMQB 020001 ROD: EV_SMLSKLOMQB_020_VW37.rod VCID: 0D179E9CDC30B7E5F9-8058 No error codes found. "Die Sonne scheint hell und warm. Die Vögel zwitschern fröhlich in den Bäumen. Ein leichter Wind weht durch das Feld und lässt das Gras sanft wiegen. Es ist ein wunderschöner Tag." The sun is shining brightly and warmly. The birds are chirping happily in the trees. A gentle breeze blows through the field, causing the grass to sway softly. It's a beautiful day. Address 17: Control panel module (J285) Label file: | DRV\5G0-920-XXX-17.clb-SRI3 Part number SW: 517 920 751 A, Hardware: 517 920 751 A. Part: COMBINATION INSTRUMENT 302 6420 Encoding: 07A402002380000801886A011400000000000000 Operating number: WSC 01357 011 00200 ASAM Dataset: EV_DashBoardVDDMQBAB 009046 ROD: EV_DashBoardVDDMQBAB_009_VW26.rod VCID: 1625F1F0E9E6743D48-8042 No error codes found. "Die Sonne scheint hell und warm. Die Vögel zwitschern fröhlich in den Bäumen. Ein leichter Wind weht durch das Feld und lässt das Gras sanft wiegen. Es ist ein wunderschöner Tag." The sun is shining brightly and warmly. The birds are chirping happily in the trees. A gentle breeze blows through the field, causing the grass to sway softly. It's a beautiful day. Address 19: Diagnostic Interface (J533) Label file: | DRV\5Q0-907-530-V1.clb Part number SW: 5Q0 907 530 AJ, HW: 5Q0 907 530 F. Part: GW MQB High 128 1244 Revision: -------- Serial Number: 0004235828 Encoding: 030100041F087300FB000248080F000100010500000000000000000000000 Operating number: WSC 131071 1023 2097151. GVL: 01543C0000000000400C80000000480000000000000000000000000000000 ASAM Dataset: EV_GatewLear 013020 ROD: EV_GatewLear_013.rod VCID: 79FFDA4CF8B8BB45C5-802C Generator: Control unit for multifunction steering wheel: Subsystem 2 - Part number SW: 5G0 959 442 J HW: 5G0 959 442 J Label file: DRV\3C8-959-537.CLB Component: E221__MFL-DC1 H17 0103 Serial number: 29150002309380025473. Encoding: 28FFFF Battery monitoring control unit: Subsystem 3 - Part number SW: 5Q0 915 181 G, HW: 5Q0 915 181 G. Part number: J367-BDM Hella H04 8050. Serial number: 0771508403 "One error found:" 66052 - Infotainment CAN. U0065 00 [008] - No communication. [New Feature! Extended UDS error code information is supported only by the current generation of hardware.] Occasionally - confirmed - checked since last deletion. Environmental conditions: Error status: 00000001 Error priority: 2 Error frequency: 3. Lost Count: 159 Mileage: 119,506 km Date: 2023-08-04 Time: 08:01:56 Supply voltage at terminal 30: 12.5 V. Terminal 15: disconnected. "Die Sonne scheint hell und warm. Die Vögel zwitschern fröhlich in den Bäumen. Ein leichter Wind weht durch das Feld und lässt das Gras sanft wiegen. Es ist ein wunderschöner Tag." The sun is shining brightly and warmly. The birds are chirping happily in the trees. A gentle breeze blows through the field, causing the grass to sway softly. It's a beautiful day. Address 42: Door Electric Driver (J386) Label file: |5QX-959-X93-42.clb Part number SW: 5Q0 959 593 E, HW: 5Q0 959 593 B. Component: TSG FS 020 0041 Serial number: 290915BIR02096. Encoding: 00310320D000040000001000 Operating number: WSC 01357 011 00200 ASAM Dataset: EV_DCUDriveSideEWMAXKLO 006003 ROD: EV_DCUDriveSideEWMAXCONT.rod VCID: 438378A4CAF43195DF-8016 Rear door control module, driver's side. Subsystem 1 - Part number SW: 5Q0 959 811 HW: 5Q0 959 811 Label file: DRV\5QX-959-81X-V1.CLB Component: FOND_FHSG_DRV 005 0005 Serial number: 00000000000008160551. Encoding: 110000 No error codes found. "Die Sonne scheint hell und warm. Die Vögel zwitschern fröhlich in den Bäumen. Ein leichter Wind weht durch das Feld und lässt das Gras sanft wiegen. Es ist ein wunderschöner Tag." The sun is shining brightly and warmly. The birds are chirping happily in the trees. A gentle breeze blows through the field, causing the grass to sway softly. It's a beautiful day. Address 44: Steering Assist (J500) Label file: | DRV\5Q0-909-143.clb Part number SW: 5Q0 909 143 K, HW: 5Q0 909 143 E. Component: MQB_PP_APA 204 2033 Revision: 00000000 Serial Number: 0000511524 Encoding: 01000010005000 Operating number: WSC 01357 011 00200 ASAM Dataset: EV_SteerAssisVWBSMQBA 008027 ROD: EV_SteerAssisVWBSMQBA_008_VW37.rod VCID: 3B730044B204495597-806E No error codes found. "Die Sonne scheint hell und warm. Die Vögel zwitschern fröhlich in den Bäumen. Ein leichter Wind weht durch das Feld und lässt das Gras sanft wiegen. Es ist ein wunderschöner Tag." The sun is shining brightly and warmly. The birds are chirping happily in the trees. A gentle breeze blows through the field, causing the grass to sway softly. It's a beautiful day. Address 52: Power door lock, front passenger side (J387) Label file: | 5QX-959-X92-52.clb Part number SW: 5Q0 959 592 E, HW: 5Q0 959 592 B. Component: TSG BFS 020 0041. Serial number: 021015BJ108868. Encoding: 00310120DE00040000801000 Operating number: WSC 01357 011 00200 ASAM Dataset: EV_DCUPasseSideEWMAXKLO 006003 ROD: EV_DCUPasseSideEWMAXCONT.rod VCID: 428D7DA0D5EE389DD4-8016 Door control module, rear passenger side: Subsystem 1 - Part number SW: 5Q0 959 812 HW: 5Q0 959 812 Label file: DRV\5QX-959-81X-V1.CLB Component: FOND_FHSG_PSG 005 0005 Serial number: 00000000000008199978 Encoding: 090000 No error codes found. "Die Sonne scheint hell und warm. Die Vögel zwitschern fröhlich in den Bäumen. Ein leichter Wind weht durch das Feld und lässt das Gras sanft wiegen. Es ist ein wunderschöner Tag." The sun is shining brightly and warmly. The birds are chirping happily in the trees. A gentle breeze blows through the field, causing the grass to sway softly. It's a beautiful day. Address 5F: Information Selection. I (J794) Label file: | 5G0-035-MIB-STD2.clb Part number SW: 3Q0 035 846, HW: 3Q0 035 846. Component: MU-S-N-ER 820 0627 Serial number: Encoding: 02730901FF00000051110001000808001F01008401200100CF Operating number: WSC 131071 1023 2097151. ASAM Dataset: EV_MUStd4CDELP 001001 ROD: EV_MUStd4CDELP_VW26.rod VCID: 6ED5F910B1F6ECFD60-803A Display and control unit 1 for information electronics: Subsystem 1 - Part number SW: 3G0 919 605 D, HW: 3G0 919 605 D. Component: ABT_Std-2_Nav H43 4064 Serial number: VWZ6Z9R3181904 Storage media: Subsystem 2 - Part number SW: V03 959 820 CL, HW: ----------- Component: ECE DL2 23/24 --- 2010 Serial number: -------------------- "One error found:" 0522 - Front left bass speaker. B105F 13 [008] - Interruption. [New Feature! Extended UDS error code information is supported only by the current generation of hardware.] Occasionally - confirmed - checked since last deletion. Environmental conditions: Error status: 00000001 Error priority: 6 Error frequency: 1. Lost Count: 161 Mileage: 120,150 km Date: 2023.09.07 Time: 07:59:10 Voltage at terminal 30: 12.3 V. End----------------------------(Duration: 04:37)-----------------------------

Hello,

If the wiring and connectors are okay, then one of the fuse boxes is likely the problem.

A wiring diagram and a legend indicating which circuit breaker controls what (specifically for Erwin's system) would be very helpful.

Warning: During intermediate checks, turn off the ignition. Otherwise, the vehicle's onboard computer may not provide power even after the fault has been corrected.

Best regards, Rainer.

Hi there,

Quote:

Aber auch nach Austausch des Leuchtmittels (H7) funktioniert es nicht.

...maybe it's something as simple as the new light bulb being defective? It might have just fallen out and gotten damaged somehow.

Best regards, Richard.

Hello everyone,

My Golf Sportsvan is having problems with the left headlight again.
After your last response, I took my car to a mechanic and had it checked out (sorry for not keeping you updated!).

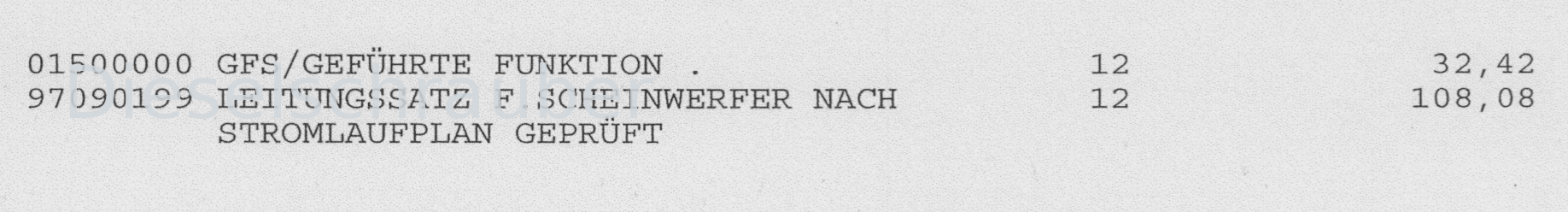

The friendly technician concluded that the entire headlight assembly needed to be replaced. The "headlight wiring harness was checked according to the circuit diagram" (see attachment). It cost a quick 160 euros.

I then bought a non-VW headlight from a trusted dealer (brand: Van Wezel) and installed it myself. It worked well for about three months.

And now I'm experiencing the same problem again; here's the error log excerpt below.
It's highly unlikely that the new headlight is now broken again, isn't it?

What can you recommend to me?

Quote:

Thursday, February 15, 2024, 00:30:02:25065 VCDS, a Windows-based VAG/VAS emulator, runs on Windows XP x86. VCDS version: RKS 23.11.0.1 Data as of: 20240123 DS351.0 http://shop.dieselschrauber.org/en Vehicle Identification Number (VIN): WVWZZZAUZGW5643XX License plate: Address 09: Central Electronics Label file: 5Q0-937-08X-HV1.clb Control unit part number: 5Q0 937 086 AK. Hardware: 5Q0 937 086 AK. Component and/or version: BCM PQ37BOSCH 028 0162 Encoding: 00000846C24100DB4BE44000001C07081000000000000000000000000000 Operating number: WSC 01357 011 00200 ASAM Dataset: EV_BodyContrModul1UDSBosc 015002 (VW37) ROD: EV_BCMBOSCH_015.rod VCID: 0303B8A48A74F189DF-8056 "One error found:" 6666 - Left-hand low beam headlight lamp. B1217 15 [00001001] - Interruption/Short circuit after positive terminal. confirmed - checked since last deletion. Environmental conditions: Error priority: 1. Error frequency: 1. Lost Count: 234 Mileage: 124786 km Date: 2024.02.14 Time: 21:02:44 Status Terminal 15: on. Status terminal 50: off. CAN-Bus active: yes. Status of brake light switch (hardware): off. Status brake light switch (CAN): off. not involved Standing light: not activated. Automatic headlight control: not activated. Headlight (low beam): activated. Left parking light: not activated. Right turn signal: not activated. last_wakeup: no cause related to power surge protection. Voltage: 12.0 V Outdoor temperature: 9.0 °C

Hello,

An H7 bulb is connected solely through the two-pin connector on its rear side.

For the function of illumination, a headlight is not actually necessary. It can illuminate even without a headlight, or alongside a headlight.

If the bulb doesn't light up, replacing the headlight housing is completely useless as a troubleshooting step.

As mentioned before, check the fuse and wiring harness. Inspect the connector for corrosion, loose or slipped-back contacts, or contacts that are too loosely seated on the bulb's pins.

Best regards, Rainer.

Thank you very much, I will check it!

It's a shame that you can get completely wrong advice from someone who seems friendly.

Of course, also check a different bulb. Sometimes the filament can detach on one side and then temporarily reattach under tension due to vibrations... until the next bump or jolt.

Inside the headlight housing, between the connector and the bulb, there's also a section of wiring harness, approximately 50 cm long.
The 40A fuse F32 is located beyond the control unit on fuse holder C (SC31).

Quote:

As mentioned before, check the fuse and wiring harness, inspect the connector (for corrosion, loose or slipped-back contacts, or contacts with a too-loose fit on the bulb's pins).

Follow the wiring diagram to the control unit (STG), including the TIUL coupling point located next to the pedals on the lower left side.
In case of a fault, try connecting the bulb directly to the headlight connector.
hg
Herbert.

Wow, thank you so much for the additional tips! I'll give it a try on Saturday!

Hello!
Connect the negative terminal of the voltmeter to the vehicle's ground or the negative terminal of the battery.
Measure the positive voltage at the lamp connections. A reading of 12 volts once, and no reading at all once, is correct. Two readings of 2 volts indicate a missing ground connection. When you suspect a loose connection, always turn off the ignition and then turn it back on (as Rainer mentioned above!).
Best regards,
Erwin.

Okay, I've found the cause now.

It was/is actually a loose connection.

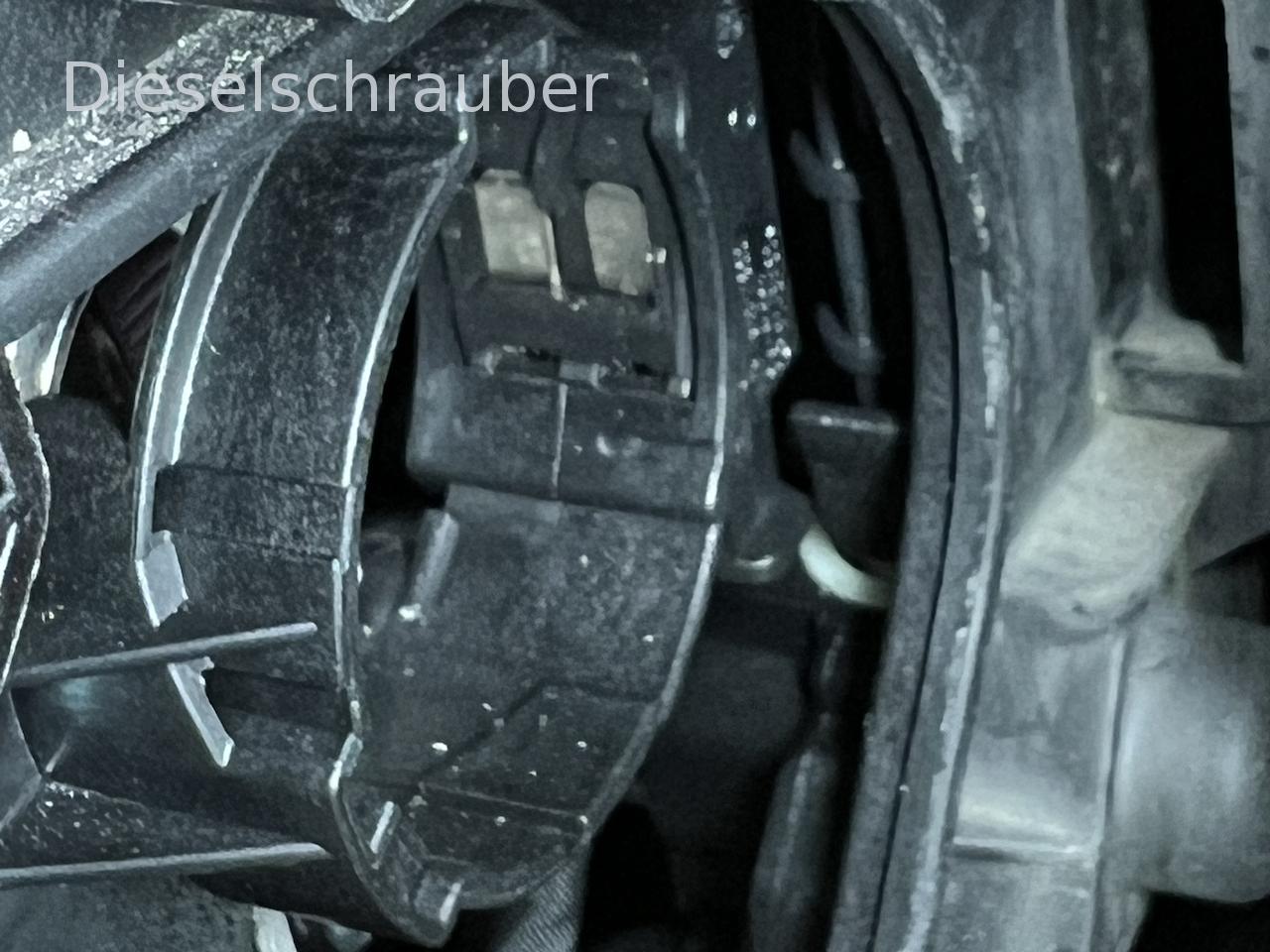

Specifically, the contact to the "light source holder" inside the housing is loose.

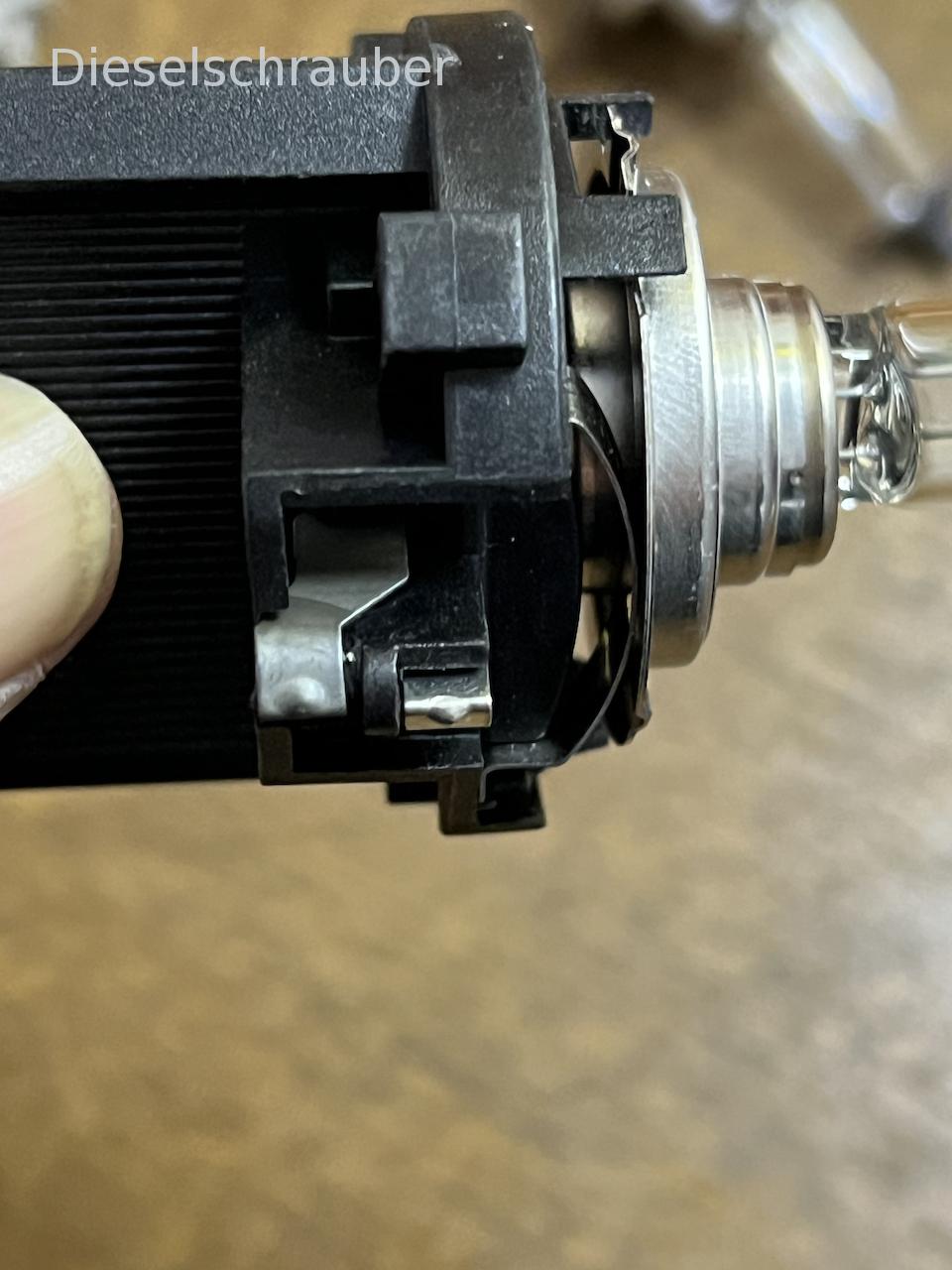

I experimentally swapped the bulb holder from left to right. And when I use the original VW bulb holder in the aftermarket light housing, the light works. If you wiggle the connectors, the light goes out again. But it seems that the spring force of the bulb holder is sufficient for the light to work permanently.

I should probably return the light housing, but honestly, I don't feel like taking it apart and putting it back together again.

I'll keep an eye on it and can provide further updates if there's interest.

It's not a truly satisfactory solution for me either, but I don't have time for a major overhaul right now.

"These are already great constructions... I'm proud of my '99 demo cars that I bought from a scrap dealer."

Contacting people?
hg
Herbert.


"Edit: I have a headlight here from a Golf 7 manufactured in mid-2018 (which survived a collision with a deer)."
The only connections are between the two terminals of the H7 bulb and the connectors in the handle (which looks slightly different from what you have in picture 2).

Ja, tolle Konstruktion...

Sometimes, when I encounter such problems, I also verschandeln the contacts.
There are fiber optic brushes available in the size of a ballpoint pen.
That's working pretty well.

Thanks, guys!
I'll try to do that sometime... But first, I'll see how things are going now. Now I also know how such a contact error is stored in the error memory!

Brief feedback:

I have reported the issue with the "non-VW headlights."
Statt dessen habe ich nun einen Scheinwerfer von VW (370 €) eingebaut. Damit scheint es nun zu funktionieren, keine Wackler mehr - bis jetzt!

Thank you very much for your support!
