Fixing a car with a corrupted system / Seat Alhambra 2014

Hello everyone,

I bought my daughter a Seat Alhambra, model 2014. So far, everything seems to be fine with the car (it passed the technical inspection yesterday without any issues).

However, the car has some quirks. The electric sliding doors don't work, the power windows are faulty, etc. I haven't been in a hurry with it. Now, my daughter mentioned that the cruise control works, but doesn't display anything. The exoneration system is also down.

I connected VCDS today and discovered that the car's coding is hopelessly messed up.

Okay, gib mir den deutschen Text, den du übersetzt haben möchtest.
- Auxiliary heating active, even though it is not installed.
- Comfort functions for a sunroof, even though one is not installed.
- Start/Stop automatic system disabled, even though one is installed.
- RKS is being de-activated even though it is enabled.
- el. Sliding doors are detected as missing, even though they are present.
- el. Rear hatch/trunk deactivated even though it is present.
- DWA is geo-blocked for North America.
- Confusing/contradictory combination of maintenance interval settings.
- The air conditioning system is incorrectly coded.
etc. etc.

Now, the question arises whether there is any way to reconstruct the initial state, or must I, using a suitable coding tool, reset every single bit in all control units to the best of my knowledge and ability?

Below are the IDs of the currently most relevant control units.

Kind regards,

Bo.

---------------------------------------------------------------Address 01: Engine Control Module (J623-CTHA)
Label file: .03C-907-309-V1.clb
Part number SW: 03C 906 026 AM Hardware number: 03C 906 026 AM
Component: 1.4L R4 TSI, part number H02 3444.
Revision: LKH02--- Serial number: CVN: F0A247C5
Encoding: 00190032002401000000
Operating Number: WSC 00020 999 00000
ASAM Dataset: EV_ECM14TSI01103C906026AM 001001
ROD: EV_ECM14TSI01103C906026AM.rod
VCID: 6BD3F86182296DD547-803E
VINID: 9A38EAAAA1DEA959850400410CF3009DB8

"Die Sonne scheint hell, und die Vögel zwitschern fröhlich. Es ist ein perfekter Tag für einen Spaziergang im Park."
Address 08: Climate Control/Heating Unit (J255)
Label file:| DRV\5K0-907-044.clb
Part number SW: 7N0 907 044 Q, HW: 7N0 907 044 Q.
Part: Clima-Sharan H02 0404
Revision: 00001K02
Encoding: 021000C549
Operating Number: WSC 00020 999 00000
ASAM Dataset: EV_ClimatronicSharan A01005
text
ROD: EV_ClimaAutoSharaBasis.rod
VCID: 3E750135A1DB287DB0-806A

Slave 1:
Subsystem 1 - Part number SW: 7N0 907 049 C, HW: 7N0 907 049 C.
Part number: KBT-H 004 0103.
Serial number: 20131029000000136867
---------------------------------------------------------------Address 09: Central Electrical System (J519)
Label file: DRV\1K0-937-08x-09.clb
Part number SW: 5K0 937 084 K, Part number HW: 5K0 937 084 K.
Part: BCM PQ35 B 122 0173
Revision: BA122001
Encoding: 60180A3B81251AC4408000C01000006443019288424D29626480872000C1
Operating number: WSC 00020 790 00000
VCID: 3A7D0D25B5F3045D8C-806E

Subsystem 1 - Part number SW: 7N1 955 119 A, HW: 7N1 955 119, Label file: DRV\1KX-955-119.CLB.
Part: WWS 130912 031 0044
Serial number: 131011183004
Encoding: 004DBD

Subsystem 2 - Part number SW: 5Q0 955 547 HW: 5Q0 955 547 Label file: DRV\5Q0-955-547.CLB
Component: RLFS 024 0042
Serial number: Y13M10D30H19M34S15S6
Encoding: 4208DD

---------------------------------------------------------------Address 10: Parking Assist 2 (J446)
Label file:| DRV\1Q0-919-475.clb
Part number SW: 7N0 919 475 A, HW: 7N0 919 475.
Part: PARKING ASSIST 8K H06 0012
Revision: -------- Serial Number: 28231330804124
Encoding: 108002
Operating Number: WSC 00020 999 00000
ASAM Dataset: EV_EPHVA18VW4280000 001005
FILE: EV_EPHVA18VW4280000.rod
VCID: 397F1229B8F50F4585-806C

---------------------------------------------------------------Address 16: Steering Wheel Electronics (J527)
Label file:| DRV\5K0-953-569.clb
Part number SW: 5K0 953 501 BB, HW: 5K0 953 569 H.
Component: STEERING MODULE 016 0140
Revision: FF010042 Serial number: 20131024301137
Encoding: 5180240000
Operating Number: WSC 00020 999 00000
ASAM Dataset: EV_VW360SteerWheelUDS A03004
ROD: EV_VW360SteerWheelUDS.rod
VCID: 6BD3F86182296DD547-803E

---------------------------------------------------------------Address 17: Terminal block (J285)
Label file:| DRV\5K0-920-xxx-17.clb-SRI1
Part number SW: 7N5 920 860 F, HW: 7N5 920 860 F.
Component: KOMBI H04 0809
Serial number: 00000000000000
Encoding: 140F01
Operating Number: WSC 00020 999 00000
ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A04723
ROD: EV_Kombi_UDS_VDD_RM09_004_VW36.rod
VCID: 397F1229B8F50F4585-806C

---------------------------------------------------------------Address 18: Auxiliary heating.
unavailable

---------------------------------------------------------------Address 19: Diagnostic Interface (J533)
Label file: DRV\7N0-907-530-V2.clb
Part number SW: 7N0 907 530 AL Hardware number: 7N0 907 530 AL
Component: J533 Gateway H58 1642.
Revision: H58
Serial Number: 301013F1002489
Encoding: 468202
Operating number: WSC 00020 790 00000
VCID: 7AFDCD25F573C45DCC-802E

---------------------------------------------------------------
The quick brown fox jumps over the lazy dog.

Hi Bo,

In this case, the simplest solution would likely be to find a reliable and experienced tester who knows what they're doing.

Based on the vehicle identification number (VIN), it should be possible to reconstruct it.

Please note that not every checkbox needs to be correct in VCDS, especially when the car is new.
Therefore, always perform a vehicle scan when purchasing a car and archive the results (as the scan includes coding information).

Best regards, Rainer.

Hello Rainer,

I was afraid of that. However, my "friend" hasn't even provided me with a list of features or the service history of the car. I can't expect much support from there.

I suppose I'll have to start tinkering with it.

Thank you and best regards.

Bo.

Hi,
Search for stickers with the PR codes.
Or query in Erwin (siehe Fehlerdatenbank) using the FIN (Federal Identification Number).
hg
Herbert.

Unfortunately, Erwin (siehe Fehlerdatenbank) no longer provides vehicle-specific data to individuals.

The sticker with the product numbers only covers less than half of the features.

Thank you anyway.

Hi.

The dealer is not allowed to provide any information about the car. They are all very stubborn there.
I once got a quote for a rim.
The offer described the vehicle with all of its optional features and packages.
Perhaps this is still a possibility.

Best regards,
huebi

huebi wrote:

Hello. The dealer is not allowed to provide any information about the car. They are all very stubborn there. I once got a quote for a rim. The offer described the vehicle with all of its optional features and packages. Perhaps this is still a possibility. Best regards, huebi

Why shouldn't information about the car be provided?
The opposite is true. I am entitled to receive it based on EU regulations for my vehicle. Only personal data of the previous owners needs to be removed or obscured. No one can successfully pursue this claim against Volkswagen.

Other manufacturers introduced GDPR-compliant printing options years ago.

I can even easily obtain old inspection reports from TÜV, with the address sections blacked out.

huebi wrote:

Hello. The dealer is not allowed to provide any information about the car. They are all very stubborn there. I once got a quote for a rim. The offer described the vehicle with all of its optional features and packages. Perhaps this is still a possibility. Best regards, huebi

He should not provide any information, but rather, he should properly code the thing with the tester.

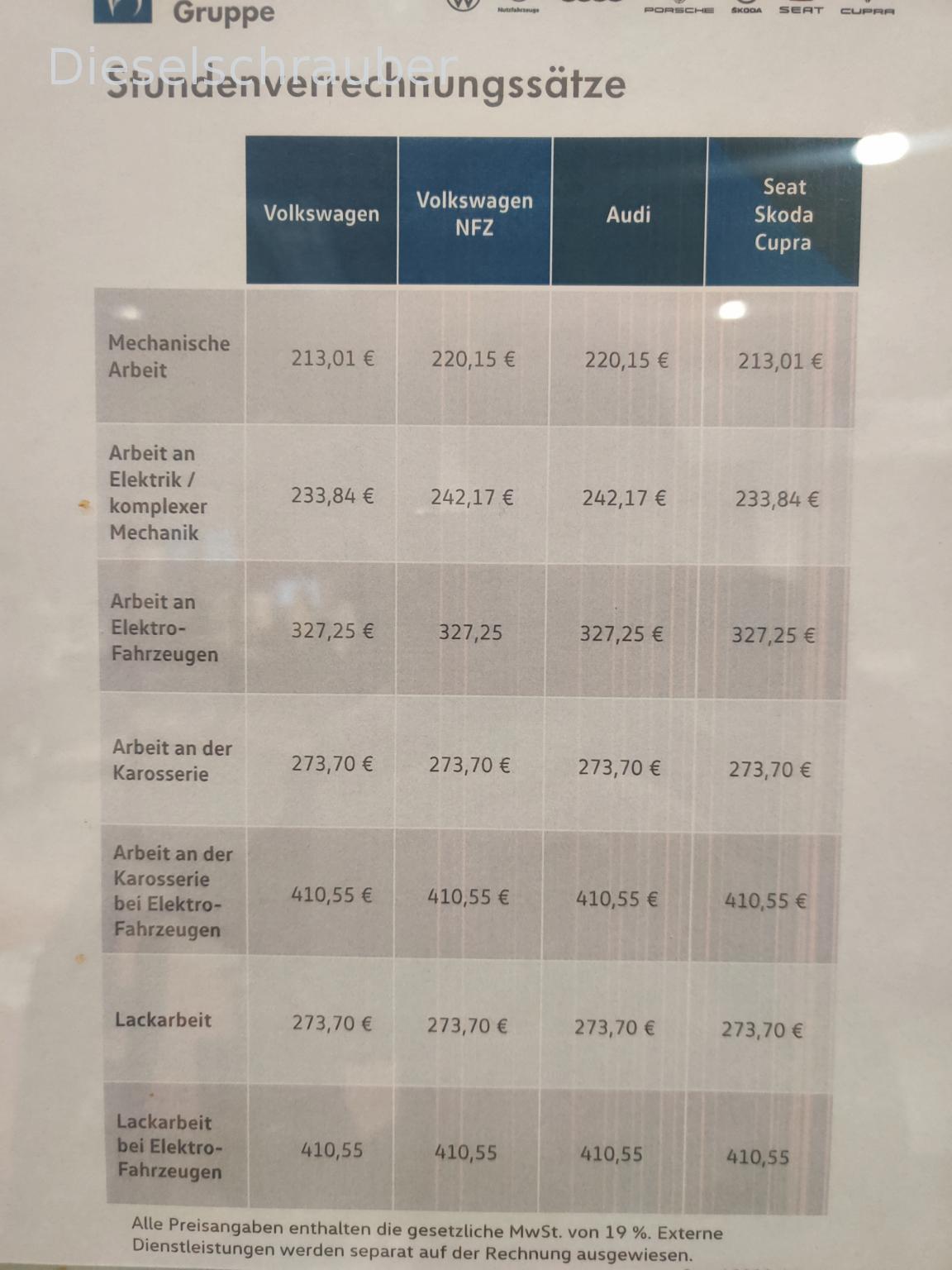

Assuming I would do the work myself, the current hourly rates I'm quoting are based on that.

dieselschrauber wrote:

He should not provide any information, but rather, he should properly code the thing with the tester.

He doesn't want to. They want to leave him there for two days to "troubleshoot." If he doesn't find any defects in the electronics, he'll do it.

I found a company that does it.

Only the display of the set speed for the GRA is still missing, but the green light is on again. Doors, Bluetooth, FH, SHZ, ... everything is working again.

Regards,

Bo.

Ste.Bo wrote:

I found a company that does it. Only the display of the set speed for the GRA is still missing, but the green light is on again. Doors, Bluetooth, FH, SHZ, ... everything is working again.

Well, that's quite nice already!

Regarding speed display: I just checked the Autoscan of our 2012 Sharan. It also has the coding "140F01" and displays the speed when the cruise control is active. However, our control units are different. Ours has the part number "7N0 920 870 E", while you have "7N5 920 860 F". You should check the parts list to see what the 860 model lacks compared to the 870 model.

It's also possible that the engine control unit (ECU) isn't reporting that information to the instrument cluster (IC). I can't really compare them because you have the 1.4 gasoline engine, and we drive the 2.0 TDI.

It would also be worth investigating whether VAG might be deliberately hiding this feature in Seat models to create more differentiation. Have you ever seen it perform in a similar Alhambra model with a 1.4-liter engine?

Thank you very much.

I've also considered that possibility. I saw it on a Skoda Yeti with a 1.4 TSI engine, not on an Alhambra. It shouldn't be related to the instrument cluster display itself, because during the segment test, the required symbol is displayed in the lower center of the display. Of course, this doesn't say anything about the software or its availability.

I'll keep working on it.

Kind regards,

Bo.

I don't need to look any further. According to SEAT, it cannot be a 1.4 TSI Alhambra with CAVA/CTHA engines, regardless of what type of instrument cluster (KI), multi-function display (MFA), or gear shift indicator (GRA) is installed. The forums are probably full of them.

It doesn't matter. The GRA and the on/off light are going. That's enough.

Thank you for the feedback!
