Intake Manifold for 96kW PD Engine

Hello everyone!

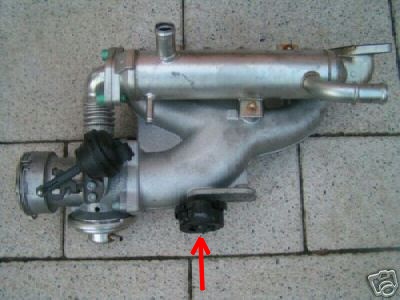

I recently saw a picture of an intake manifold that belongs to the 96kW PD engine.
I immediately noticed three vacuum hoses: one for the diverter valve, one for the EGR valve, and another located on the 90-degree bend leading to the cylinder head.
Is there a variable swirl flap installed, or what is the purpose of this vacuum chamber?

Please clarify!

Okay, while comparing the part numbers, I noticed that all intake manifolds use the same gasket, which means the PD (presumably referring to a specific engine or component) also doesn't have larger inlet openings in the cylinder head.
Can you confirm or deny this?

Regards,
Alex.

Could it be that you're confusing the third-party pressure can with...?
from the water-cooled EGR pipe.

That's how it's currently implemented in newer vehicles to reduce NOx emissions.
The device then somehow redirects the water flow.
From cold engine to warm engine.

Could it be that you are confusing the third can of spray paint with the...
from the water-cooled EGR pipe.

That's how it's currently implemented in newer vehicles to reduce NOx emissions.
The device then somehow redirects the water flow.
Engine cold to engine warm.

'If I recall correctly, only the newer (2.0) models and the V10 TDI have this feature?'

My ALH engine only has a non-switched EGR valve.
(ALH-automatic has water-cooled EGR!)


CU Gremlin.

@Steffarn:

This pressure vessel definitely has nothing to do with the attached intercooler.
Therefore, I tapped on the throttle valve .

Regards,
Alex.

That part isn't available on my AWX... and neither is a water-cooled EGR valve. Why would it be? It's sealed anyway!

donalexo wrote:

This pressure vessel definitely has nothing to do with the attached exhaust cooler. Therefore, I tapped on the throttle valve

.
Hm, I don't see anything in the pipe routing next to the "box" that suggests a wave bearing or any other small parts used to move a valve.

"Could that black thing possibly just be a large fastener, like for the engine cover? Because on my exhaust manifold, there was also a rubber holder in that exact area..."

Ulf is right; it's the lower part of the upper mounting point of the nice black cover. It also came apart on my car during the second assembly, and since then I've had to detach it individually because it's a bit oddly assembled.

um...

'However, the engine cover on my AWX Passat is only secured with 3 screws at the top... Is this perhaps a change that was made on the newer models with the 96 kW engines?'

"On the Passat, it's screwed in, but on my Golf, this thing is simply plugged in at the front and back onto these strange plastic rubber mounts. If you pull out the oil dipstick and then give it a firm tug, you can hold the whole thing in your hand (Golf 1J). I assume that it works exactly the same way on all PD engines in the Golf, since the caps are all the same."

.... long live the developers...

However, I find the Passat solution to be three times better, even though it can sometimes be annoying.

I would prefer the ready-made solution.

If even HE can't manage to detach himself on his own...

It's incredibly useful when you want to watch something quickly. That annoying screwing thing always gets on my nerves...

CU Gremlin.

Gremlin wrote:

I would prefer the plug-and-play solution... It's incredibly practical when you want to quickly watch something. That damn screwing around always gets on my nerves...

How about the radical solution?
Once you remove the cover and its brackets, you have unrestricted access to the engine.

-> Even my (rather sensitive) better half didn't notice any significant difference in terms of noise with the ALH.

..... to get back to the topic of weight reduction...

ulf wrote:

-> Even my (rather sensitive) better half didn't notice any significant difference in terms of noise with the ALH.

You'll definitely notice it with a PD (presumably referring to a product or device), even my wife complained when I "forgot" to put the cover on.
The PD then sounds like an old Hannomag.

Bertil wrote:

With PD (presumably referring to a product or device), you will definitely notice it... even my wife complained when I "forgot" to put the cover on. The PD then sounds like an old Hannomag.

Well, that's something... with mine, I can barely hear any difference (as I'm used to from Golf and Ibiza models) .
-> I've been driving it ("topless," meaning without the roof) since the Polo was just a few days old, of course.

How about the radical solution?
Once you remove the cover and its brackets, you have unrestricted access to the engine.


Not good; pedestrian safety suffers as a result, and the small crumple zone between the engine and hood is eliminated.
