Air in the braking system, ABS/ESP system test fails

Hi, I've made a big mistake. With my 2003 Leon ARL, I unfortunately emptied the brake fluid reservoir during the bleeding process. This has caused air to enter the ABS/ESP unit. Since refilling and re-bleeding hasn't improved the spongy brake pedal, I'll have to take it to the workshop. There, the pump will be activated electrically, which will bleed the system, and I'll need to quickly refill the reservoir.

My question now: Can the control of the hydraulic unit also be done with VCDS?
Can someone explain the procedure?

Best regards: Ronny

Hello Ronny,

Zitat:

My question now: Can the control of the hydraulic unit also be done with VCDS?

yes, just go to the ABS and perform the basic settings, see:
/viewtopic.php?t=22474

Best regards, Rainer

Thank you, Rainer, there's a lot of traffic here, and I can't sleep either.

dieselschrauber hat folgendes geschrieben:

Hello Ronny, Zitat: My question now: Can the control of the hydraulic unit also be done with VCDS? yes, just go to the ABS and perform the basic settings, see: /viewtopic.php?t=22474 Best regards, Rainer

Hello Dieselschrauber,

after I finally became the owner of my own VCDS software in January and am no longer dependent on a loan, I have a question regarding the hydraulic unit: bleeding after replacing the brake hose on my Passat.

After replacing all brake lines and experiencing a slight loss of fluid, I initially bled the system conventionally using a pressure gauge and 1 bar. However, when I attempted to bleed the system in the 2nd step using VCDS, only an error appeared in the default settings for blocks 1, 2, etc., and I am unable to bleed the system with VCDS (even after reviewing the YouTube videos). No error is stored in the memory.

Could it be that my VCDS software version, DRV 19.6.2, is not compatible?
Since the pedal is still slightly soft, I would still like to perform this step.
Oh, I was able to take a drive with functioning ABS thanks to the snow yesterday.

Thank you for your help, Best regards, Marco

Hi,

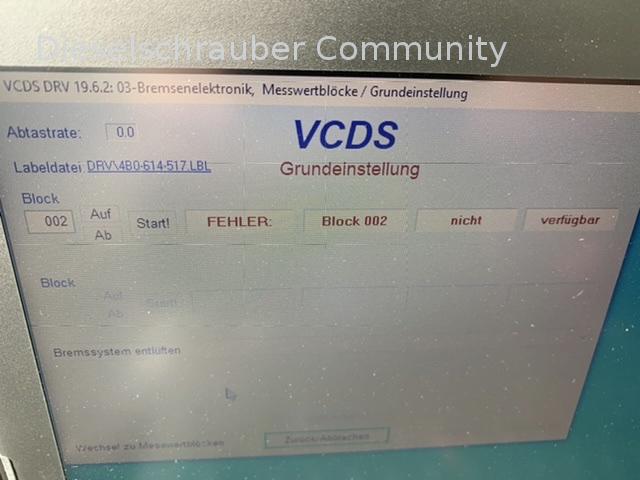

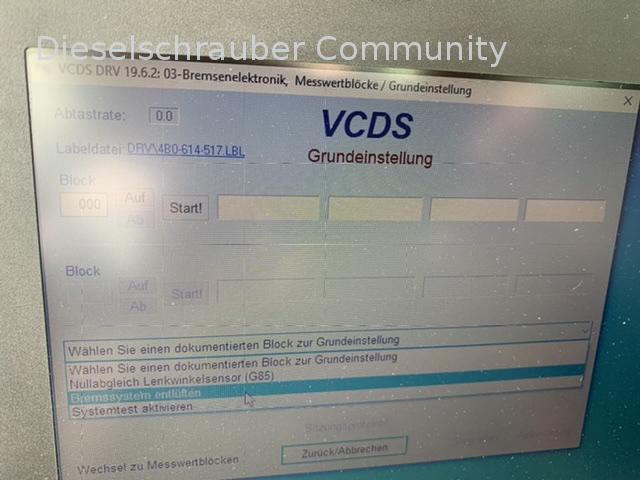

unfortunately, it's not possible to determine the available options in "8226F2F0-8AA9-4EAD-8454-9DAAD74AD2EF.jpeg".

The specific options available are determined by the individual control unit, not VCDS.

Please provide a readable Screenshot of the available options in your brake control unit and a vehicle scan.

Best regards, Rainer

Schraubenabreisser hat folgendes geschrieben:

Hi, Unfortunately, it is not possible to determine the available options in "8226F2F0-8AA9-4EAD-8454-9DAAD74AD2EF.jpeg". The specific options available are determined by the individual control unit and not VCDS. Please provide a readable Screenshot of the available options in your braking control unit and an Autoscan. Best regards, Rainer

[/quote]

Copy the following text to scan:

Additionally, you must first complete the system function test for the brake control unit. -> Drive around and lightly to heavily brake.

I will focus on the brake control unit system function test today or tomorrow. Thank you in advance for this information.

Here is the car scan, unfortunately with some errors and likely a faulty VP44.

VCDS
Windows-based VAG/VAS emulator running on Windows 10 x64
VCDS version: DRV 19.6.2 Data status: 20191020 DS308.0
www.Ross-Tech.de
Dealer/Workshop name:
Operating number: 000 00000 000000
Self-diagnosis log
Sunday, 01, March, 2020, 15:14:25:14233
Vehicle Identification No.: WVWZZZ3BZ4E185856 Vehicle registration: -
Odometer: 294760km Repair order: 03/20
Vehicle type: 3B (3B - VW Passat B5 (1997 > 2005))
Scan: 01 02 03 08 15 16 17 19 35 36 37 46 47 55 56 57 58 75 76 77
Vehicle Identification No.: WVWZZZ3BZ4E185856 Odometer: 294760km
-------------------------------------------------------------------------------
Address 01: Engine Electronics Label file: DRV\059-907-401-AKE.clb
Part number: 8E0 907 401 J
Part: 2.5l/4VTEDC G000AG 0005
Coding: 03006
Operating number: WSC 05314
VCID: 2C141A60DE3CAE2F2A-4AE0
Subsystem 1 - Part number: 00006059
Part: 130 106LC 106LCV79820195390
WVWZZZ3BZ4E18586 VWZ7Z0C8517387
1 Fault found:
00550 - Injection start regulation
08-00 - Regulation limit exceeded
Readiness: 0 0 X X X
-------------------------------------------------------------------------------
Address 02: Gearbox Label file: DRV\01V-927-156.lbl
Part number: 8D0 927 156 EA
Part: AG5 01V 2.5lTDI RdW 2223
Coding: 01101
Operating number: WSC 05311
VCID: 70ACCE1032948ACF56-5118
1 Fault found:
18265 - Load signal
P1857 - 35-10 - Error message from engine control unit - Sporadically
-------------------------------------------------------------------------------
VCDS
Self-diagnosis log
Sunday, 01, March, 2020, 15:14:25:14233
Page 2
Vehicle Identification No.: WVWZZZ3BZ4E185856 Vehicle registration: -
Address 03: Brake Electronics Label file: DRV\4B0-614-517.lbl
Part number: 4B0 614 517 H
Part: ABS/ESP all wheel 3428
Coding: 04457
Operating number: WSC 05311
VCID: 2600E848C0D0947FFC-51A8
1 Fault found:
01486 - System function test activated
35-00 - -
-------------------------------------------------------------------------------
Address 08: Climate/Heating Electronics Label file: DRV\3Bx-907-044.lbl
Part number: 3B1 907 044 J
Part: CLIMATRONIC B5GP 0006
Coding: 17000
Operating number: WSC 05314
VCID: 2C141A60DE3CAE2F2A-4AE0
Subsystem 1 - Part number: 1C1959801
Part: 8S Tõrsteuer.FS KLO 0202
Subsystem 2 - Part number: 1C1959802
Part: 8S Tõrsteuer.BF KLO 0202
Subsystem 3 - Part number: 1C0959811
Part: 8S Tõrsteuer.HL KLO 0202
Subsystem 4 - Part number: 1C0959812
Part: 8S Tõrsteuer.HR KLO 0202
2 Faults found:
01135 - Interior monitoring sensors
36-00 - Short circuit to earth
00928 - Central locking driver side (F220)
27-10 - Implausible signal - Sporadically
-------------------------------------------------------------------------------
VCDS
Self-diagnosis log
Sunday, 01, March, 2020, 15:14:25:14233
Page 4
Vehicle Identification No.: WVWZZZ3BZ4E185856 Vehicle registration: -
Address 47: Sound system Label file: DRV\1J0-035-456.lbl
Part number: 1J0 035 456 J
Part: Sound processor 3 0002
Coding: 00611
Operating number: WSC 32433
VCID: 2C141A60DE3CAE2F2A-4AE0
No fault codes found.
-------------------------------------------------------------------------------
Address 55: Headlight washer Label file: DRV\4Z7-907-357.lbl
Part number: 4Z7 907 357
Part: dynamic headlight D09
Coding: 00008
Operating number: WSC 05311
VCID: 044492C0162C866F82-4AE0
No fault codes found.
-------------------------------------------------------------------------------
Address 56: Radio Label file: DRV\3B0-035-186.lbl
Part number: 3B0 035 186 D
Part: Radio BNO 0102
Coding: 00400
Operating number: WSC 70599
VCID: 200CFE50A2F47A4F86-4AC2
2 Fault codes found:
00852 - Speaker front
36-00 - Short circuit to earth
00853 - Speaker rear
36-00 - Short circuit to earth
-------------------------------------------------------------------------------
Address 76: Parking aid Label file: DRV\3B0-919-283.lbl
Part number: 3B0 919 283
Part: Parking system PA RDW D01
Coding: 01114
Operating number: WSC 05314
VCID: 6582AF44FD565F6735-5118
No fault codes found.
End--------(Duration: 04:02, Battery voltage start/end: 13.9V/14.2V

Hello,

Have you now completed the system function test?
Was the control unit login performed BEFORE the bleeding attempt?

Best regards, Rainer

Hello,

Unfortunately, the system function test is not yet complete.

Driving with the initially illuminated ABS and subsequent braking attempts only caused the ABS light to go out, but subsequent braking with ABS did not help to complete the test according to the diagnosis.

I have not yet performed a re-bleeding.

I will take some more time tonight and try again ;-)

Thank you for your inquiry.

Hi,
You need to perform the test correctly, for example, as shown here:
/viewtopic.php?t=26751 or
http://wiki.ross-tech.com/wiki/index.php/ESP_System_Function_Test
It is important to build up pressure at the beginning and to perform subsequent driving maneuvers with curves.
hg
Herbert

Hello,

Thank you for the tip, I will address this again according to the guidelines tomorrow, as I am unable to do so today. I will, of course, provide feedback when I have completed it.

Best regards,
Marco

And having to repeat the process multiple times, as I experienced myself with the Passat 3B and 3BG 4-Motion...

Hello everyone,

thanks for the information. Yesterday, I was able to work on the topic again for an hour. Unfortunately, there were no changes except that my car now has an off-road design, thanks to the unpaved area and countless puddles.

I followed the good instructions, and I'll describe my process. I'm sure I made a small mistake somewhere, even after 20 repetitions.

-Connect VCDS to check if the system test is still active
-Turn ignition on, start engine (I have an automatic, gear P)
-VCDS shows message: ABS/ESP light and warning sound
-VCDS finished
-Both symbols are still lit
-Press brake pedal with increased pressure, ESP deactivates
-Select gear D and accelerate to 20kmh
-Maintain speed and turn steering wheel 90 degrees
-Perform a circle at over 20km/h until ABS deactivates
-Stop and re-scan, unfortunately no success
-Repeated multiple times, driving left, sometimes right, sometimes with a 180-degree steering wheel position, unfortunately so far unsuccessful ;-(

Maybe you have another idea on how to reach my goal, or can find an error in the process?

Thanks,
Marco

Hello,

You seem to lack patience. I once had this mode in an A3 8L and had to drive around for some time.

Anyway, I learned from that experience not to activate any test modes carelessly. 8)

Best regards, Rainer
