DPF error - 19226 - Particulate filter Bank 1 P2002

Hallo allerseits,

habe seit letzter Woche Fehlermeldung welche immer wieder auftaucht.
Kann mir jemand helfen die Fehlermeldung zu interpretieren.
DPF scheint noch in Ordnung zu sein , Regeneration findet wie schon immer alle 500Km. statt.
Gefahren wird ausschließlich Langstrecke 1000 Km. die Woche, davon 90% Autobahn.
Differenzdruck bei 80% last erscheint mir zu niedrig.
Liege ich richtig in der Annahme dass der Fehler möglicherweise auf defektes Differenzdrucksensor deutet ?

Audi A4 B8 2.0 TDI 110KW. Motor CSUA BJ 2015


Vielen Dank im Voraus.

Eigendiagnoseprotokoll Mittwoch,09,November,2022,19:07:10:60014
Fahrzeug-Ident.-Nr.: WAUZZZ8K6FA178809
KFZ-Kennzeichen:
Kilometerstand: 220524
Reparaturauftrag:

Steuergerät-Teilenummer: 04L 906 021 BS HW: 04L 907 309
Bauteil und/oder Version: R4 2,0L EDC H23 8465
Codierung: 12194012243401080000
Betriebsnummer: WSC 06325 000 00000 ASAM
Datensatz: EV_ECM20TDI01104L906021BS 002005 (AU48) VCID: 77AAE9A08F43E253FE6-8022
19226 - Partikelfilter Bank 1
P2002 00 [101] - Fehlfunktion
unbestätigt - geprüft seit letzter Löschung Umgebungsbedingungen:
Fehlerstatus: 00000001
Fehlerpriorität: 2
Fehlerhäufigkeit: 3
Kilometerstand: 220335 km


Datum: 2022.11.09
Zeit: 05:50:31
Motordrehzahl: 1777.50 /min
Normierter Lastwert: 83.5 %
Fahrzeuggeschwindigkeit: 98 km/h
Kühlmitteltemperatur: 66 °C
Ansauglufttemperatur: 58 °C
Umgebungsluftdruck: 990 mbar
Spannung Klemme 30: 14.580 V
Verlernzähler nach OBD: 40
Abgasmassenstrom der Niederdruck-AGR: berechnet: 3.044
Differenzdruckverhältnis: Niederdruck AGR: 39.4 kg/h
Abgasrückführung 2: Differenzdruckgeber 1 Bank 1: ad. Wert:73.8hPa
Abgasrückführung 2: Differenzdruckgeber 1 Bank 1: Rohwert: 73.3 hPa
Abgasklappensteller 1 Bank 1: Lagerückm. - Istwert: 88.07 %
Abgasrückführungsventil 2 Bank 1: Lagerückm. - Istwert: 97.27 %
Abgasrückführung 2: Differenzdruckgeber 1 Bank 1: dyn. Wert: 73.8 hPa[/u]

Customer data, car scanning?

Hello Reiner,

I am uploading the log file now.
What do you mean by "customer data"?
Customer number?
Is the order number (17216) sufficient?

Hello,

If the email address is the same as in the order, it will be automatically recognized as a customer. I have taken care of that for you.

First, I would like to check the measurements for G450 (exhaust gas sensor 1) and G505 (differential pressure sensor) and verify their plausibility.

There is a topic regarding the differential pressure on the DPF.
<a href="viewtopic.php?t=24222">Normalwerte für den Differenzdruck des DPF</a>
, so kann man schon ein Gefühl für die erwarteten Werte bekommen.

Wenn Zündung an und Motor aus, sollte der Differenzdruck etwa 0mbar sein.

Auch solltest Du die Schläuche und elektrischen Anschlüsse der Sensoren prüfen (z.B. durch Marderschäden).

Mit etwas Glück hast Du bereits die Ursache gefunden, z.B. einen defekten Sensor oder dessen Anschluss. Überprüfe das zuerst.

Siehe auch:
<a href="viewtopic.php?t=27732">Calibrate / Adjust Pressure Sensor (TDI/DPF)</a>

For general understanding: Search on Google for "ssp514 download" :wink:

Best regards, Rainer

Dear Reiner,

especially for your reading.
Let's see what we can find, I'll get back to you as soon as I find something, or if any questions arise.

Best regards,
Witalij.

Hi Witalij,

I hope I've spelled your name correctly. The personal address should be correct in our conversations. You're writing to Rainer...
Best regards,
Herbert

I didn't even notice, it happened.

[quote="Herbert"]Hi Witalij,
I hope I've spelled your name correctly. The personal address should be correct in our conversations. You're writing to Rainer...
Best regards,
Herbert[/quote]
Hello Herbert,
thanks for the tip, I honestly needed a little time to figure out what you meant, but then I realized I was just talking to myself.
Hopefully, I at least provided some entertainment.

Best regards

Hello everyone,

I wanted to briefly report on the current situation.

When I went to check the sensors on Sunday, I noticed that someone had already been messing around with them. One of the sensors had already been replaced, and the hose clamps had been removed.

So, I first swapped the sensors around and, lo and behold, there were no error messages anymore. It seems that the control unit can tolerate larger deviations in values with the G450 sensor than with the G505.

Tomorrow, a new sensor will be installed, and hopefully, everything will be back to normal then.

Thanks for the feedback!

Hello everyone,

unfortunately, it seems the issue hasn't been resolved - it would be too easy.

I've just reviewed the log and found that the "Exhaust Gas Backflow Valve" data is showing implausible values in relation to the expected values, which is confusing.

Unfortunately, I don't have any comparison values or typical values to help me understand this behavior. Could someone please take a look at the log to see if this is normal?

Best regards,
Witalij

Hello,

The inventory feedback sometimes works, sometimes not at all. I suspect a defect or a loose connection. Could it be damage from marten or a short circuit in the sensor's operating voltage?

Best regards, Rainer

[quote="dieselschrauber"]Hello,

The inventory return sometimes works, sometimes not at all. I suspect a defect or a loose connection. Could it be damage from badgers or a short circuit in the sensor's operating voltage?

Best regards, Rainer[/quote]
Thank you,

let's see if we can find anything, a loose connection can really stress everyone out before it's found.
Is it known how the position signal is implemented? Potentiometer?

Hello everyone,

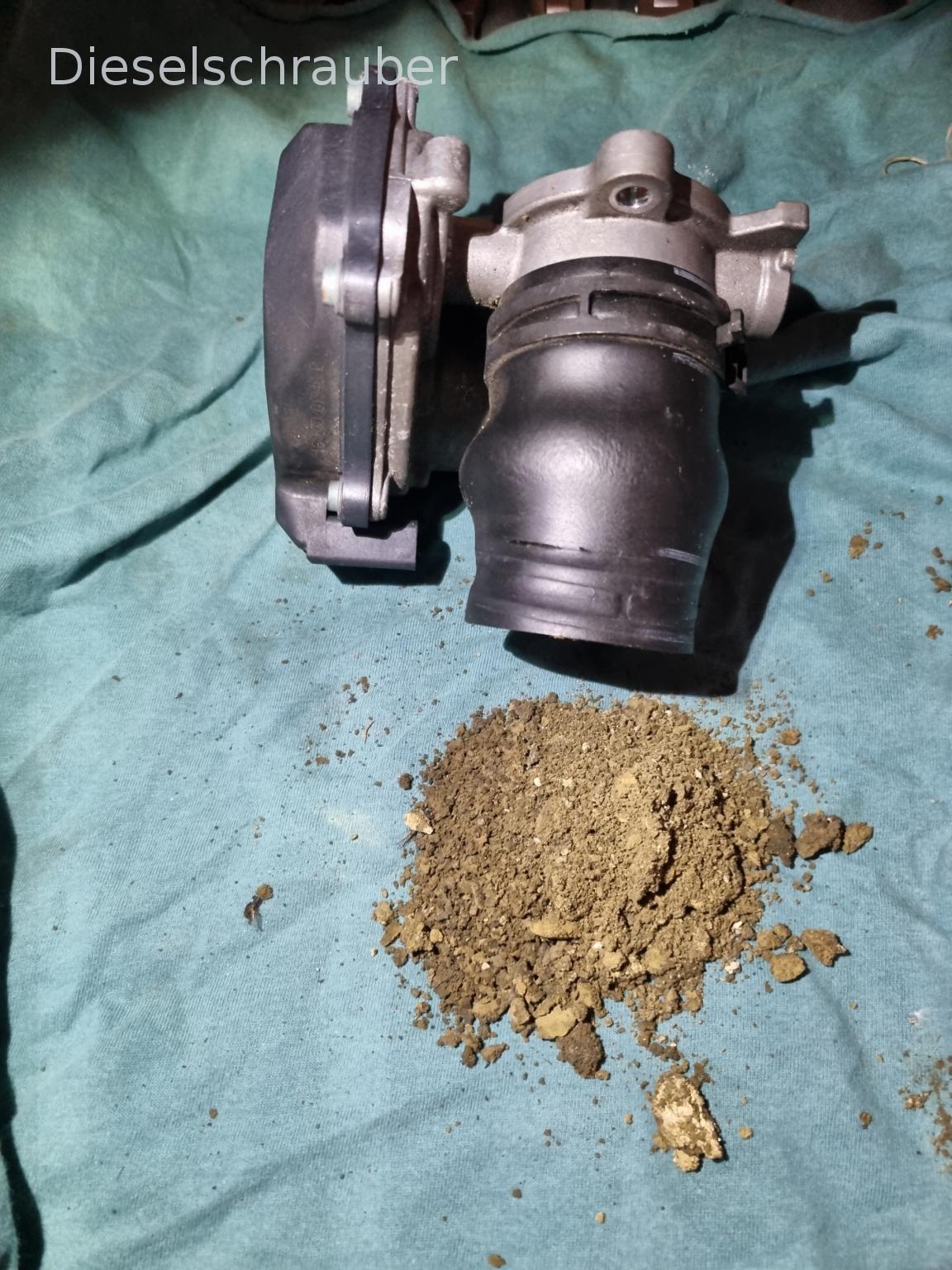

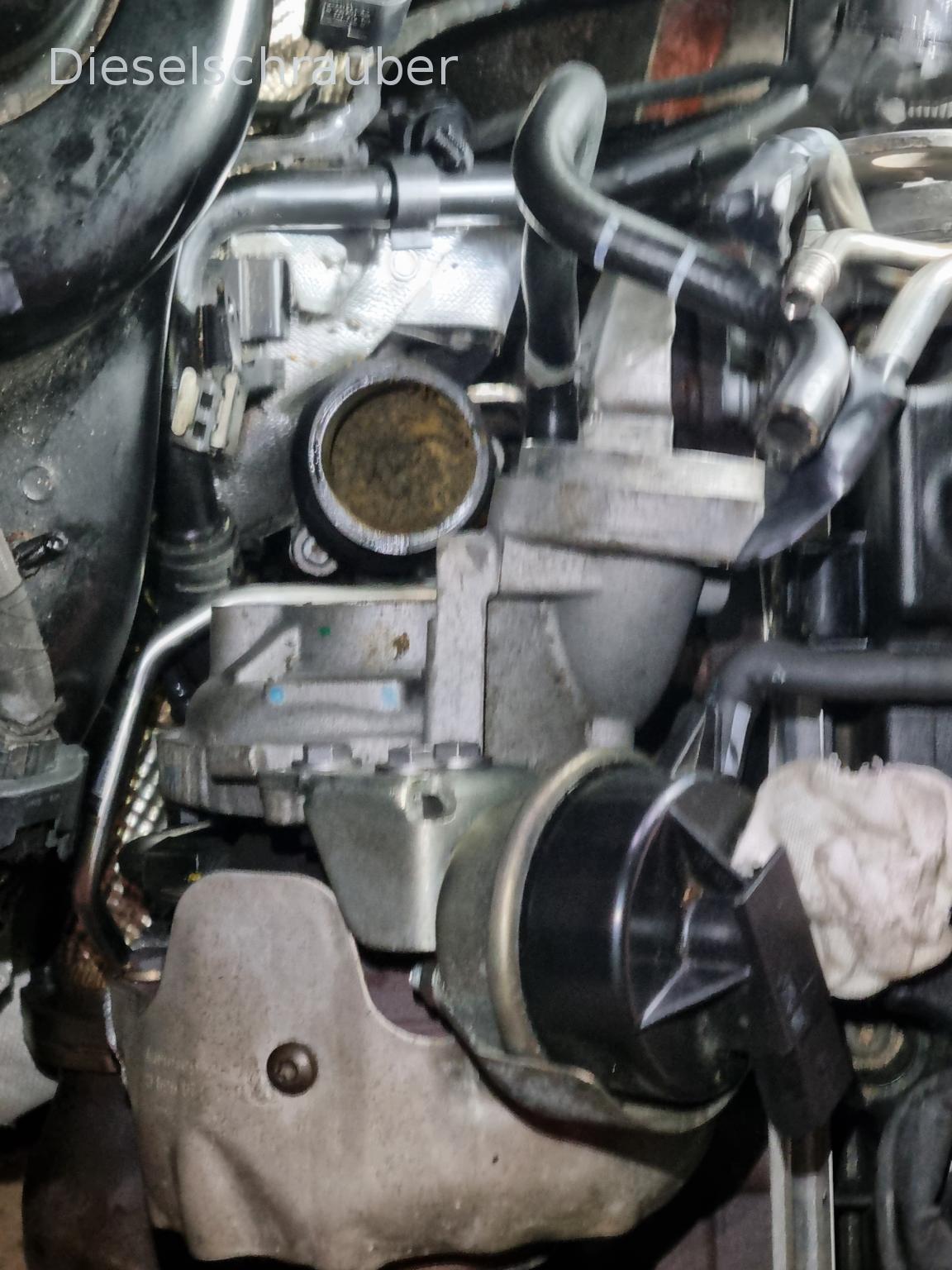

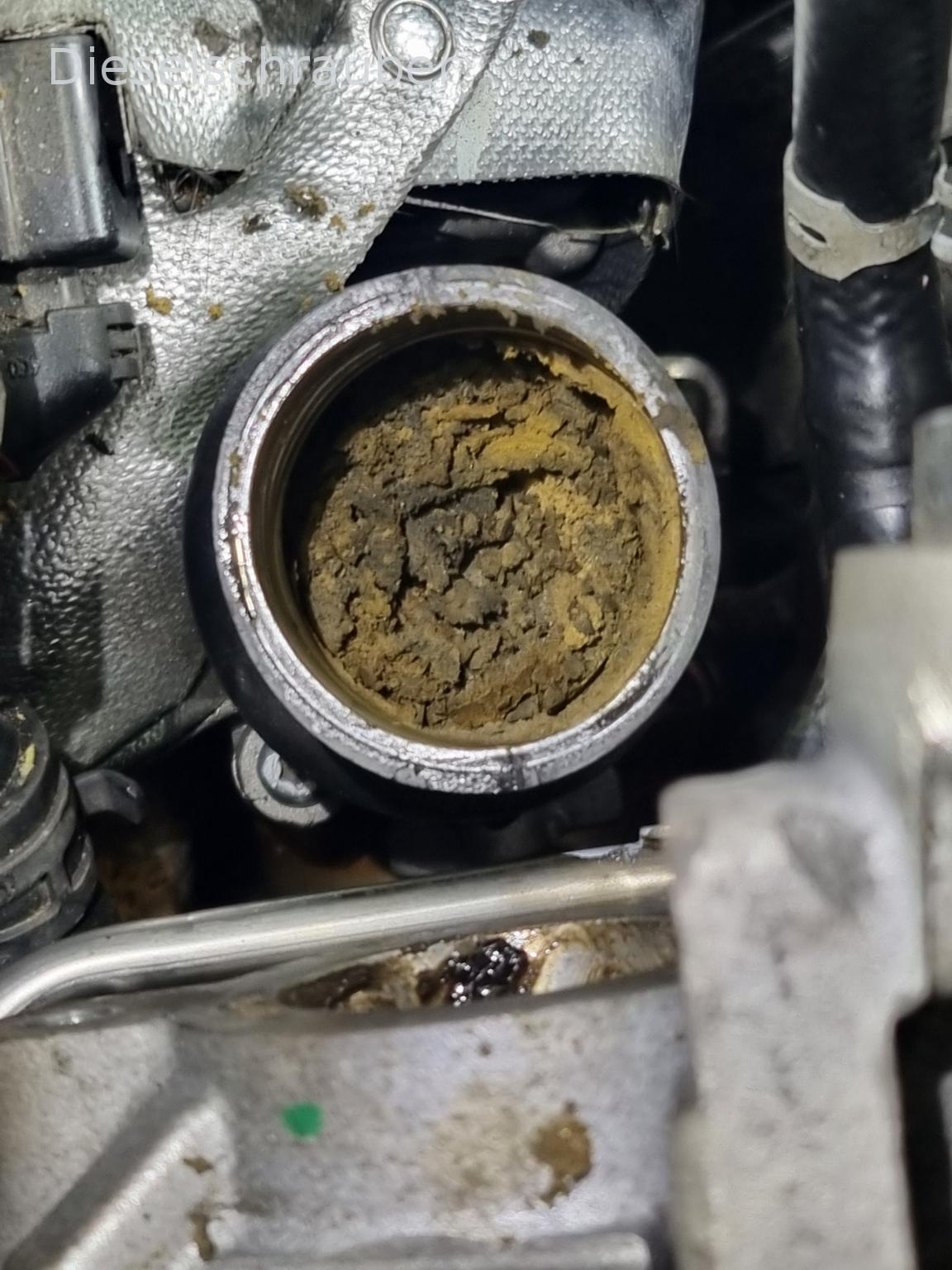

after a long search, the culprit has finally been found and the errors have been fixed. The workload is enormous, approximately 25-30 hours (including the timing belt).

Instead of describing the errors, I'm simply uploading pictures, as pictures are known to say more than a thousand words.

Hi,

Feedback is always welcome! If the problem could also be solved, all the better
Then the interested reader can learn about the measures that were taken.

:thanks:

Regards, Richard

Hi,
I'm actually curious to know what this is.
hg
Herbert
