Vehicle/model not supported


New Topic Reply 🔗 🖨 Dieselschrauber - Index » On-Board Diagnostics (OBD)
Author Message
phil_g



Joined: 12/17/2023
Posts: 4
Karma: +4 / -0   Thank you, like it!


Premium Support

Post17-12-2023, 19:44    Subject: Vehicle/model not supported Quote

Good day.

I've had a HEX-V2 for a few years now, which I acquired as part of a hardware upgrade. I haven't used the device much, but I wanted to get it working again because I recently acquired a new vehicle.
On my Windows 11 laptop, I have installed the latest version of VCDS (downloaded from the dieselschrauber shop).

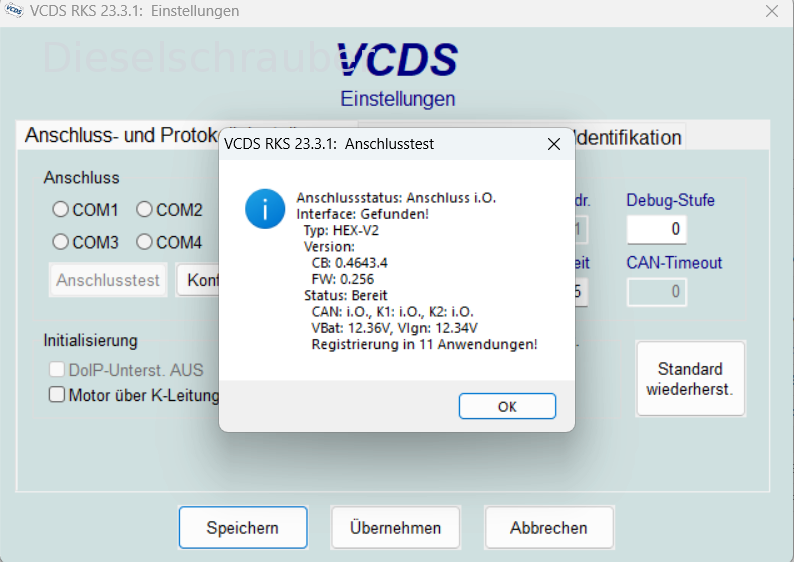

When I run the connection test, it shows that everything is okay.

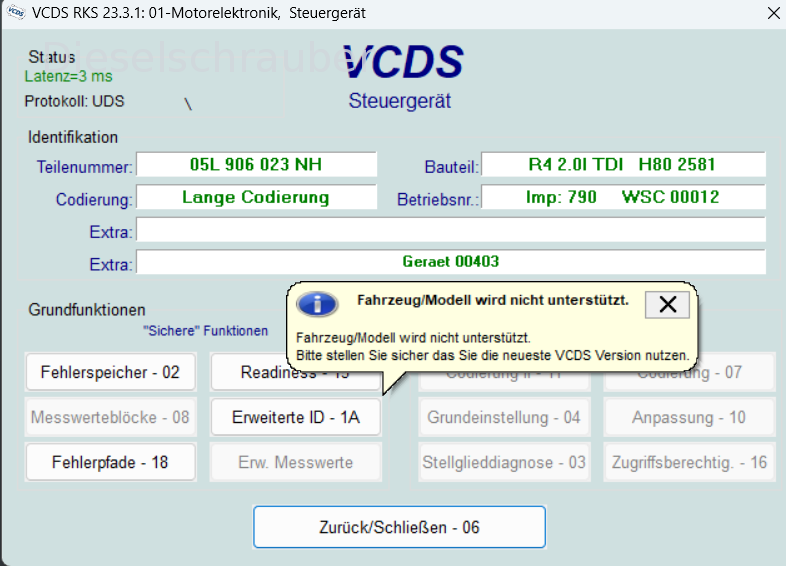

However, when I click on a control unit, I am shown a message indicating that the vehicle/model is not supported.

My vehicle is a VW T6.1 California MJ20232024.

What could be the reason for that?

Thank you in advance for your help.

Best regards.
philipp



 Description:
 Vehicle/model not supported
 File size:  131.36 KB
 Viewed:  1337 times



 Description:
 Vehicle/model not supported
 File size:  123.71 KB
 Viewed:  1234 times


Back to top Profile PM
Rüdi
Profi-Schrauber
Profi-Schrauber


Joined: 03/05/2005
Posts: 1506
Karma: +641 / -0   Thank you, like it!
Location: Nord/Osthessen
2001 Audi A4 Avant
Premium Support

Post17-12-2023, 20:11    Subject: Vehicle/model not supported Quote

Is VCDS blocked by some kind of firewall?
Sommer: A4 B5 Avant 2,5 TDI Quattro Facelift (AKN silber)

Wartet auf H Kennzeichen: A4 B5 Avant 1.9 TDI Quattro (AFN Schwarz)

Winter: A4 B5 Avant TDI Quattro (AFN rot)

Alltags Spardose: Audi A2 1.4 TDI (AMF Silber)
Back to top Profile PM Garage
dieselschrauber
Administrator
Administrator
Avatar-dieselschrauber

Joined: 04/12/2002
Posts: 17993
Karma: +782 / -0   Thank you, like it!
Location: St.Gallen
2018 Volkswagen T6 Consumption


Post17-12-2023, 20:12    Subject: Vehicle/model not supported Quote

Hello,

Please be patient. Ross-Tech can't be faster than the model's developers. X

If you want to help with vehicle support, a first step would be to perform a vehicle scan and post the results here.

Best regards, Rainer.
PS: Your email forwarding through multiple hosts does not work with DMARC/DKIM, and therefore emails may not be delivered.
Dipl.-Ing. (FH) Rainer Kaufmann - dieselschrauber VCDS Shop


Last edited on 17-12-2023, 20:20, edited 1 time in total.
Back to top Profile PM WWW Garage
Herbert
Profi-Schrauber
Profi-Schrauber


Joined: 06/22/2005
Posts: 4586
Karma: +1319 / -0   Thank you, like it!


Premium Support

Post17-12-2023, 20:33    Subject: Vehicle/model not supported Quote

Hi,
MJ 2023 refers to models manufactured from July 2022. VCDS 23.3 should theoretically already be able to handle that. A message from VCDS indicating that data for specific control modules is not available, I would have understood. Are other control modules accessible? A car scan would be important.
Is Windows 11 playing a trick here?
Does VCDS 23.11 from Ross-Tech work (downloadable from their website, and it's in English)?
hg
Herbert.
Horch A4 8K CJCD
Golf 7 DDYA
(+ Audi 80 Avant B4 1Z 475Tkm - habe ich vom ersten bis zum letzten Tag gerne gefahren)
(+ Passat Variant 32B CY 400Tkm)


Last edited on 17-12-2023, 20:35, edited 1 time in total.
Back to top Profile PM
phil_g



Joined: 12/17/2023
Posts: 4
Karma: +4 / -0   Thank you, like it!


Premium Support

dieselschrauber likes this.
Post21-12-2023, 19:53    Subject: Vehicle/model not supported Quote

Hello everyone.

Thank you very much for your prompt replies.
The vehicle is approximately 1.5 months old. I don't know if any new control units or other components were installed.
I have attached the Autoscan report, which I just ran.

Thank you in advance for your support.

Best regards.
philipp

P.S.: @rainerViewing profile: rainer: Thanks for the tip regarding email forwarding.



Log-WV2ZZZ7HZRH022252_20231221_1844.txt
 Description:
 Vehicle/model not supported
Vehicle/model not supported
Download
 File name:  Log-WV2ZZZ7HZRH022252_20231221_1844.txt
 File size:  17.78 KB
 Downloaded:  422 times
Back to top Profile PM
Herbert
Profi-Schrauber
Profi-Schrauber


Joined: 06/22/2005
Posts: 4586
Karma: +1319 / -0   Thank you, like it!


Premium Support

dieselschrauber likes this.
Post21-12-2023, 22:03    Subject: Vehicle/model not supported Quote

Hi,
"It's likely that the Lbl files are missing." Get the latest VCDS version from Ross-Tech.
hg
Herbert.

Edit: Is the vehicle possibly MJ2024? MJ2023 and 1.5 months old are incompatible.
Horch A4 8K CJCD
Golf 7 DDYA
(+ Audi 80 Avant B4 1Z 475Tkm - habe ich vom ersten bis zum letzten Tag gerne gefahren)
(+ Passat Variant 32B CY 400Tkm)


Last edited on 22-12-2023, 5:40, edited 1 time in total.
Back to top Profile PM
phil_g



Joined: 12/17/2023
Posts: 4
Karma: +4 / -0   Thank you, like it!


Premium Support

Post22-12-2023, 10:00    Subject: Vehicle/model not supported Quote

Herbert wrote:
Edit: Is the vehicle possibly MJ2024? MJ2023 and 1.5 months old do not go together.


Hello Herbert.

It's quite possible that it's the MJ2024. I ordered it this year in August, and it was delivered to me in early November 2023.

Sorry for my imprecise statements.

Best regards.
philipp


Last edited on 22-12-2023, 10:01, edited 1 time in total.
Back to top Profile PM
Herbert
Profi-Schrauber
Profi-Schrauber


Joined: 06/22/2005
Posts: 4586
Karma: +1319 / -0   Thank you, like it!


Premium Support

dieselschrauber likes this.
Post22-12-2023, 10:37    Subject: Vehicle/model not supported Quote

It is definitely the 2024 model year, because...
- the model year begins in July of the previous year, so in this case, July 2023;
- In position 10 of the VIN, an "R" is used. icon_idea.gif

hg
Herbert.
Horch A4 8K CJCD
Golf 7 DDYA
(+ Audi 80 Avant B4 1Z 475Tkm - habe ich vom ersten bis zum letzten Tag gerne gefahren)
(+ Passat Variant 32B CY 400Tkm)
Back to top Profile PM
dieselschrauber
Administrator
Administrator
Avatar-dieselschrauber

Joined: 04/12/2002
Posts: 17993
Karma: +782 / -0   Thank you, like it!
Location: St.Gallen
2018 Volkswagen T6 Consumption


Post22-12-2023, 22:24    Subject: Vehicle/model not supported Quote

Hi,

I forwarded the Autoscan data to Ross-Tech for further analysis.

Best regards, Rainer.
Dipl.-Ing. (FH) Rainer Kaufmann - dieselschrauber VCDS Shop
Back to top Profile PM WWW Garage
dieselschrauber
Administrator
Administrator
Avatar-dieselschrauber

Joined: 04/12/2002
Posts: 17993
Karma: +782 / -0   Thank you, like it!
Location: St.Gallen
2018 Volkswagen T6 Consumption


Herbert likes this.
Post22-12-2023, 22:35    Subject: Vehicle/model not supported Quote

Hello,

You can test the English version of VCDS 23.11 (link available in your customer account on the shop).

Best regards, Rainer.
Dipl.-Ing. (FH) Rainer Kaufmann - dieselschrauber VCDS Shop


Last edited on 22-12-2023, 22:36, edited 2 times in total.
Back to top Profile PM WWW Garage
phil_g



Joined: 12/17/2023
Posts: 4
Karma: +4 / -0   Thank you, like it!


Premium Support

dieselschrauber, Hutfahrer and Turbinchen likes this.
Post24-12-2023, 17:21    Subject: Vehicle/model not supported Quote

Hello everyone.

VCDS 23.11 was working.
At least the message that the vehicle/model is not supported no longer appears.

Thank you for your help and happy holidays!
philipp
Back to top Profile PM
werner_



Joined: 01/26/2019
Posts: 2
Karma: +0 / -0   Thank you, like it!
Location: Nürnberg

Free account, no CAN development support

Post13-11-2024, 13:02    Subject: Missing ??? file Quote

Good day.
I also have a vehicle that is not officially supported (Caddy MJ 2024). I had previously submitted a support request regarding this vehicle. However, unlike my previous request, I unfortunately received no response this time. Therefore, here's the car again.
Best regards,



Scan-WV2ZZZSK7SX025764-20241028-1553.txt
 Description:
 Vehicle/model not supported
Vehicle/model not supported
Download
 File name:  Scan-WV2ZZZSK7SX025764-20241028-1553.txt
 File size:  6.39 KB
 Downloaded:  88 times
Back to top Profile PM
dieselschrauber
Administrator
Administrator
Avatar-dieselschrauber

Joined: 04/12/2002
Posts: 17993
Karma: +782 / -0   Thank you, like it!
Location: St.Gallen
2018 Volkswagen T6 Consumption


Post13-11-2024, 16:18    Subject: Re: Missing ??? file Quote

werner_ wrote:
Good day,
I also have a vehicle that is not officially supported (Caddy MJ 2024). I had previously submitted a support request regarding this vehicle. However, unlike my previous request, I unfortunately received no response this time. Therefore, here's the car again.
Best regards

Hello,

Your software is neither ours nor is it up-to-date.

Sure, here's the translation:

"LG" translates to "Best regards" or "Sincerely" in English.
Dipl.-Ing. (FH) Rainer Kaufmann - dieselschrauber VCDS Shop
Back to top Profile PM WWW Garage
werner_



Joined: 01/26/2019
Posts: 2
Karma: +0 / -0   Thank you, like it!
Location: Nürnberg

Free account, no CAN development support

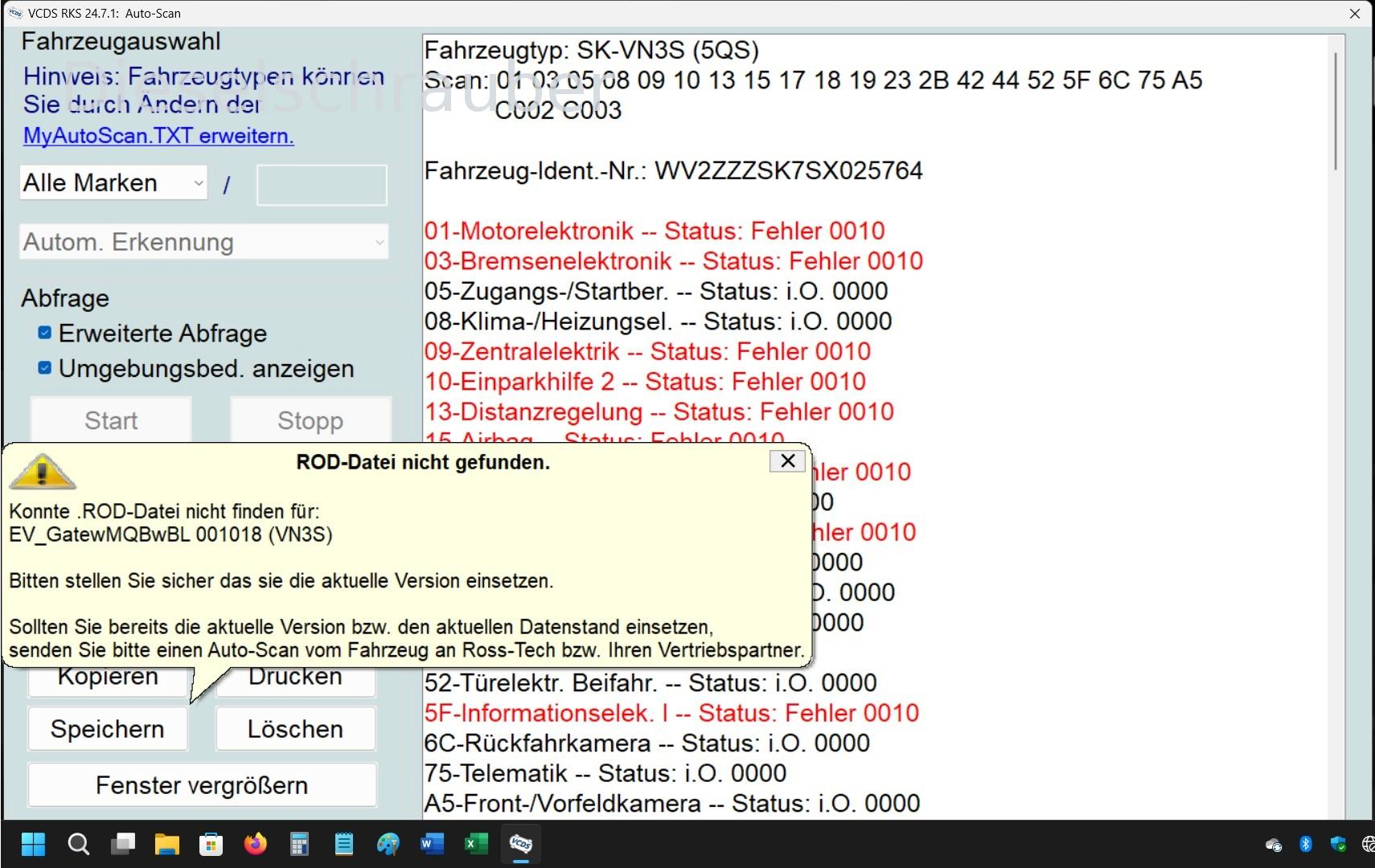

Post14-11-2024, 11:26    Subject: Program rewrite - similar result Quote

Good day.
My attempt today unfortunately also failed.
Sure, here's the translation:

"LG" translates to "Best regards" or "Sincerely" in English.



 Description:
 Vehicle/model not supported
 File size:  439.67 KB
 Viewed:  231 times



Scan-WV2ZZZSK7SX025764-20241114-1001.txt
 Description:
 Vehicle/model not supported
Vehicle/model not supported
Download
 File name:  Scan-WV2ZZZSK7SX025764-20241114-1001.txt
 File size:  7.18 KB
 Downloaded:  88 times
Back to top Profile PM
dieselschrauber
Administrator
Administrator
Avatar-dieselschrauber

Joined: 04/12/2002
Posts: 17993
Karma: +782 / -0   Thank you, like it!
Location: St.Gallen
2018 Volkswagen T6 Consumption


Post14-11-2024, 19:31    Subject: Vehicle/model not supported Quote

See the first part of.
Okay, I'm ready. Please provide the German text you want me to translate.
Dipl.-Ing. (FH) Rainer Kaufmann - dieselschrauber VCDS Shop
Back to top Profile PM WWW Garage
